In today's competitive environment, technology is shrinking components and systems smaller and smaller. At the same time, tolerances are becoming tighter and tighter. For those committed to quality, precision is the watchword. That's why professionals today turn to Torque Watch, as they have for the last fifty years.

The Torque Watch is simple to use, requiring no special tools or setups. Attach the gauge to the device being measured, and simply rotate it, for a direct reading on the clear, easy-to-read dial. There's even protection against over-torque, by a stainless steel internal rotation stop.

Honeywell also has a full recalibration program available. Just return your Torque Watch, and we'll service and recalibrate it, in a system that is traceable to the National Institute of Standards and Technology (NIST).
　

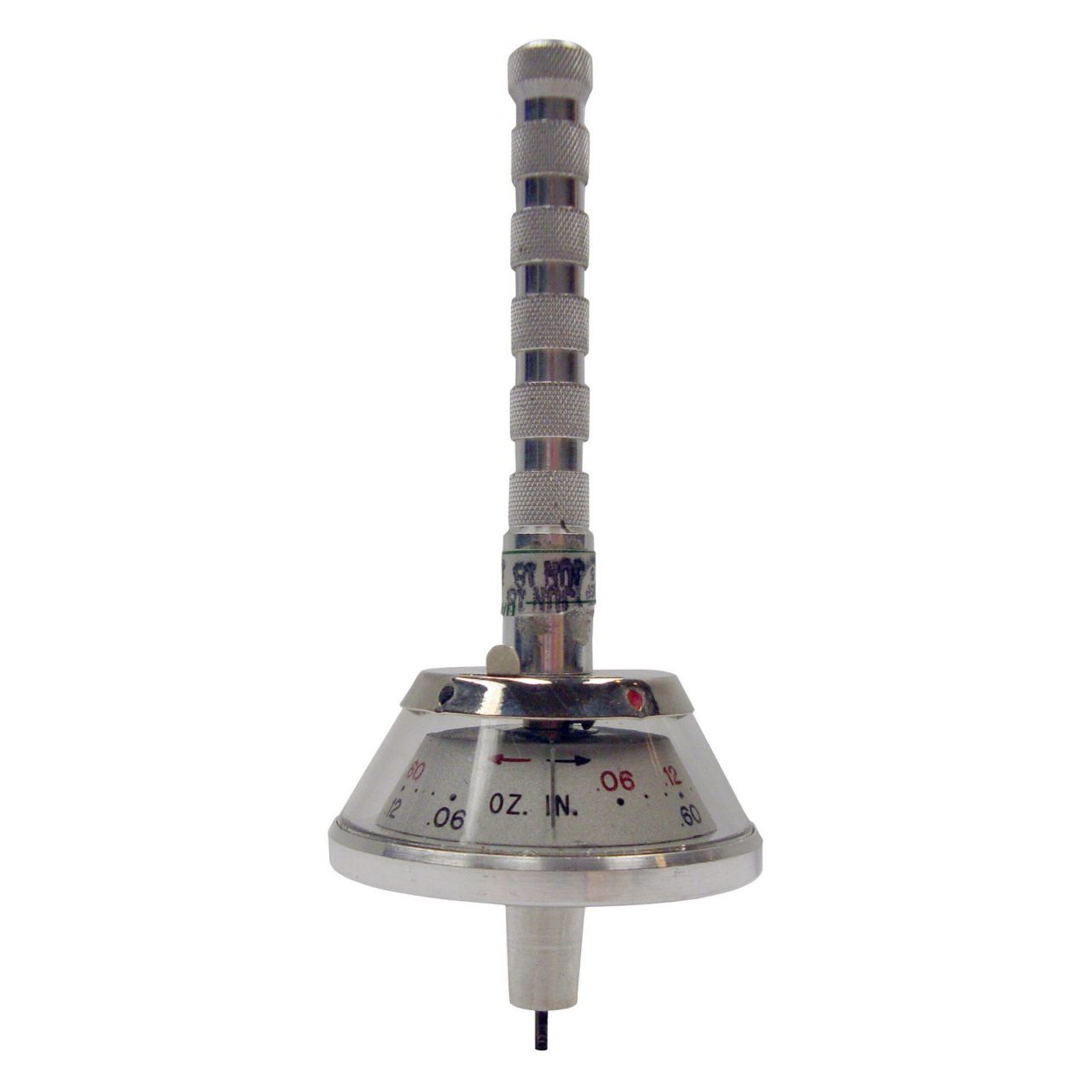

366 Series

Low Range: 0.003 - 0.60 oz/in.

The Series 366 Torque Watch accurately measures very low torque, in values that range form 0.003 to 0.60 oz/in. Three miniature adapter chucks allow simple coupling to the device being measured.

To minimize friction, a calibrated helical spring, shaft, and pointer assembly are mounted in jeweled bearings. The unit can measure torque in either a clockwise or counterclockwise direction. A stainless steel internal rotation stop prevents damage from over-torque up to three times the normal range.

【型錄下載】Download Data Sheet

Choose from nine models that measure torque in the ranges specified in the chart below.

366 Series	Standard		Metric
366 Series	Model	ounce inches	Model	gram centimeter
366-0 Group	366-0	0.06 to 0.6	366-0M	6 to 42
366-2 Group	366-2	0.01 to 0.1	366-2M	1 to 7.5
366-3 Group	366-3	0.003 to 0.03	366.3M	0.2 to 2

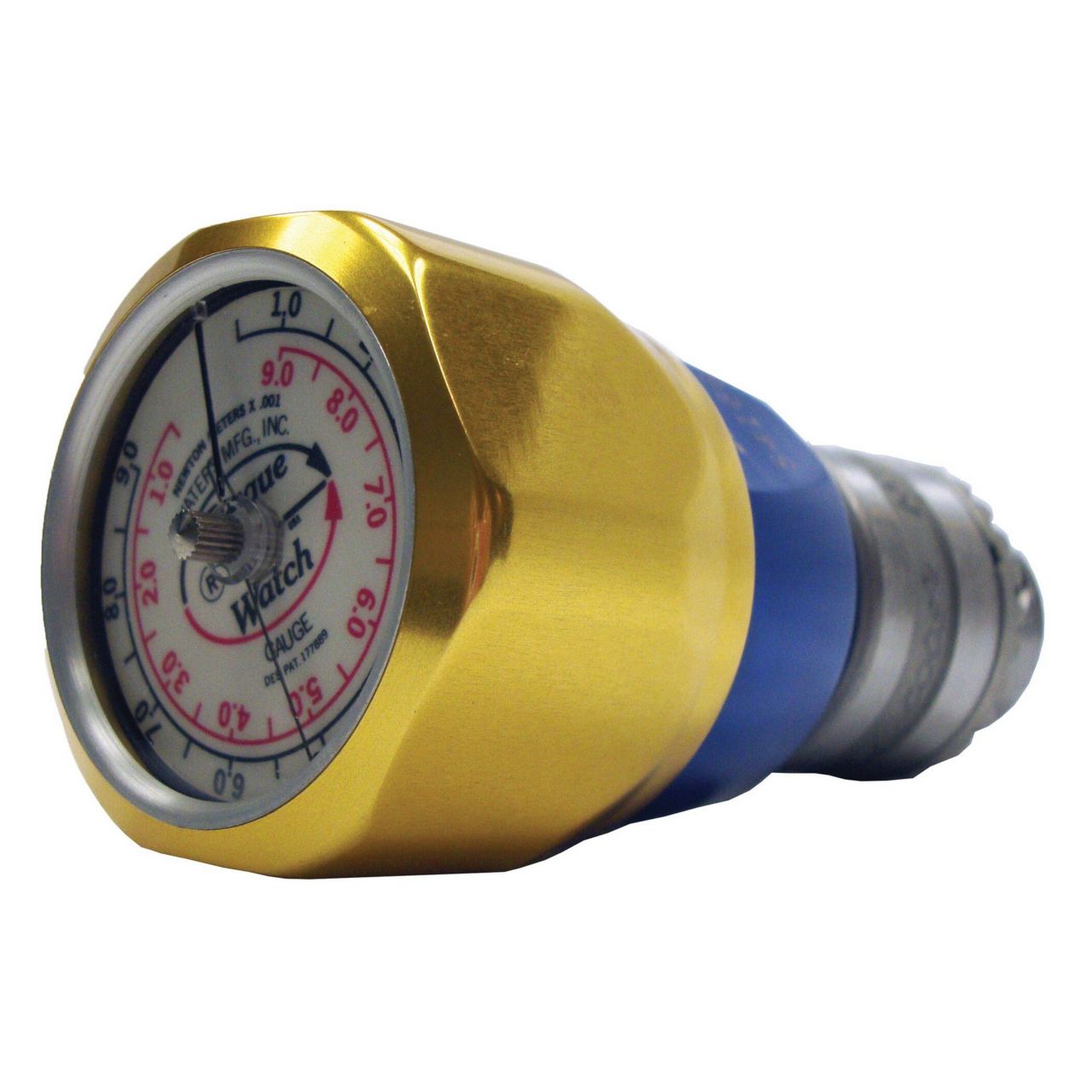

651 Series

Mid Range: 0.05 - 40.0 oz/in.

The Series 651 Torque Watch provides accurate measurements of low static torque in values that range form 0.05 to 40.0 oz/in. A 1/4 inch keyed chuck provides a simple means of coupling to the device under measurement.

The Series 651 utilizes a calibrated spring, shaft, and pointer assembly within a rugged steel and aluminum housing. The unit can measure torque in either a clockwise or counterclockwise direction. Internal stainless steel rotation stops prevent damage from over-torque up to two times the normal range.

【型錄下載】Download Data Sheet

Eighteen models are available in the ranges specified below. Models are also available with metric and S.I. units of measure.
　

651 Series	Standard		Metric		System Int.
651 Series	Model	ounce inches	Model	gram centimeter	Model	newton millimeter
651C-1 Group	651C-1	0.05 to 1.2	651C-1M	2.5 to 80	651C-1SI	0.5 to 9
651C-2 Group	651C-2	1 to 20	651C-2M	50 to 1.2 K	651C-2SI	10 to 140
651C-3 Group	651C-3	2 to 40	651C-3M	150 to 2.8 K	651C-3SI	15 to 285
651X-2 Group	651X-2	0.1 to 2.4	651X-2M	5 to 150	651X-2SI	1 to 18
651X-3 Group	651X-3	0.25 to 5	651X-3M	10 to 300	651X-3SI	2 to 36
651X-4 Group	651X-4	0.5 to 10	651X-4M	25 to 600	651X-4SI	5 to 70

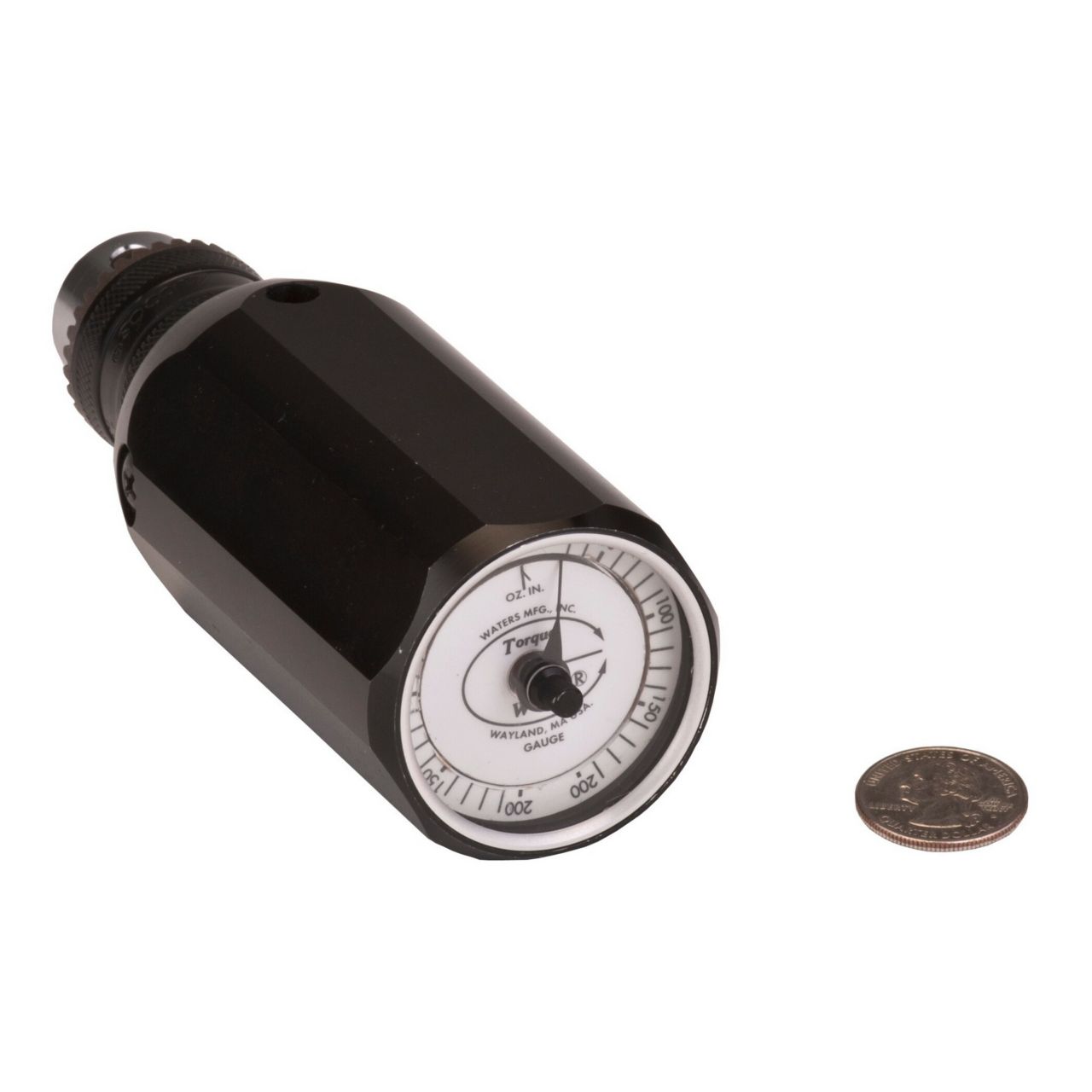

940 Series

High Range: 15.0 - 200.0 oz/in.

The Series 940 Torque Watch accurately measures torque in values that range form 15.0 to 200 oz/in. A 3/8 inch keyed chuck and 3/8 inch square socket driver adapter provides simple means of coupling to the device under measurement.

The Series 940 utilizes a calibrated spring, shaft, and pointer assembly within a rugged steel and aluminum housing. The unit can measure torque in either a clockwise or counterclockwise direction. Internal stainless steel rotation stops prevent damage from over-torque up to two times the normal range.

【型錄下載】Download Data Sheet

Six models are available in the ranges specified below.
　

940 Series	Standard		Metric		System Int.
940 Series	Model	ounce inches	Model	gram centimeter	Model	newton meter
940-0 Group	940-1	30 to 200	940-1M	2.5 K to 14.3 K	940-1SI	0.25 to 1.4
940-1 Group	940-2	15 to 100	940-2M	1 K to 7.1 K	940-2SI	0.1 to 0.7
