Rotary Transformers & Slip Ring Torque Sensor
Rotating Torque Sensor from
Lebow was designed to specifically mount to a NEMA precision
motor frame to provide a convenient method for adding torque
measurement and feedback control to precision motion control
applications. These applications typically involve automated
assembly and test equipment for high volume manufacturing.
Rotating Torque Sensor simple, robust design utilizes
magnetoelastic principles to measure rotary torque with high
accuracy and low cost. This innovative Rotating Torque
Sensor will allow direct torque measurements where it has
been cost prohibitive in the past.
Features include: Overall accuracy of +/- 0.5% full
scale, useable temperature range of -10 to 100ºC, overload
capacity of 150% full scale, and a maximum speed of 10,000
rpm.
【非接觸感應式
扭力計】
|
種類 |
型號 |
圖片 |
描述 |
|
軸端驅動 |
| Non contact |

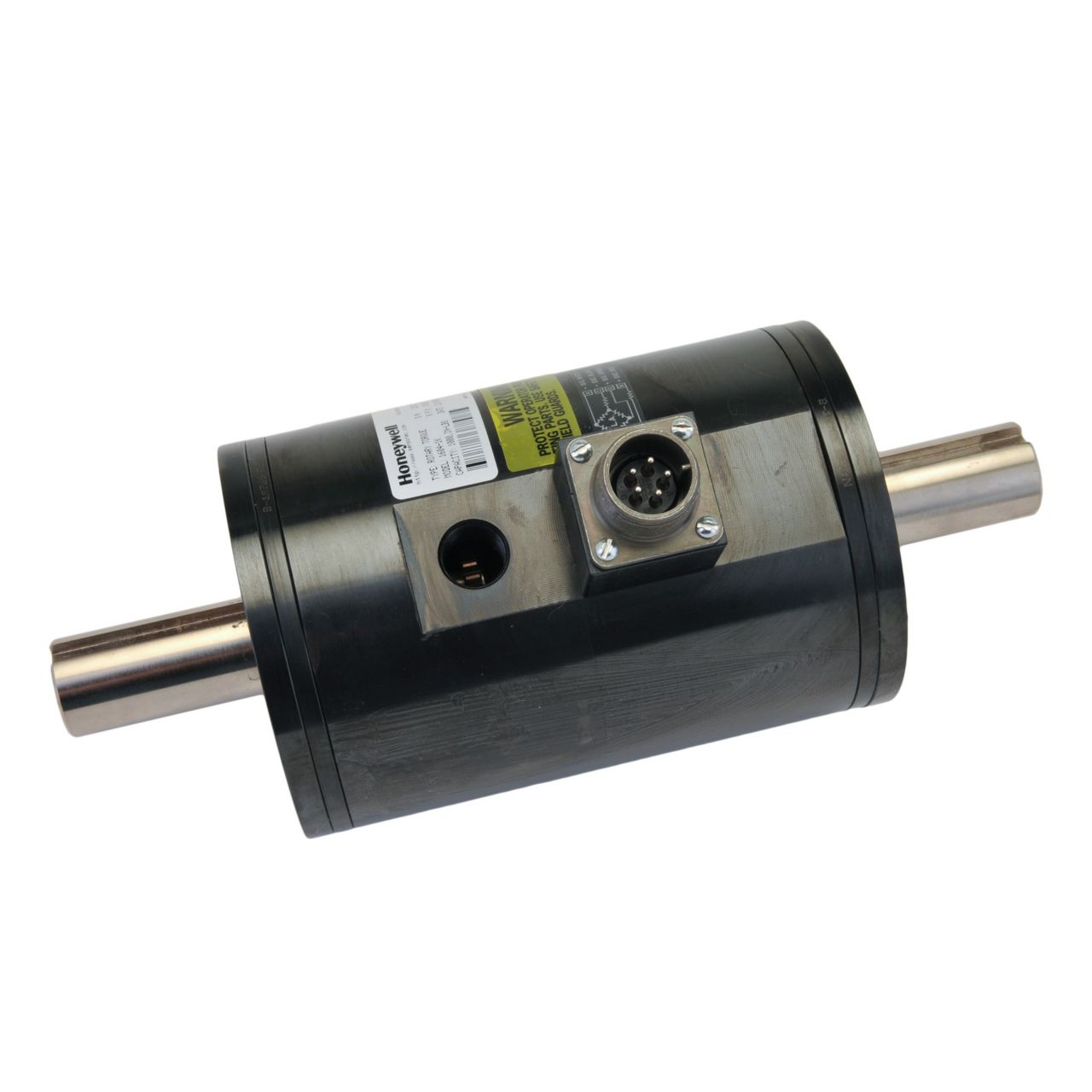

1602, 1604, 1605,
1606, 1607 |
 |
AC strain gage
conditioning required, Capacity Range 50 through
100,000 Pound Inch
【型錄下載】Download Data Sheet |
| High Accuracy |
1804, 1805, 1806,
1807 |
|
High overload
protection with high signal output (sensitivity),
Capacity Range 100 through 100,000 Pound Inch
【型錄下載】Download Data Sheet |
|
圓盤式 |
| Extended Speed Range |
1641, 1648 |
 |
Flange drive for use
when short length is mandatory.
【型錄下載】Download Data Sheet |
|
Spline Drive |
| Military Pump Torque
Sensor |
1615K |
 |
Made to support
heavy pumps and motors
【型錄下載】Download Data Sheet |
| High Accuracy |
1815 |
|
Made to support
heavy pumps and motors
【型錄下載】Download Data Sheet |
|
放大輸出式 |
| Non contact |
1700, 1701, 1702,
1703, 1706 |
 |
On board
amplification, compact design, Capacity Range: 0.02
Newton Meter through 1,500 Newton Meter
【型錄下載】Download Data Sheet |
【滑環碳刷式扭力計】
|
種類 |
型號 |
圖片 |
描述 |
|
軸端驅動 |
| Accurate "in-line"
torque measurements |

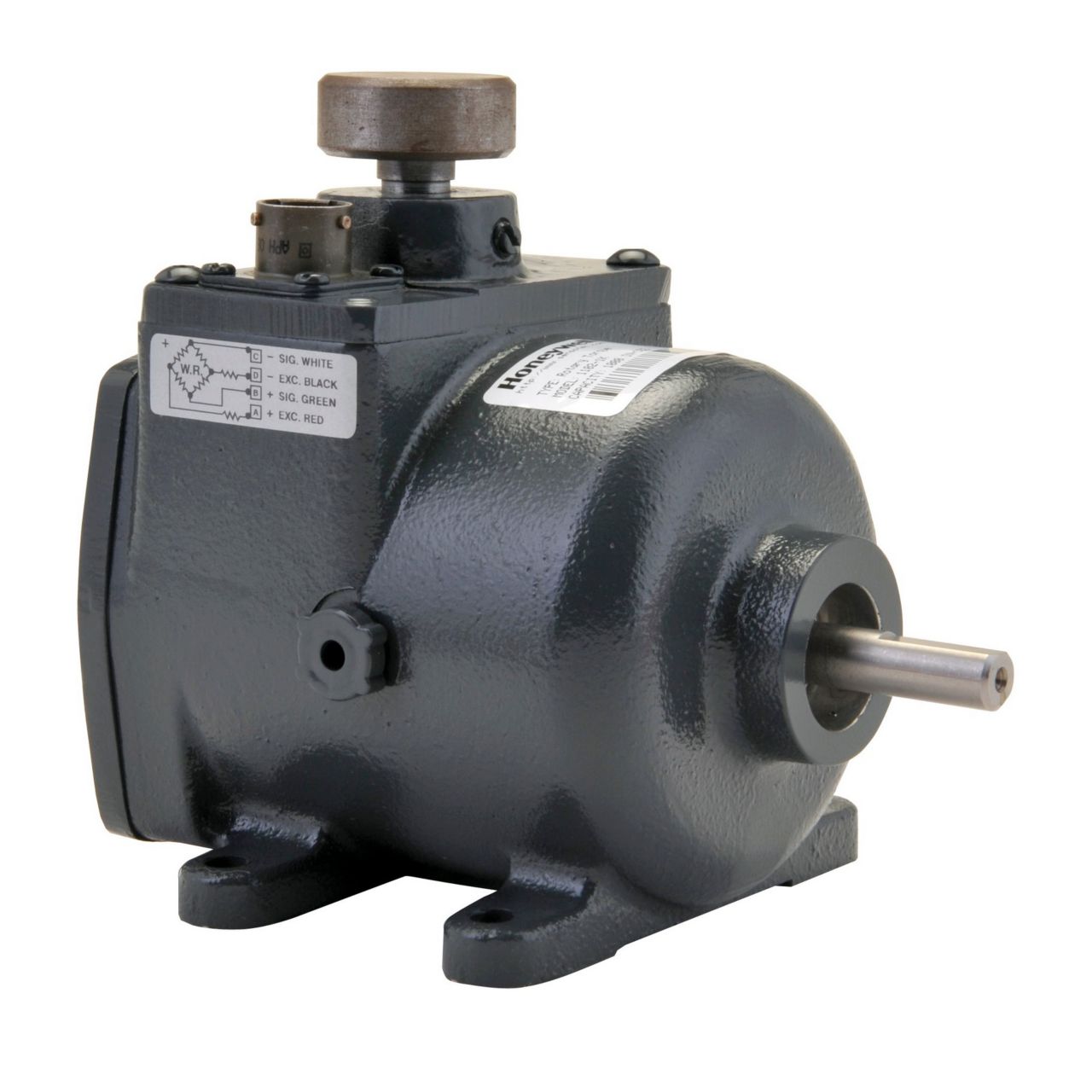

1102, 1103, 1104,
1105, 1106, 1107, 1108, 1109, 1118, 1121
|
|
AC or DC strain gage
conditioning required
【型錄下載】Download Data Sheet |
|
特殊圓盤式 |
| Special Application
Flanges |

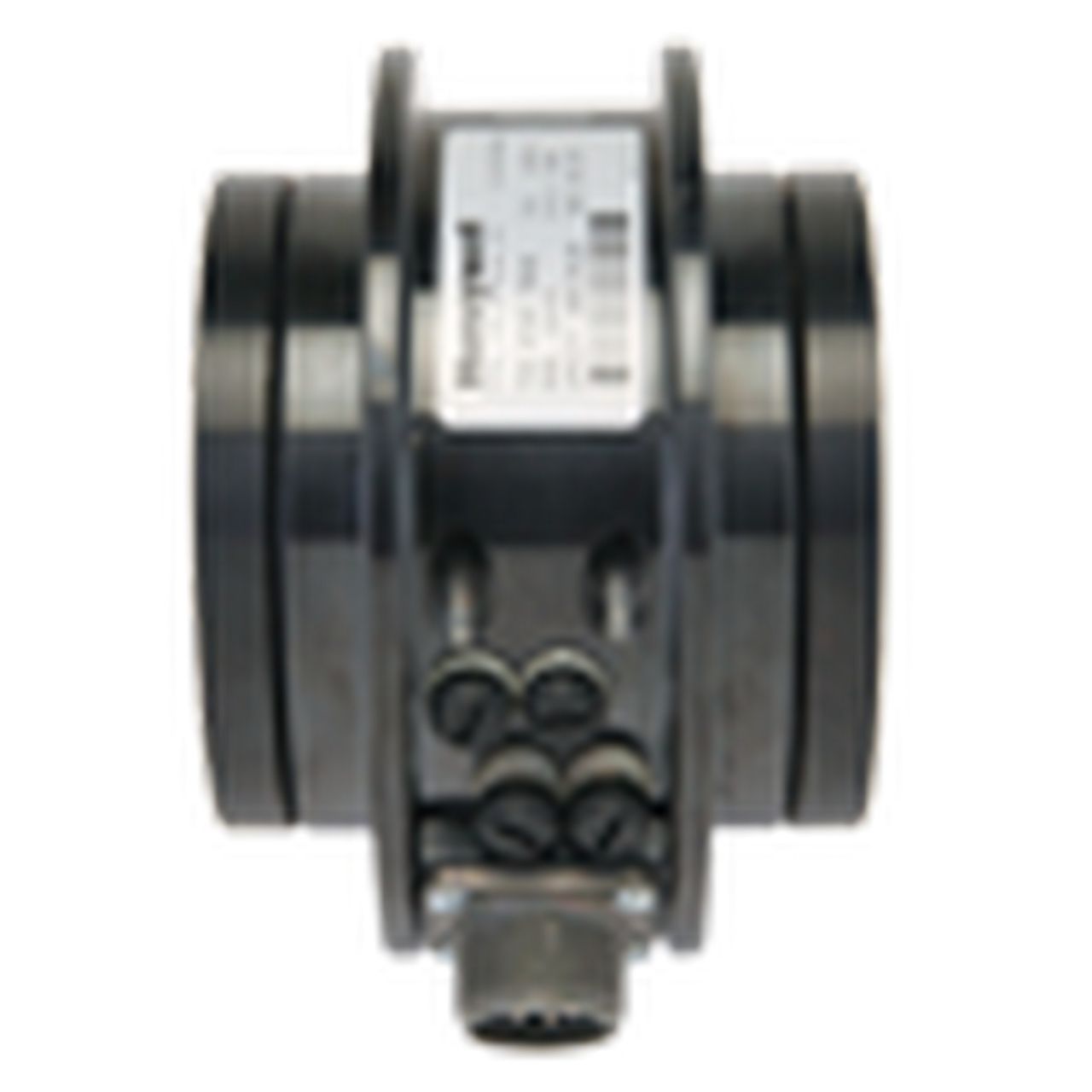

1228, 1248 |
|
For when short
length is mandatory: short drive length, industry
military standard
【型錄下載】Download Data Sheet |
|
方頭 |
| Adaptable for
portable usage |

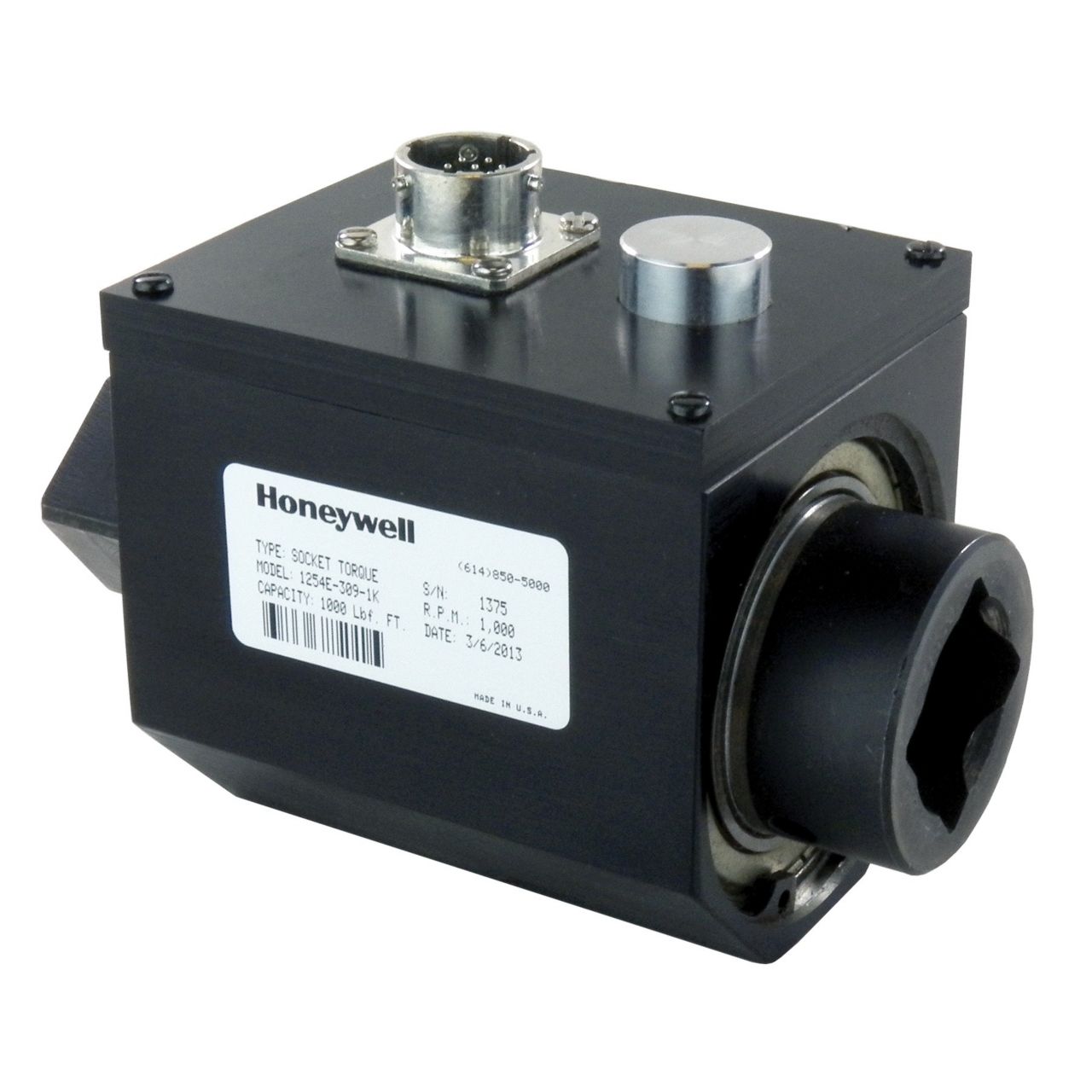

1254, 1254E |
 |
No special adapater
tools required, encoder available (model E)
【型錄下載】Download Data Sheet |
|
Spline Drive |
| Military pump torque
sensor |

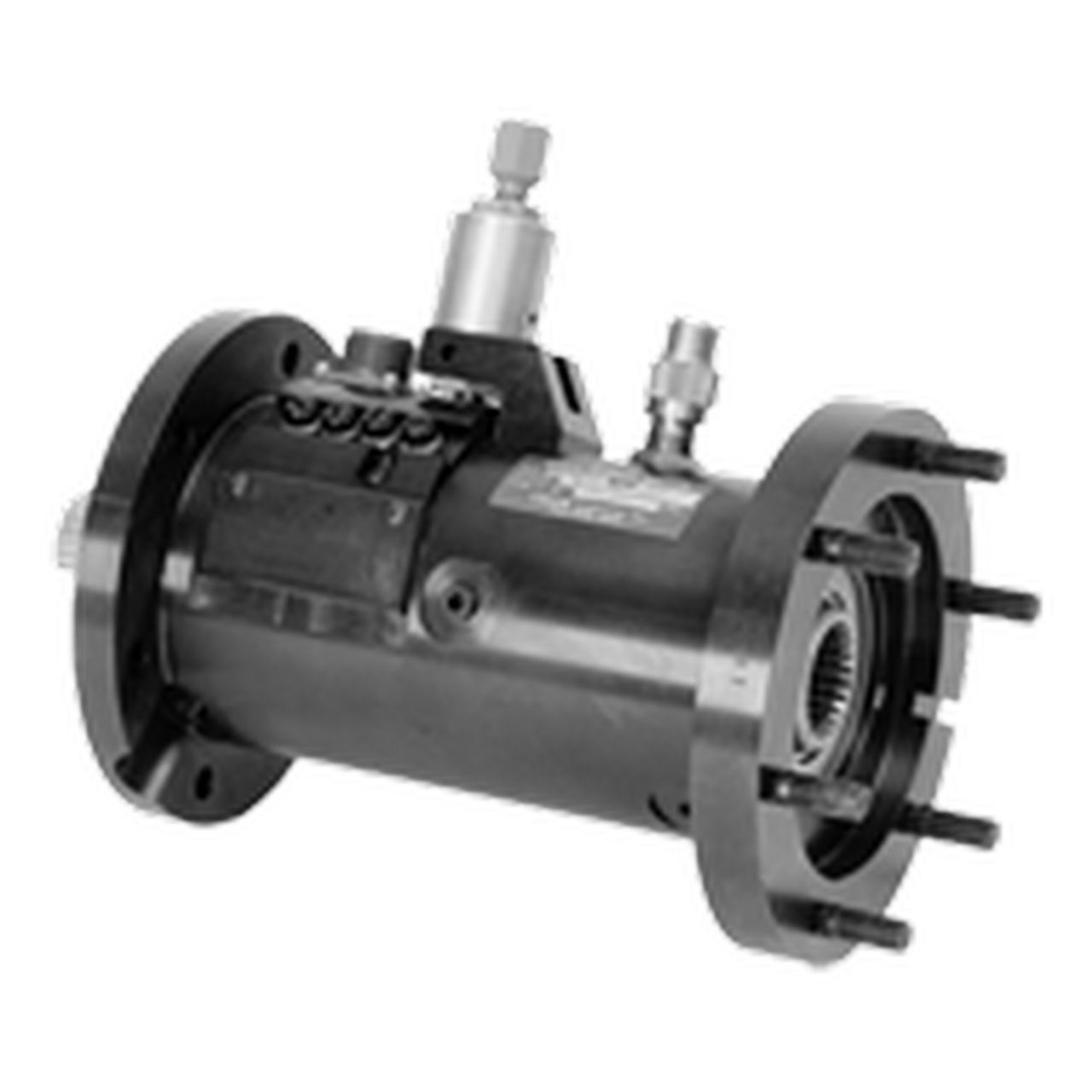

1115A, 1115K |
|
Made to support
heavy pumps and motors, Military standards
【型錄下載】Download Data Sheet |
|
特殊應用 |
| Automotive Wheel
Torque Sensor |

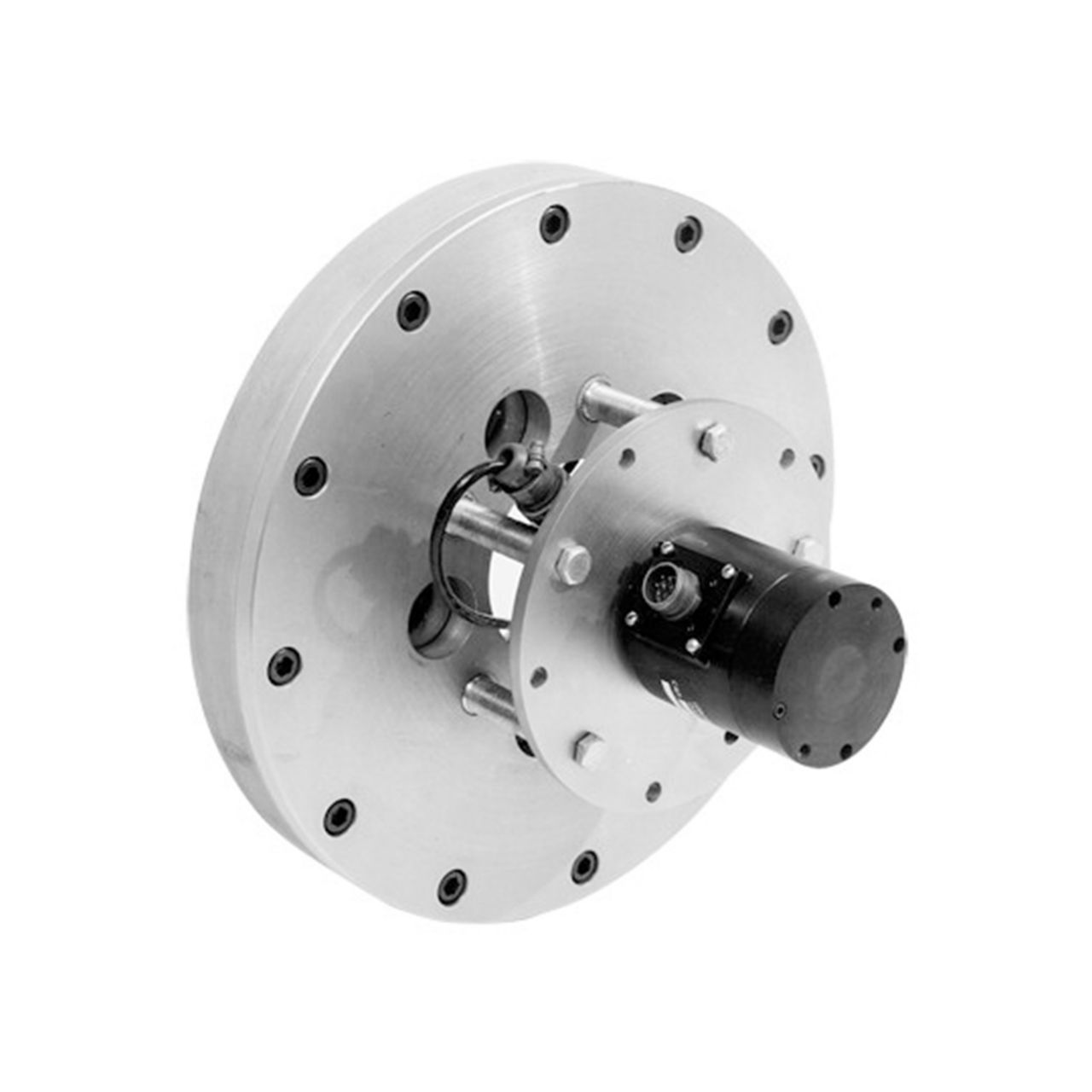

1246 |
 |
Single axis,
Universal stud patterns, encoder / speed (optional)
【型錄下載】Download Data Sheet |
| Large Truck Wheel
Torque Sensor |
1256 |
 |
Single axis, Slip
Ring / Rotary Transformer / Digital Telemetry,
encoder / speed (optional)
【型錄下載】Download Data Sheet |
| Steering Wheel
Effort |

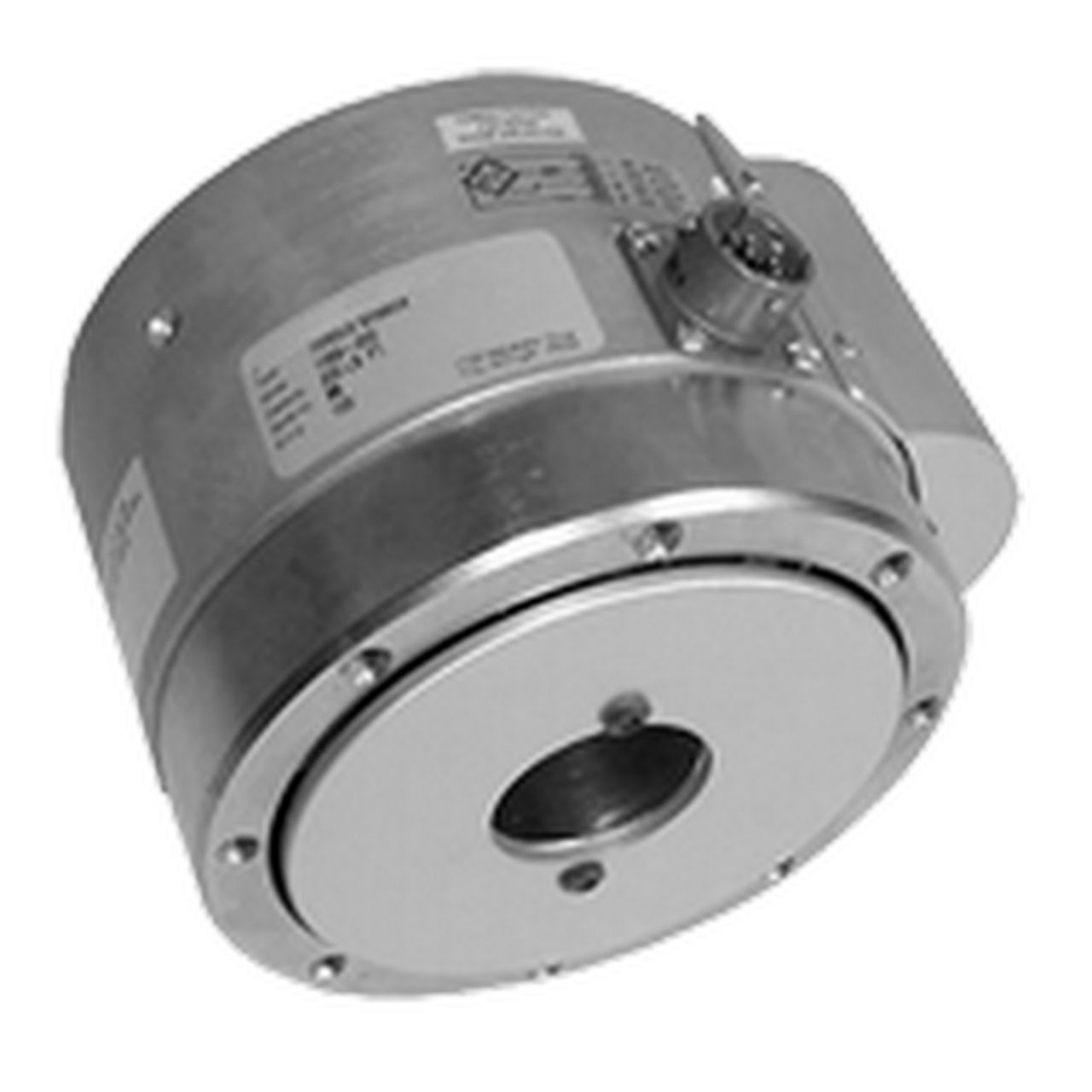

1369 |
 |
Measures torque and
position, SAE female spline mounting configuration,
capacity range: 50 through 300 pound feet
【型錄下載】Download Data Sheet |
| Pulley Torque
Sensors |

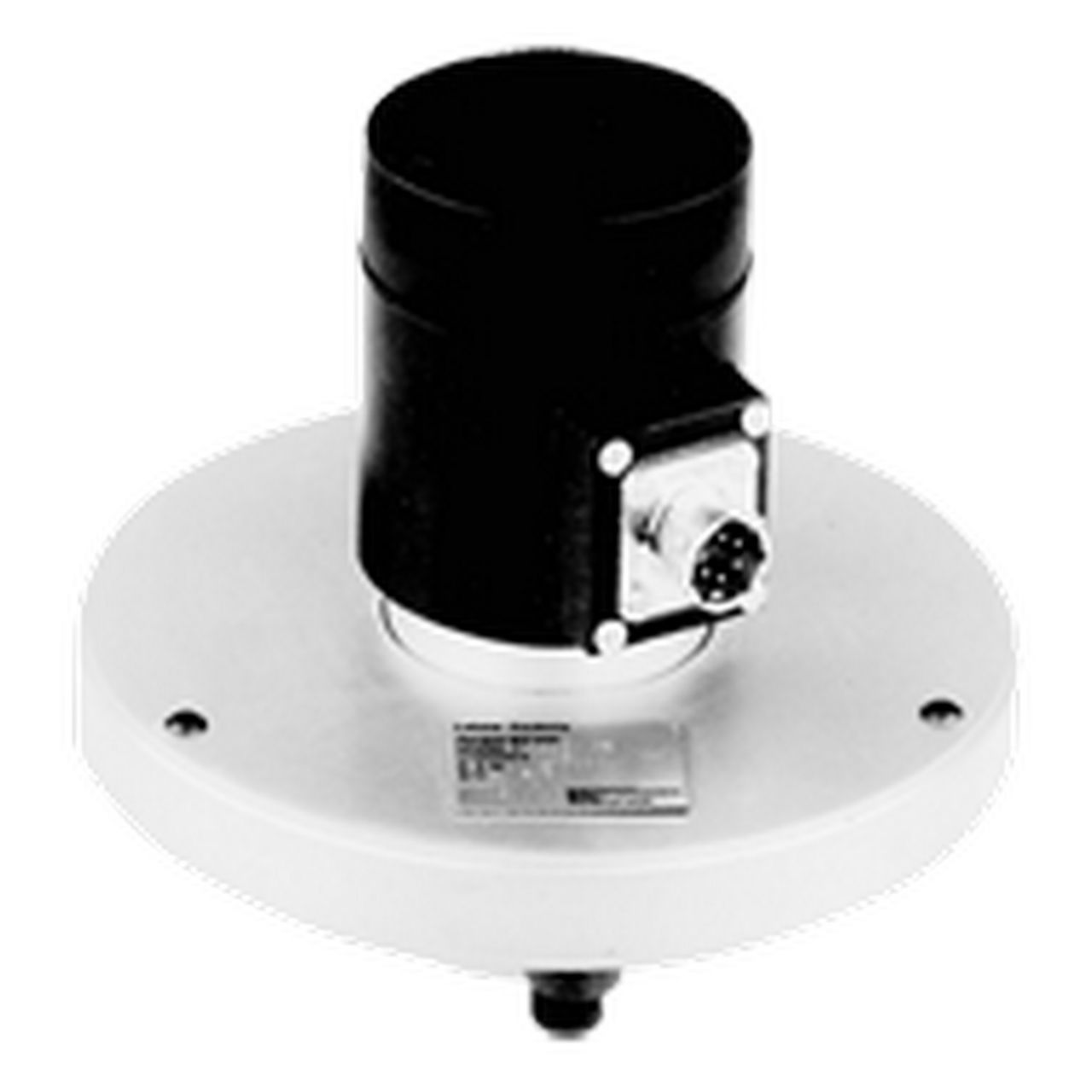

1388-102 |
 |
Rotary Transformer /
Slip Ring / Digital Telemetry Designs, Customer
Supplied Pulley or Sprocket
【型錄下載】Download Data Sheet |
|
