坐墊型壓力分佈系統

• Most economical technique to capture
  mattress “fit” data

• Introduces scientific validity to the
  mattress selection process

• Lower return rates

型錄下載:

• Bodyfitter Index , PDF – 590k
  　

產品應用:

• Body Mapping

• Mattress

• Seating

型錄下載:

• Application: Temperature Sensor , PDF - 660k

The Tactilus^® temperature sensor system is designed to allow manufacturers and retailers to measure temperature distribution and magnitude between the customer and a sleeping surface.

Tactilus’s modular architecture allows the user the capability to capture temperature and pressure information from the same base electronics. Through the sophisticated application of resistive thermistor technology, our sensor sets new standards for scientific validity and cost effectiveness.
　

(使用前)

(使用後)

Sensor Products introduces DIP^®, Damage Indicating Paint. DIP is designed to be coated or sprayed onto your product, part or component. DIP^® is designed to serve as a visual (or non-visible ultraviolet) indicator revealing both the location as well as degree of contact that an object has sustained or been exposed to.

型錄下載:

• Damage Indicating Paints, PDF– 331kb

• Identifying areas of potential ulceration

• Pre- and post-surgical evaluations

• Aiding in the prescription of correctly balanced foot orthoses

• Determining the degree of pronation or supination

• Screening diabetics and other neuropathic patients

• Regulating weight bearing after surgery

• Monitoring degenerative foot disorders

• Immediate determination of orthotic efficacy

• Determining ray hypermobility

• Early detection of scoliosis

型錄下載:

• Podia-scan, PDF - 188k

Tactilus^® is a matrix-based tactile surface sensor. Essentially an “electronic skin” that records and interprets pressure distribution and magnitude between any two contacting or mating surfaces and assimilates that data collected into a powerful Windows-based tool kit. Each Tactilus^® sensor is carefully assembled to exacting tolerances and individually calibrated and serialized.

The architectural philosophy of Tactilus^® is modular allowing for portability, easy expansion, and simultaneous data collection of up to 4 discrete sensor pads. Tactilus^® employs sophisticated mathematical algorithms that intelligently separate signal from noise, and advanced electronic shielding techniques to maximize the sensor’s immunity to noise, temperature and humidity.

型錄下載:

• Application: Heat Sinks/Connectors, PDF - 219k

• Heat Exchanger, PDF - 946k

影片介紹:

• heat_sink .mpg

The Tactilus^® nip impression measurement tool captures nip pressure and parallelism information from between any two mating rolls whether the surface is rubber, composite or metal. Tactilus^® is a real-time, static (rollers not rotating) sensor system that quickly and effortlessly allows for rapid nip contact pressure and distribution measurement. Even an inexperienced user will quickly gain valuable insight from Tactilus^®. In just minutes, Tactilus^® can be deployed across your nip interface and capture a wealth of valuable data. The sensor is only one element of the overall Tactilus^® system. Our user-friendly Windows^® compatible software assimilates the information captured into intuitive, easy to interpret reports and images.

型錄下載:

• Tactilus Nip, PDF - 676k

• Nip Systems Comparison, PDF - 186k

產品應用:

• Tactilus Cascade

• Sigma-Nip

PointScan^® is a portable Windows based measurement system that enables rapid evaluation of pressure magnitude at any given point on Pressurex^® (Fuji Prescale^®)surface pressure indicating film. Simply position PointScan^® over the area you wish to analyze and the pressure data is instantly displayed in your Windows software.

型錄下載:

• Pointscan, PDF - 492k

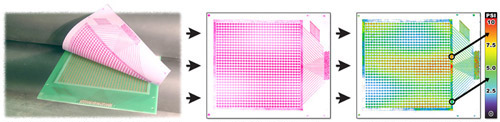

壓力紙系列 (Tactile Pressure Indicating Sensor Film)

型錄下載:

影片介紹:

產品應用:
