溫溼度量測 ●
Moisture & Humidity ●
|
|
|
|
|
【 數位式溫度轉換器】
FEATURES
-

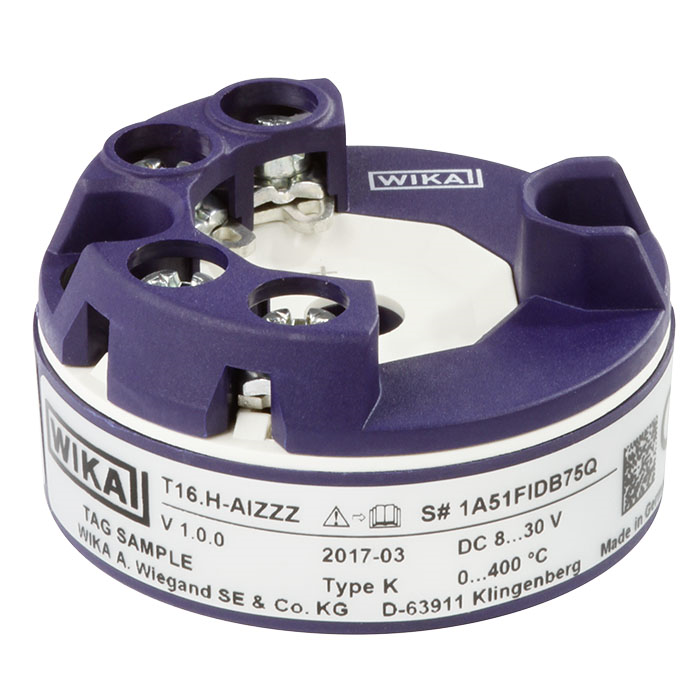

Model T16
For the connection of all standard
thermocouples
-
Model T15 For
the connection of Pt100 and Pt1000 sensors in a 2-, 3-
or 4-wire connection
-
High accuracy
-
Parameterisation with the WIKAsoft-TT
configuration software and electrical connection via
quick connector magWIK
-
Connection terminals also accessible
from the outside
-
EMC stability in compliance with the
latest standard (EN 61326-2-3:2013)
-
Model T15 for PT100 (Data Sheet)
-
Model T16 for
thermocouples
(Data Sheet)
【 泛用型風速計】
- PR611389 (Model DA30W) - Basic Air Velocity
Meter with FPM or MPS Readings
- PR10501 (Model DA40) - Air Velocity Meter
with Hold, Reset, Average, Min and Max Readings

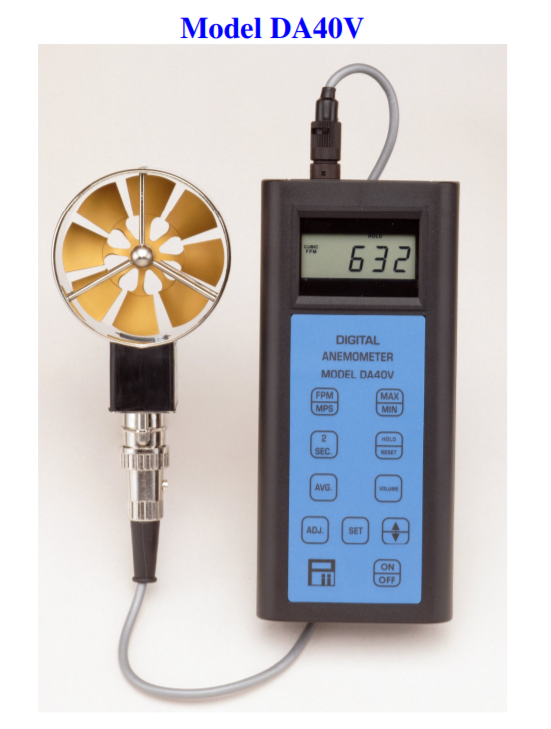

- PR3180013 (Model DA40V) - Same as PR10501
with CFM Volume Readings
- PR3180015 (Model DA40T) - Same as PR10501
with Temperature Readings
【 溫度控制器】

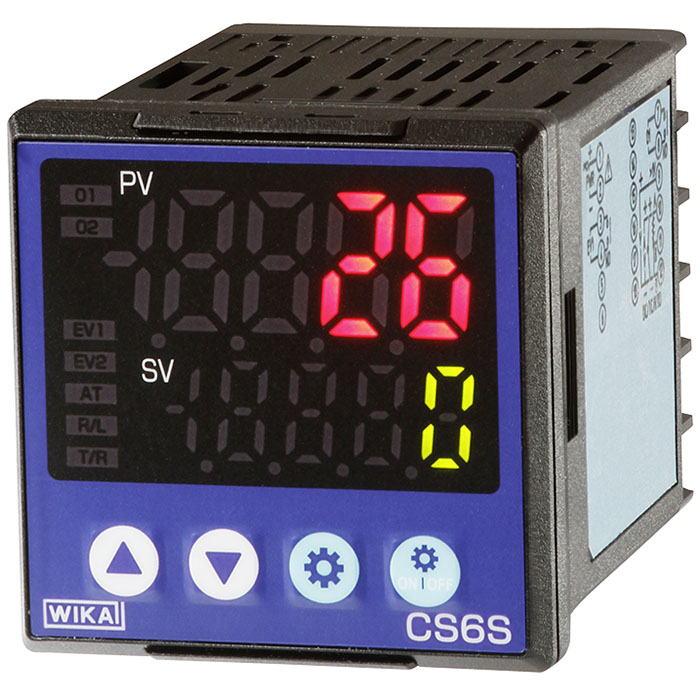

PID temperature
controller(Data sheet)
The compact temperature
controllers from WIKA offer display, control and monitoring
of temperatures. The configuration of the sensor input is
made via the multi-function input. Sensors, thermocouples
and standard industrial signals, such as 4 ... 20 mA, serve
as the input variable of a temperature controller. The
control output can be set either as relay (for slow
control), as logic level for the control of electronic solid
state relays (for fast control and high current loads) or as
a continuous 4 ... 20 mA output.
【 熱電偶探針/ 棒】

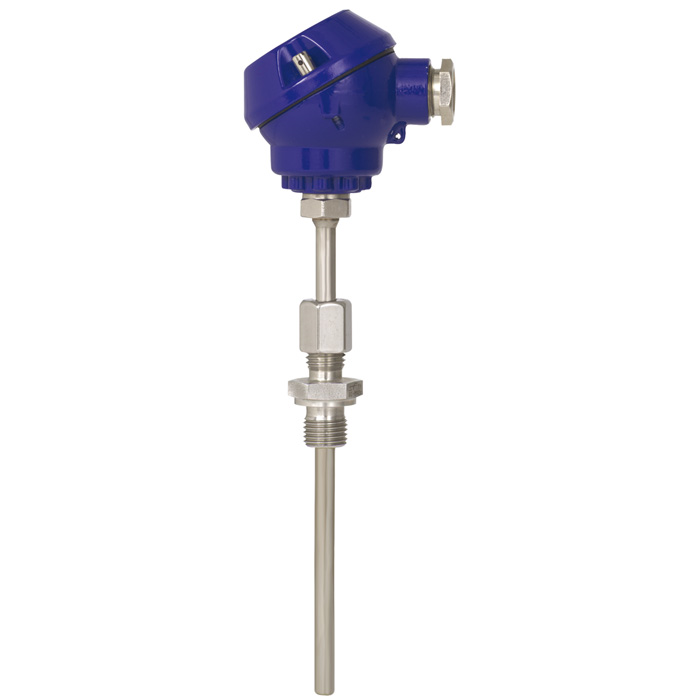

Thermocouples
generate a voltage directly dependent on temperature. They
are particularly suited for high temperatures up to 1,700
°C. Instrument designs from mineral-insulated sheathed cable
are very resistant against extremely high vibration loads
(depending on instrument model, sensor element and wetted
materials). For thermocouples, the accuracy classes 1 and 2
apply (standard and special). They are available with a
tolerance value in accordance with IEC 60581 / ASTM E230.
【 J-T-E-K熱電偶專用儀錶】

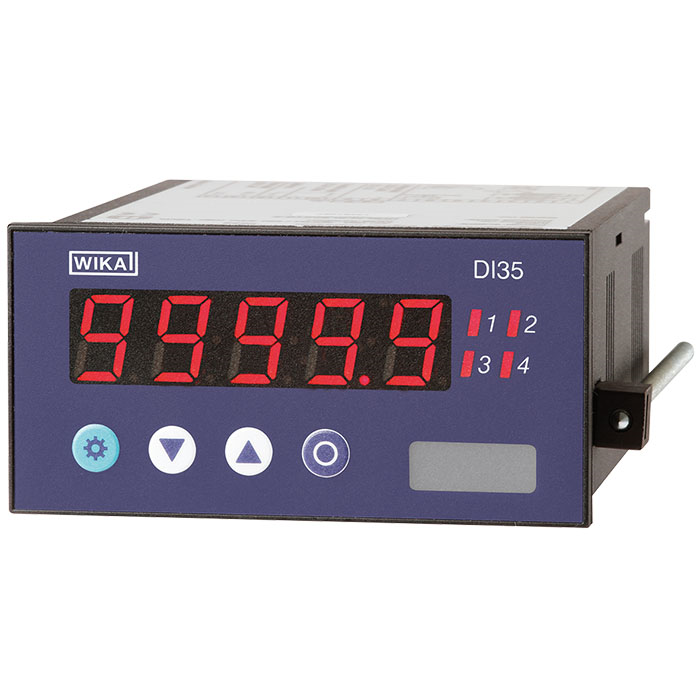

Model DI35 (Data Sheet)
FEATURES
- Multi-function input (29 calibrated input
configurations) or double input (0/4 ... 20 mA, DC 0 ...
10 V) with calculation function
- Accuracy ±0.01 ... 0.1 % of the span ±1 digit
(depends on the input configuration)
- Transmitter power supply, MIN/MAX memory, HOLD/TARE/Totaliser
function
- Linearisation with up to 30 programmable points
- Up to four freely programmable switch contacts
(optionally)
【多功能溫度校正儀】

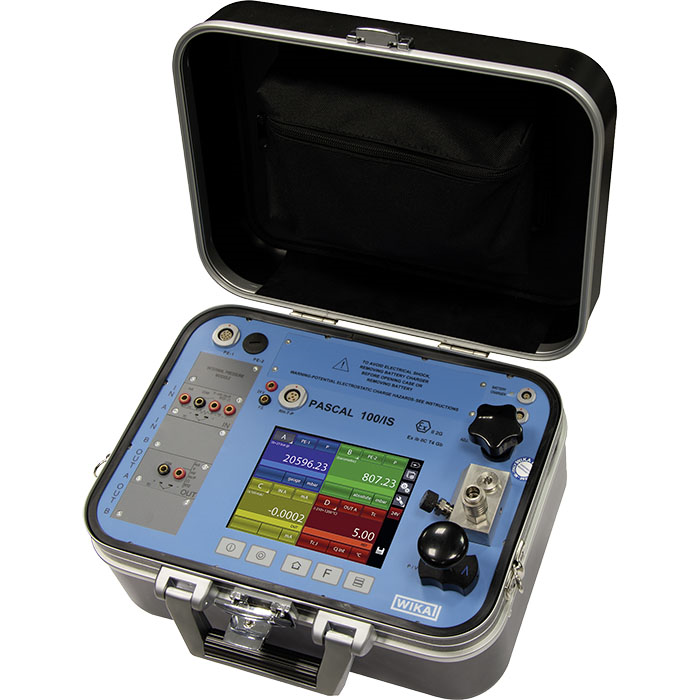

Models Pascal
100(Data Sheet)
FEATURES
- Measurement and simulation of the following
parameters: pressure, electrical signals (mA, mV, V, Ω),
temperature (TC, RTD), frequency and pulse
- Large colour display with touchscreen with new
intuitive and user-friendly interface
- Internal pressure/vacuum generation
- Option: intrinsically safe version II 2G Ex ib IIC
T4 Gb - Tamb: -10 ... +50 °C (14 ... 122 °F)
- Option: integrated HART® module for communication
with HART® instruments
|
|
|
|
|
|
|
|
|
|
