2007德國儀器最新產品上市 ●
New Parner ●
|
|
|
|
ROGA Instruments
Measurement systems of ROGA-Instruments offer you a
broad range of systems for measurement and data analysis. Among other
items we develop hardware and software turn key solutions for
challenging measurement, observation and analysis tasks for industrial
and military customers.
At ROGA-Instruments you will find solutions for sound and oscillation
measurement, process automation, common measurement and special
applications, sound analysis, vibration analysis, control applications
and engine control.
ROGA-Instruments is the authorized distributor of TEAC
Europe GmbH and TEAC Instruments (Japan) for all TEAC measurement products.
We also provide any support and service for these products.
Product range
- data logger (data recorder)
- USB front end (USB DAQ device)
- PC based FFT analyzer
- sensors for vibration and noise
- Software
- accessories
- System solutions for noise measurements
- System solutions for vibration measurements
- Condition monitoring
- Noise Vibration Harshness analysis (NVH)
- Sound level analysis
- Vibration analysis
- data recording
- High speed data acquisition
- Real Time analysis
- vibration monitoring
- Balancing
- Order tracking analysis
- Acoustic Camera
- Non contact displacement and vibration
measurement
- USB Sound Card FFT analyzer
One Stop Shop Systems
for easy solving of complex and
specific Tasks. The flexible combination of components of our
product range and our
support und
service help you to save time and money.
Datalogger (data acquisition)
You will find anything starting
with a 24bit data recorder to data acquisition system with USB 2.0
interface under the link »Datalogger
«.
|
Datalogger / Data Recorder / Data Acquisition |
AQ-VU
Datalogger |
data recorder (datalogger)
which can record 4 channels video signal and 4 channels
analog signal synchronized. Applications are e.g. process
and production monitoring, research and development for
automobile, bioengineering, healthcare and so on. |
es8
Datalogger |
for vibration measurement and
an 8 channel AD converter with a USB interface for
laboratory use |
|
GX-1
|
Modular long time data
acquisition for oscillation, vibration, sound, strain gages,
with MEscope, LMS, DASYLab, ArtemiS, MTS, and so on
|
|
HR-12
|
12-channel Palmtop Size PC
Card Recorder designed for measurements under vibration and
shock environments where its installation space is limited. |
|
LX series
|
Front end system for sound and
oscillation analysis, best suited for modal analysis, sound
power measurement, and as multi channel FFT analyzer,
supported of DASYLab, MEscope, and TEAC |
|
LXMoby
|
measurement recorder system, 8
to 32 channels, IEPE (ICP ®) supply, 24 bit simultaneous
sampling, bandwidth up to 40kHz per channel |
|
RogaDAQ16
|
16 channel USB 2.0 front end
with switchable IEPE (ICP®) supply, up to four units can be
synchronized, drivers for DASYLab, DiaDem, and LabView are
included |
|
RogaDAQ2
|
High performance portable Data
Acquisition Device. It features two high quality, high
speed, 24 bit simultaneous sampling inputs, 4 auxiliary
inputs, two configurable tacho-inputs and additional digital
I/Os. |
|
RogaDAQ208
|
portable Data Acquisition
Device, two high quality, high speed, simultaneous sampling
inp eight auxiliary inputs, two configurable RPM-inputs and
additional digital I/Os. |
|
Plug.n.DAQ
|
2 channel USB front end with
switchable IEPE (ICP®) supply, external USB sound card
equipped with BNC terminals and SPDIF interface |
|
Diamond 401 |
oscillation instrument
/vibration meter for preventive maintenance and engine
observation |
|
VibDIN series
|
measurement modules mounted on
DIN rail |
|
VIBex
|
state-of-the-art vibrations
monitoring system mounted on DIN rail |
Integrated
solutions for complex tasks
like multi channel
real-time analysis you will find in »integrated-solutions
«.
Accompanying
software
which is
thoroughly tested and supported with many drivers you will find
under »
Software «.
|
Software |
|
DASYLab |
Measurement and
analysis application software |
|
iso
8041 |
Computation of
all frequency weightings and output of physiological
measurements |
|
FlexPro |
Data
presentation and analysis |
|
MEscope |
Analysis
program package |
|
SLM & SPM |
Real-time sound
level and sound power measurement |
|
RogaANA |
NVH Analysis
Software : This unique software was developed especially for
the needs of NVH engineers. ROGA Instruments covers with it
any NVH analysis requirements within one software package. |
|
RogaREC |
specially
designed for many different T&M devices |
Sensors
and accessories
developed
especially for our product range you can find under »sensors
«.
|
ROGA Instruments
Sales Office for Measurement Solutions
Steinkopfweg 7
55425 Waldalgesheim
GERMANY
|
|
|
|
●
熱門產品發表 ●
New Products ●
|
|
|
|
|
Model 1700 Series Torque Transducer
【扭力計】
產品特色：
(±10 V output)
免去傳統碳刷接觸的維護
量測範圍領先同業(0.1
N-m至1500 N-m)
RPM轉速量測 (optional)
Click here
to review the data sheet

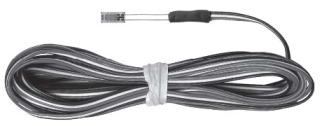

Model C2A Low Cost Gauge
【帶線式應變計】
產品特色：
-
經濟通用型
-
適合快速黏貼使用
-
單軸 / 雙軸 / 三軸式
-
高溫可達+180℉
-
表面塗層保護 (Encapsulated gage)
-
標準30-AWG漆包線轉34-AWG / 三芯導線,25米長
產品描述：
Vishay Micro-Measurements C2A-Series
Strain Gage 是一款省時又經濟實惠的應變規，不但替客戶省去焊接與拉線的麻煩，更有多種背材與型式可供選擇，滿足您不同領域的應用。
Click here
to review the data sheet
Model P3 Indicator and Recorder
【可攜式資料記錄器】
產品特色：
-
四個輸入頻道
-
LCD
螢幕直接讀取數值
-
資料儲存於MMC記憶卡
-
0 to 2.5Vdc
類比信號輸出
-
1/4電橋,
半電橋及全電橋電路輸入
-
內建電橋補償電路
-
120-, 350- and
1000-歐姆 dummy gages
-
自動化歸零及校正功能
-
直覺式的操作選單設計
-
提供USB介面可將資料傳回PC
-
可由面板按鍵或PC直接操作設定
-
輕量化可攜式設計方便戶外現場使用
-
內建電池可做長時間記錄,可使用USB介面或變壓器供電
產品描述：
Model P3 Strain Indicator and Recorder
是一個重量輕手持式電池供電的多功能應變紀錄器,
四個輸入頻道,可接受1/4電橋、1/2電橋、全電橋電路輸入,及各種電橋電路設計的感測器輸入(Strain Gage
Base 壓力感測器、Load Cell、Torque
Sensor、應變規式位移計等)。P3是專為各式各樣應力分析、測量及檢測所設計， P3
可做為一個電橋放大器、靜態應變指示器、記錄器。
Click here
to review the data sheet
System 6000 Data Acquisition System
【高速動態資料擷取器】
產品特色：
-
單一系統最少為1個頻道、最多可擴充至1200個頻道
-
內建電橋模組供
120-, 350-, and 1000-ohm
應變計使用
-
取樣及記錄速率可達10000
Sample/秒
，最多可同時記錄1200個頻道
-
每秒超過200000
筆資料的處理能力
-
同步的取樣與anti-aliasing
濾波功能
-
每個頻道獨立的Analog
to Digital 轉換器
-
穩定,
精確,
低雜訊
的信號處理
-
針對量測信號具有可選擇性的數位濾波功能
-
高速的
PCI 介面卡
及
Ethernet 網路連接介面
-
Digital I/O
外部觸發功能
產品描述：
Featuring StrainSmart software,
System 6000 is a complete data
system for stress analysis and structural materials testing
at rates of up to 10,000 measurements per second per sensor.
The most significant feature of System 6000 is its unique
operating software which addresses virtually every variable
that must be considered in stress analysis testing - from
initial data entry, to data acquisition and conditioning, to
on-line and off-line correction, reduction and presentation
of results. System 6000 will accept inputs from strain
gages, thermocouples, LVDT's, load cells, and other
transducers.
◎應變計(strain
gages)
◎應變計式感測器(Pressure
Sensor、Load
Cell、Torque
Sensor等)
◎感溫熱電偶
(thermocouples Type J、K、T、E、R、S、B內建冷接點補償功能)
◎電壓輸出之感測器
◎位移感測器LVDT's
◎壓電晶體式感測器(加速規、Force
Sensor
、Pressure
Sensor)
Click here
to review the data sheet
|
|
|
|
GMI
Cable Tension Meter
【金屬纜線張力計】
Read directly in KG-F, KN-F or
LB-F
產品特色：
安全,準確,使用簡便
GMI張力計係特別針對各式金屬纜線之安裝/檢查/維修而設計之精密張力量測工具.全部配備均放置於一只手提箱內,攜帶方便.
GMI張力計讀值顯示可分傳統式及電子數位式,可直接以公斤或磅為單位顯示量測張力值,不需另外查校正表及對照表,精度高,應用範圍廣泛,使用方式卻相當簡便.
下列四種標準型號為一般常用金屬纜線張力計,讀值均以公斤或磅為顯示單位,本公司可另提供其他特殊量測範圍使用之張力計.
|
型號 |
金屬纜線直徑 |
金屬纜線直徑 |
張力值 |
張力值 |
|
TM-600 |
7股 5/16" - 5/8" |
19股 6/19" - 5/8" |
100 kgs - 1,000 kgs |
250 - 2,500 lbs |
|
TM-700 |
7股 3/16" - 5/8" |
19股 9/16" - 5/8" |
100 kgs - 1,500 kgs |
250 - 3,000 lbs |
|
TM-800 |
7股 3/16" - 5/8" |
19股 9/16" - 3/4" |
100 kgs - 3,000 kgs |
500 - 7,500 lbs |
|
TM-900 |
7股 3/8" - 1.0" |
19股 9/16" - 1.0" |
100 kgs - 5,000 kgs |
500 - 15,000 lbs |
|
|
