航空用發動機測試台 ●
Froude Hofmann -
Aerospace Gas Turbine ●
|
|
|
|
Froude Hofmann
系列的航空發動機機測試設備已可滿足絕大部分發動機的設計、生產和環境保護專門的高性能測試需求。全系列商品大部分應用於軸流式渦輪發動機和渦輪螺旋槳飛機發動機。
Froude Hofmann提供－精度高、性能穩定和反應速度快的系統
，其中包括：
-
全系列的水力測功機
-
固定測試台或移動式試驗推車
-
Texcel 數字控制系統
-
與專用發動機相匹配的慣性飛輪和傳動裝置
-
發動機附加裝置
Froude Hofmann高質量的水力測功機的功率測試範圍為750 kW ∼
28,000 kW ，還可以用於高轉速雙轉向的機械測試，一前一後式的結構設計進一步擴展了功率測試範圍。Texcel
VX100直接數字式控制系統的控制和測量精度高，並且裝有測功機安全監控和報警裝置。
Froude Hofmann還設計和製造了大量的測試台和移動台推車滿足功率從400 kW
到10,000
kW.範圍的發動機。每種設計應用於軸流式渦輪發動機和渦輪螺旋槳飛機發動機的可互換的發動機附加裝備使得某幾種發動機可以在同一測試台/試驗車上進行測試。 |
|
【全系列產品】 |
|
 |
 |
|

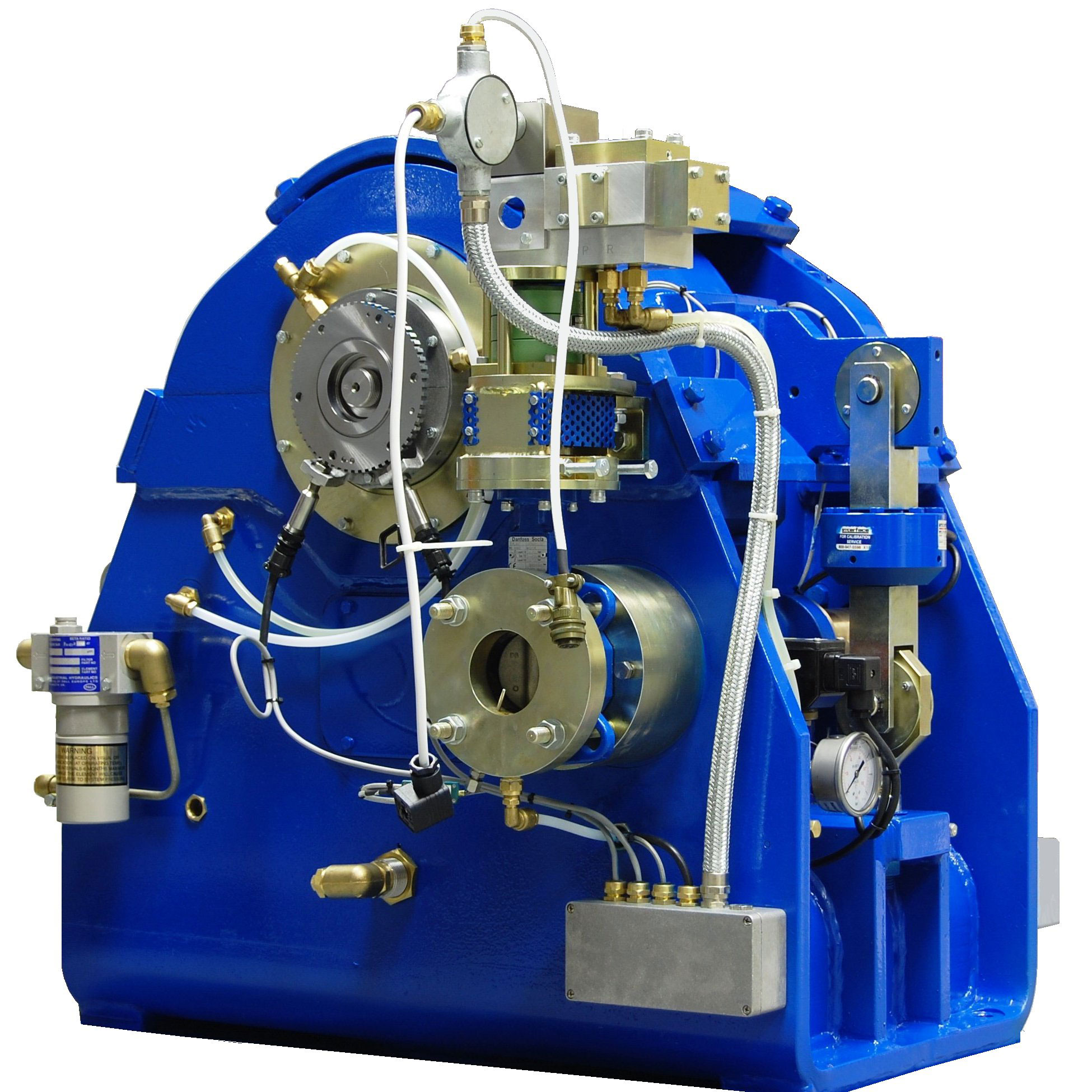

High Speed Engine
Dynamometer |

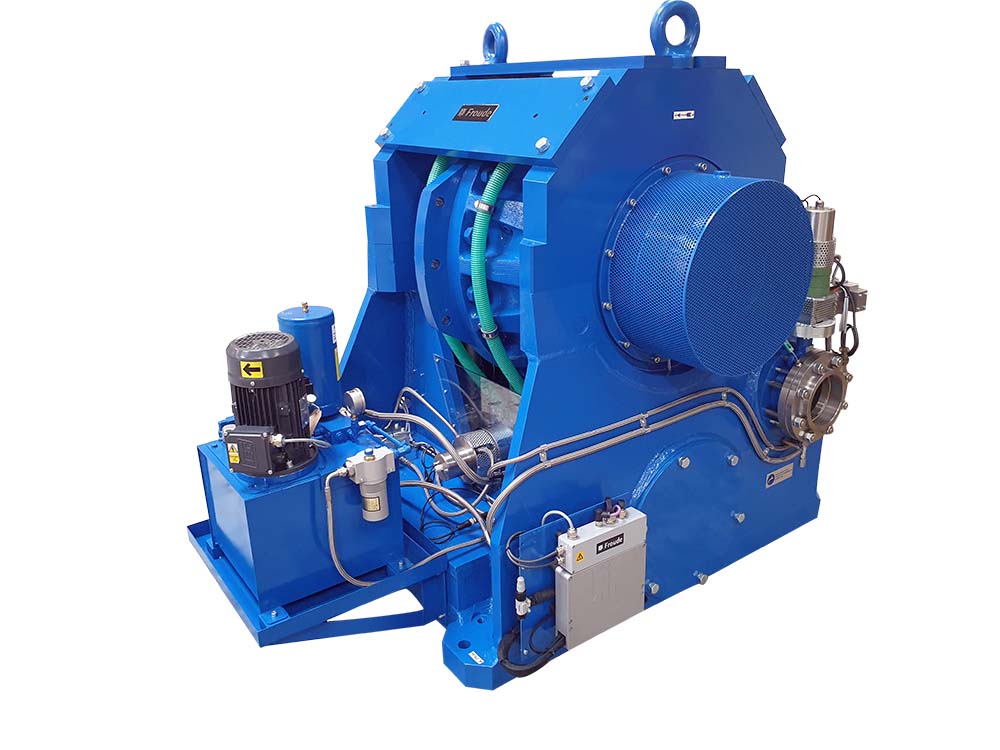

Hydraulic Dynamometers |
|
【高轉速動力計】 |
【水煞車式動力計】 |
 |
|

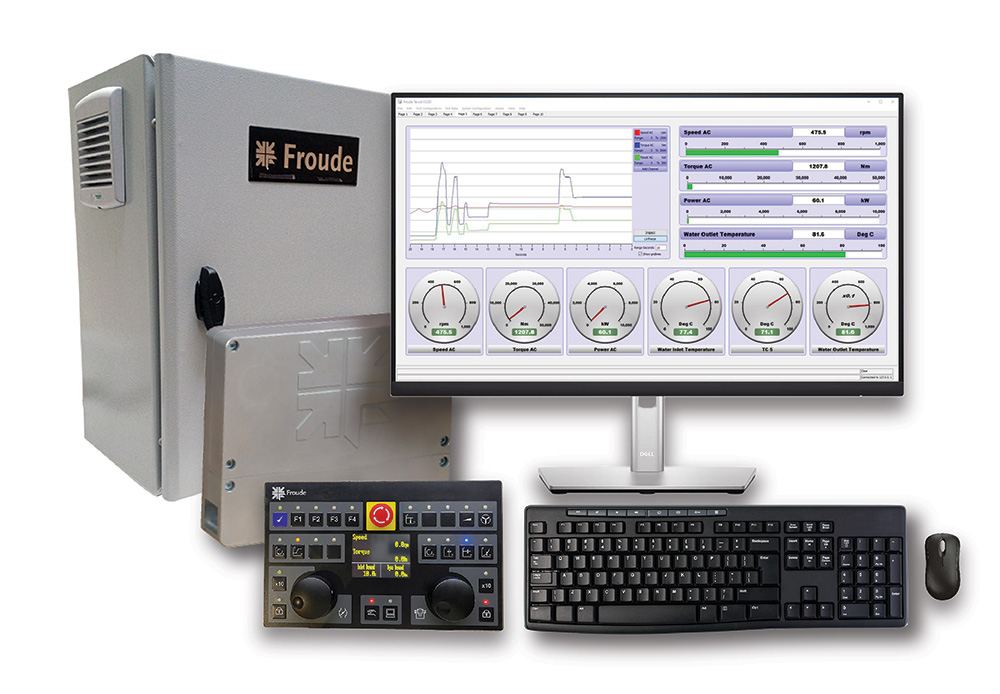

TEXCEL VX100 |
|
【數位式控制器】 |
|
|
|
●
航空用測試台 ●
Avtron - Aircraft Test
Equipment ●
|
|
|
|

AVTRON MANUFACTURING, INC.
Since 1953,
Avtron has been a leader in designing and manufacturing
Electrical Control and Test Equipment. Our Aerospace,
Industrial Automation, and Load Bank divisions occupy four
buildings in Northeast Ohio, to accommodate manufacturing,
sales, and engineering resources. Twenty-five percent of
Avtron's employees are graduate engineers in electrical,
computer, and mechanical fields.
Headquartered near Cleveland, Ohio, USA, Avtron is
recognized around the world for manufacturing high quality
products which function reliably in harsh industrial
environments. Avtron旧 technically advanced products come
with a solid field service organization dedicated to prompt
and reliable support. Anywhere in the world and at any time,
installation, start-up, and support services are available
on all Avtron products.
|
|
【全系列產品】 |
|
 |
 |
|
Electrical Test
Equipment |
Hydraulic Test Equipment |
|
【電子設備測試台】 |
【液壓測試台】 |
 |
|
Fuel Component Test
Equipment |
|
【燃油測試台】 |
|
|
|
|
|
●
油壓測試系統 ●
Shore Western -
Hydraulic Test ●
|
|
|
|
|
|
Shore
Western Manufacturing has been supplying the
hydraulic test industry with high quality
components and systems for over 35 years,
specializing in custom test systems and
equipment for material and structural research
applications. Shore Western's extensive
experience in manufacturing and design gives
them the expertise to custom design your closed
loop controlled hydraulic test systems as well
as other unique systems.
˙油壓伺服方式之材料結構疲勞測試
˙可靠度測試系統及特殊需求之油壓測試系統
˙汽車結構及飛機結構之模擬或控制系統
|
|

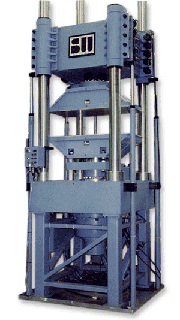

Load Frames |
|
|
|
Shore Western offers a variety of load frame
models varying from 1 KIP (4.4 kN) models to
huge 1,000 KIP (4,448 kN) force rated units. Our
bi-axial load frames offer both tension and
compression as well as torsional capability.
Combined with an SC6000 control system they
create a complete Material Test System. Options
include crossheads with hydraulic lifts and
locks and we can also supply a wide variety of
grips, fixtures, load cells and extensometers. |
|
|
|
   |
|
|
Actuators |
|
|
|
Shore Western manufactures actuators to meet any
requirement. |
|
|
   |
|
|

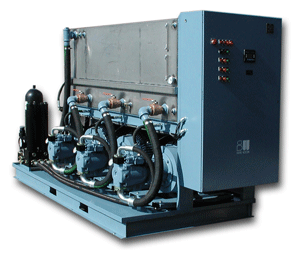

Hydraulic Power Supplies |
|
|
|
Shore Western offers a variety of HPS models
varying from 1 gpm (3.8 l/m) Laboratory models
to large, multiple pump Pump Room Hydraulic
Power Supplies. Units are available with fixed,
variable volume, or pressure compensated outputs
to fit the specific application. Options include
5,000 psi operating pressure, special voltages,
50 Hz compatibility, tank heaters, kidney loop
filtration, remote air-oil coolers and custom
controls and alarms. |
|
|
  |
|
|

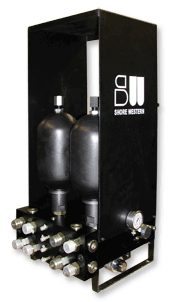

Service Manifolds |
|
|
Features include:
-
Modular design simplifies system
configuration.
-
Standard 3000 psi (207 bar) operating
pressure.
-
ON/OFF flow control.
-
High/LOW and ramping pressure control.
-
Accumulators regulate variations pressure
and flow.
|
|
Series 21 &
22 |
Series 23 &
24 |
   |
|
|

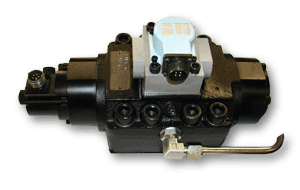

Valves |
|
|
 |
|
|

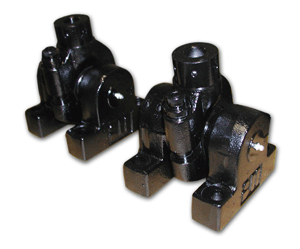

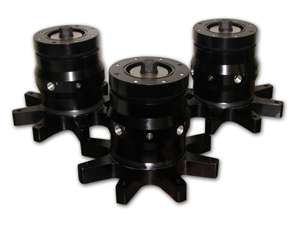

Rod Ends
& Swivels |
|
|
|
Typical applications include
-
Structural fatigue testing
-
Fatigue testing of structures and components
-
Vehicle durability testing
98
and 99 Series Rod and Base Ends set the standard
for actuator accessory design unmatched in
extreme and grueling test conditions. Advanced
design and quality components makes Shore
Western actuator swivels and base ends your best
choice for testing applications.
Both
Series are available in sizes ranging from 3.3
Kips (15 kN) to 500 Kips (2000 kN). Swivel bases
offer 360 degrees of rotation and +/- 30 degrees
of angular displacement. |
|
|
  |
|
|

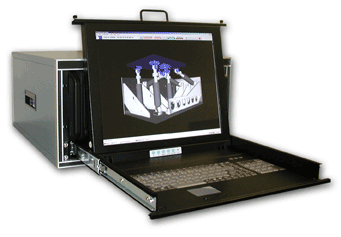

SC6000 Controller |
 |
|
|
|
|
