GreenTECH提供攜帶式多通道資料擷取器
攜帶式資料擷取器應用於土木工程,船舶,建築和機械相關的測量設備,於無電腦的環境下,透過觸控螢幕進行設定並將資料儲存於SD卡,亦可與電腦做連接使用....
More...
Mantracourt
提供超小型放大器及無線量測技術包含
Strain Gage, load cell,
force measurement, temperature, pressure , voltage, current,
potentiometer, rate, flow, LVDT, displacement.......
More... |
|
|
 |
Vishay Measurements Group
靜/動態量測儀器
(應變計/荷重元/扭力計) |
|
Strain
Indicators & Recorders
Basic instrumentation
requirements call for stability, accuracy and high
resolution when making measurements under static loading
conditions.
P3 Strain Indicator & Recorder
Digital Data
Systems
Depending on their
design, digital data systems can be used for measurement
of static, dynamic, or both kinds of signals.
Software
Hardware
Signal
Conditioning Amplifiers
When signals are produced
by dynamically applied loads, the instrumentation
requires adequate frequency response, and a wide
amplifier gain range.
|
 |
GMH Engineering
小型輕量、耐震資料擷取系統
路試/空中測試系統及其分析軟體. |

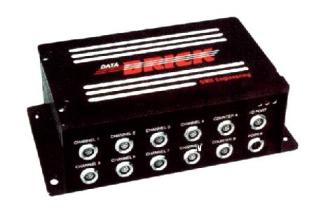

The
Data Brick provides
reliable, high performance data
acquisition in a small, extremely rugged, lightweight
package.
| |
|
|
Fully
Programmable |
No need to buy
extra plug-in cards or stacking modules. The
Data Brick is
completely self contained. The sensor power,
signal conditioning, offset compensation, etc.
are controlled through the graphical, menu
driven, host computer software. The software is
available in either a DOS
(TM) or
Windows (TM)
version. |
|
Versatile
|
You program the
Data Brick to work
the way you want it to work. You select the
trigger mode. You select the sample rate. Each
channel can sample up to 12,800 samples per
second. Up to 524,218 data points can be logged
during a test. |
|
Accurate
|
The
Data Brick is
self-calibrating for all ratiometric sensors and
the software will prompt you through the
calibration procedure for other types of
sensors. |
|
Reliable
|
Variable frequency,
low-pass, anti-aliasing filters guarantee that
your data is not a false representation of what
you measure. |
|
Rugged
|
The
Data Brick will
continue to gather data while subjected to
repeated accelerations in excess of 100g.
|
|
Flexible
|
Each
Data Brick has 8
differential analog input channels (1 channel is
capable of external multiplexing), 4 counter
input channels and 1 trigger channel. The
software will manage data acquisition from up to
8 Data Bricks.
|
|
Simple to
Use |
The
Data Brick is so
easy to use that it can be configured for a test
within a few minutes. |
|
|
|
