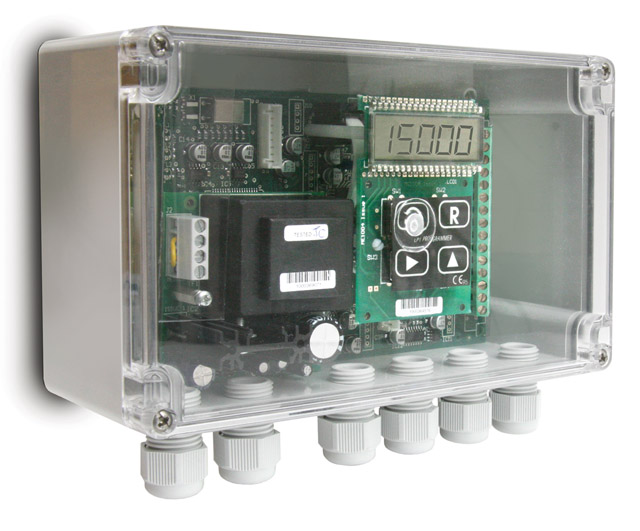

Load Cell Amplifier with Relay&Data Output

【可程式荷重元放大器】

• Load cell amplifier for single or multiple load cell applications

• Simple one pass auto calibration

• Excitation 10V 160mA for up to 6 load cells

• Sensitivity from 0.5 to 200 mV/V

• Full digital set-up and calibration using keypad or PC

• Auto tare and peak hold actioned by volt-free contacts

• Fully isolated 4-20mA and 0-10V analog outputs

• 2 set points SPCO relay outputs

• RS485 RS232 digital data output for communications and printing

【型錄下載】Download Data Sheet

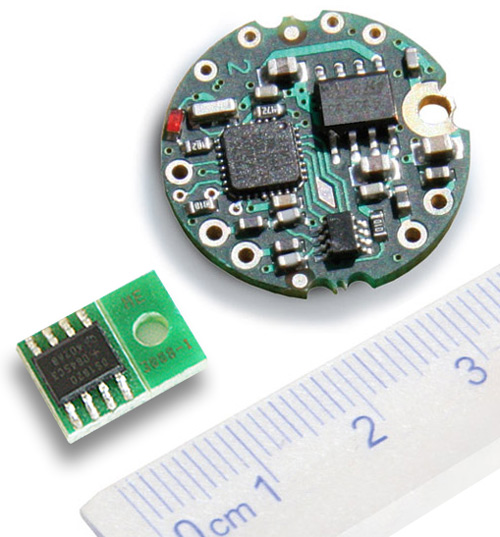

Digital Strain Gauge/Load Cell Converter

【數位輸出應變規/荷重元放大器】

• Strain gauge conditioner and load cell amplifier

• Low profile, small 20mm diameter for mounting inside sensor

• Standard excitation of 5V

• Strain gauge to RS485 or CAN digital load cell converter

• High speed, up to 500 Updates per second

• Auto calibration or direct entry of mV/V with linearisation

• Programmable dynamic filter

【型錄下載】Download Data Sheet

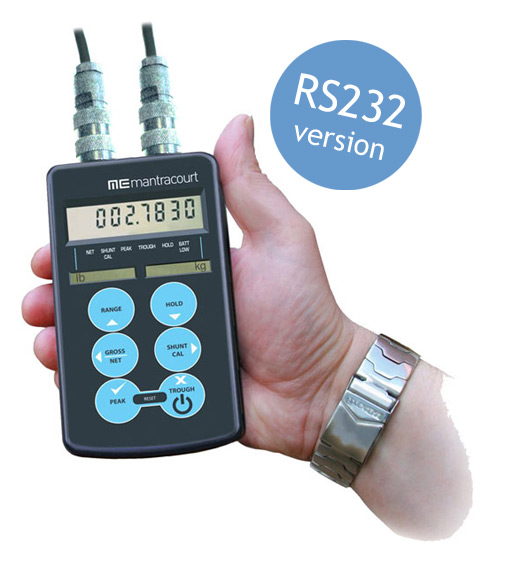

Strain Gauge/Load Cell Indicator with   RS-232

【手持式荷重元顯示器】

• The RS232 version of the PSD allows connection to many interfaces including PC, data loggers, etc.

• Portable digital display for use as a strain gauge indicator or load cell indicator. Easy to carry weighing only 250grams

• 7 digit LCD display, with battery, peak, trough, net, overload and shunt cal indication

• Battery powered with life of 450 hrs in power save mode

• Tactile keyboard, with on/off, range select, peak/valley hold, and gross/net controls

• Microprocessor based, allowing single pass calibration facility (direct mV/V)

【型錄下載】Download Data Sheet
