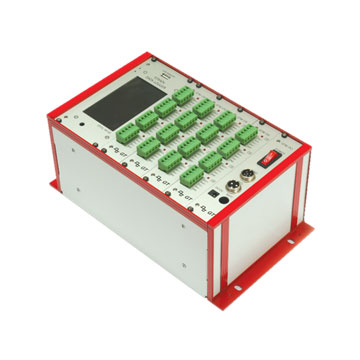

GreenTECH Data Logger ●
|
|
|
|
 |
|
|
 |
CDMA Data Logger
【無線通訊資料擷取器】
-
With
wall type easy to install at fields
-
Using DC12V power, compact
size
-
Support SMS
-
Support TCP/IP access and
modem to modem access
-
Input Sensor:Strain Gage Bridge
Sensor,Potentiometer Sensor,Pt100 temperature sensor,Voltage
【型錄下載】Download Data Sheet |
|
|
|
 |

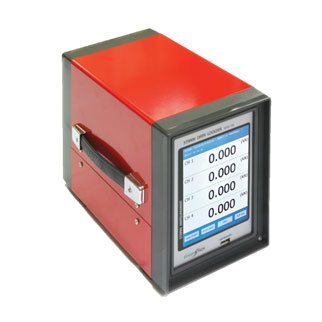

4 Channel Data Logger
【4頻道資料擷取器】
-
4 channel static and
dynamic data logger(5.6" TFT Touch LCD)
-
Multi-functions with touchable screen and
data memory
-
Not need a separate bridge box due to
built-in 120Ω/350Ω bridge circuit
-
Noise removal by low pass filter circuit
-
IAutomatic zero point adjustment by Autozero
button
-
Able to connect with 1-gauge, 3-wire,2-gauge
or 4-gauge for each channel
-
Compact, light weight, USB interface
【型錄下載】Download Data Sheet |
|
|
 |

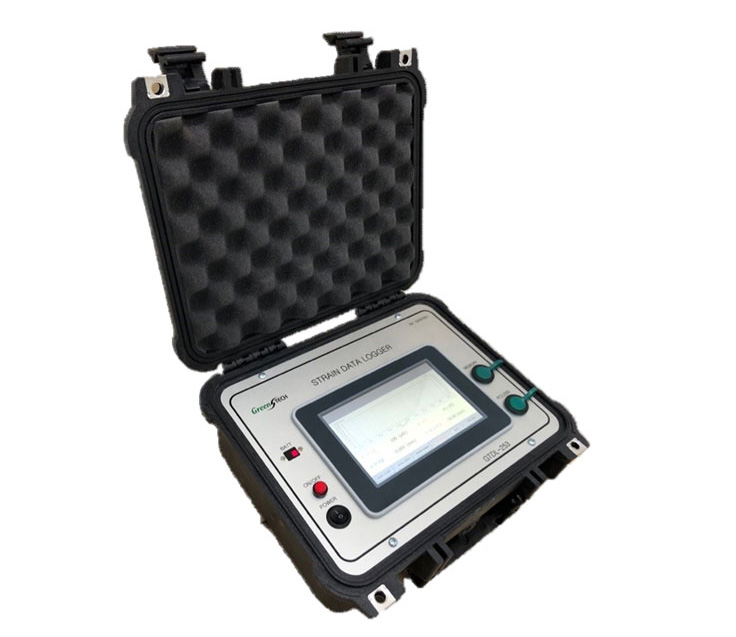

4 Channel & On-site Data Logger
【4頻道資料擷取器】
-
4 channel static and
dynamic data logger(7" Touchable LCD SCREEN)
-
Multi-functions with touchable screen and
data memory
-
Not need a separate bridge box due to
built-in 120Ω/350Ω bridge circuit
-
Noise removal by low pass filter circuit
-
IAutomatic zero point adjustment by Autozero
button
-
Able to connect with 1-gauge, 3-wire,2-gauge
or 4-gauge for each channel
-
Compact, light weight, USB interface
【型錄下載】
Download
Data Sheet |
|
|
 |

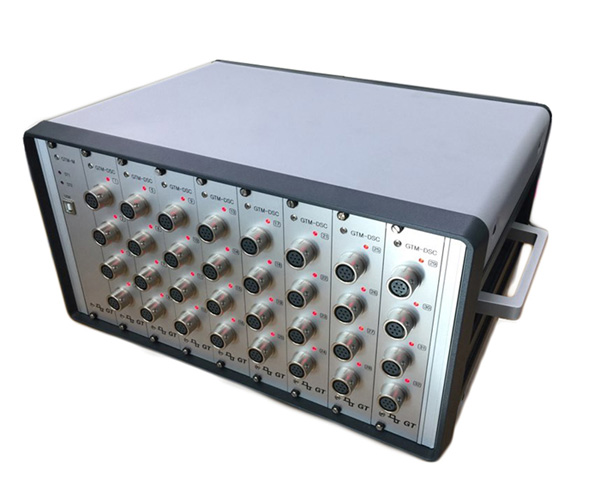

PC Connected Data Logger
【多頻道資料擷取器】
-
Multi-channel/PC-connected dynamic data
logger
-
Real-time measurement using USB port
-
Built channel in slot type, 4-channel per
slot
-
350(max .16 Channel), 360(max. 40 Channel),
expansion(128 Channel)
-
1KHz measurement per channel
-
Able to connect with 1-gauge, 3-wire,2-gauge
or 4-gauge for each channel
-
Not need a separate bridge box due to
built-in 120Ω/350Ω bridge circuit
【型錄下載】Download Data Sheet |
|
|
 |

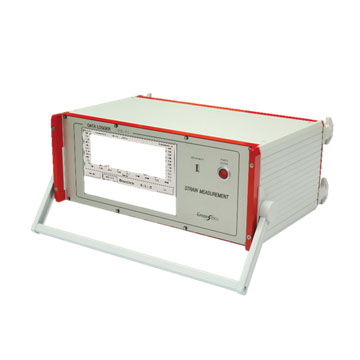

Touchable PC type Data Logger
【觸控式多頻道資料擷取器】
-
Multi-channel/multi-function static and
dynamic data logger
-
10.2" big-sized touchable screen, 16G SD
data memory
-
Built channel in slot type, 4-channel per
slot
-
Built-in data logger expansion port
-
Automatic zero point adjustment by Autozero
button
-
Able to select sensor type, power supply,
amplification ratio of amplifier or filter frequency
-
USB interface, real-time measurement by
connecting multiscan software
【型錄下載】Download Data Sheet |
|
|
 |

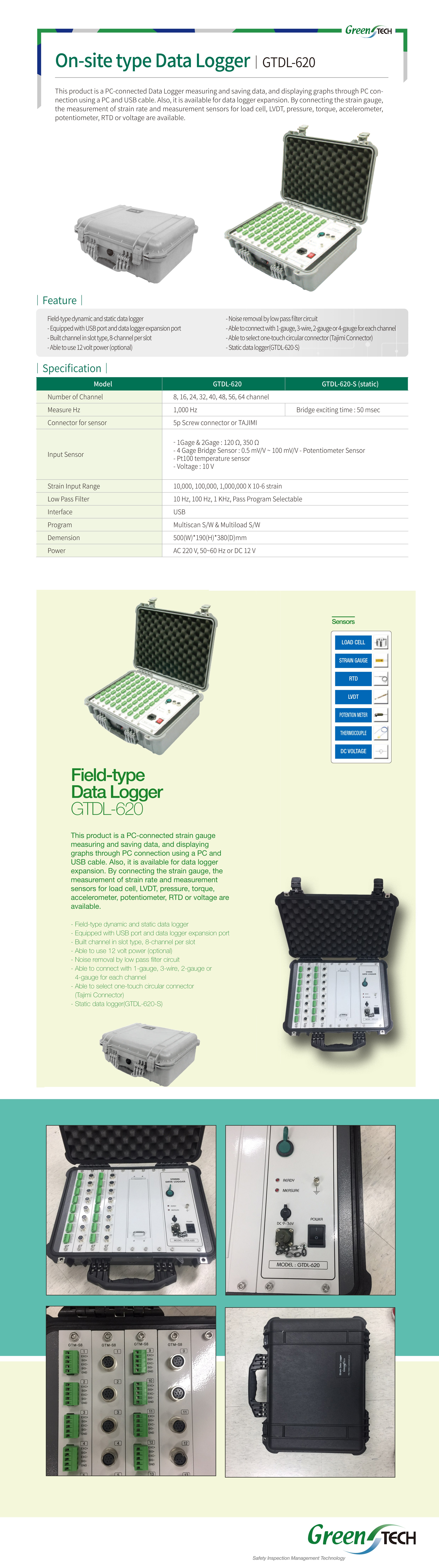

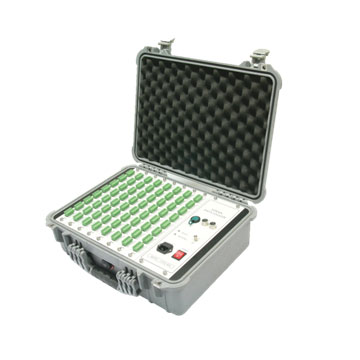

Touchable & On-site type Data Logger
【觸控式多頻道資料擷取器】
-
Field-type multi-function static and dynamic
data logger
-
Good mobility and solidity in a waterproof
case form
-
Built channel in slot type, 8-channel per
slot
-
Able to use 12 volt power (optional)
-
Noise removal by low pass filter circuit
-
Automatic zero point adjustment by Autozero
button
-
Static data logger (GTDL-600-S)
【型錄下載】Download Data Sheet |
|
|
|
 |

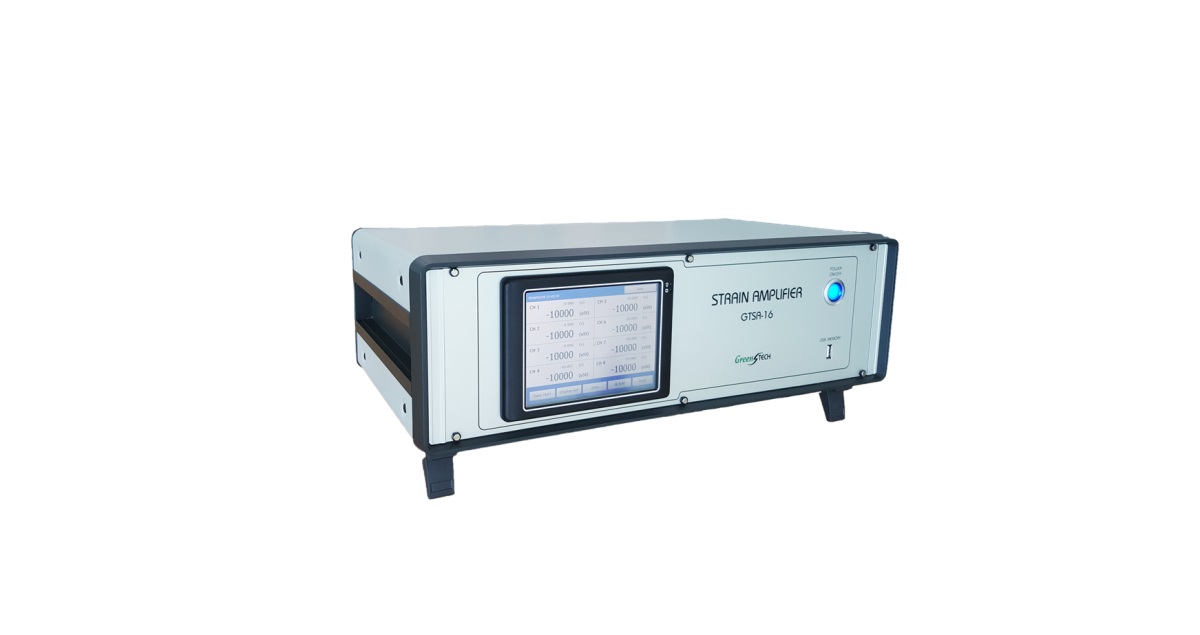

Strain Amplifier
【應變計放大器】
-
Simultaneously verifying real data values
and output voltage values
-
Setting the type of sensor, sensor
specification, decimal places or units on touchable screen
-
Not need a separate bridge box due to
built-in 120 Ω/350 Ω bridge circuit
-
D/A offset and D/A span value adjustment
-
Able to select sensor type, power supply,
amplification ratio of amplifier or filter frequency
-
Built channel in slot type, 2-channel per
slot
-
Two-way circular connector and 5-pin green
connector
【型錄下載】Download Data Sheet |
|
|
|
|
|
|
|
|
