Instrumentation
【In-Line
放大器】
|
種類 |
型號 |
圖片 |
描述 |
| DC Excitation Strain
Gage Conditioner |
7528 |
 |
5V Excitation, 12-28
supply.
【型錄下載】Download Data Sheet |

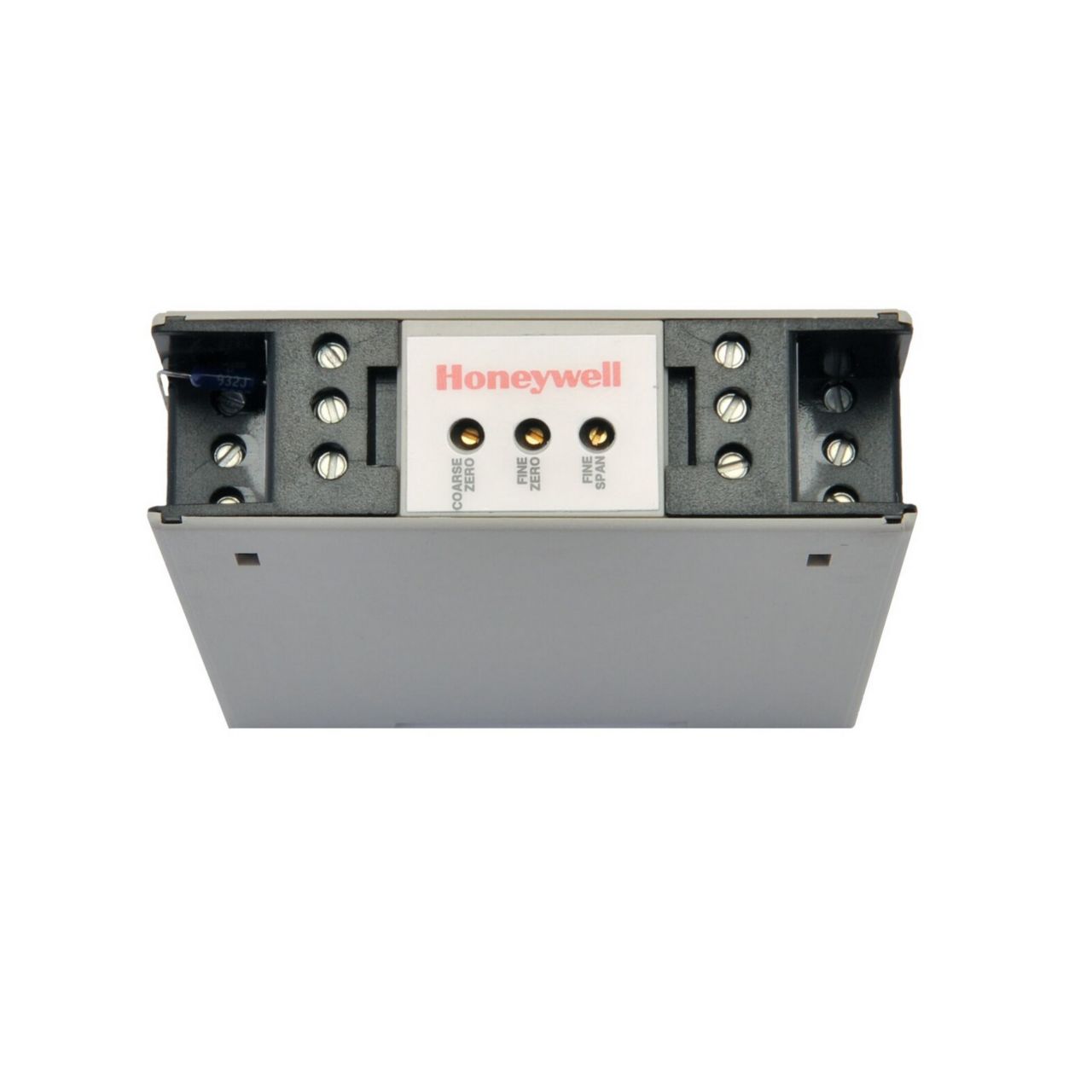

| DIN Rail Mount,
0±5VDC, 3-wire |
DV-05 |
 |
Convenient DIN rail
mount; in-line amplifiers for strain gauge
transducers and AC LVDTS; RFI, ESD protected
【型錄下載】Download Data Sheet |
| DIN Rail Mount,
4-20mA, 3-wire |
DA-05 |
|
Convenient DIN rail
mount; in-line amplifiers for strain gauge
transducers and AC LVDTS; RFI, ESD protected
【型錄下載】Download Data Sheet |
| DIN Rail Mount,
0±10VDC, 3-wire |
DV-10 |
|
Convenient DIN rail
mount; in-line amplifiers for strain gauge
transducers and AC LVDTS; RFI, ESD protected
【型錄下載】Download Data Sheet |

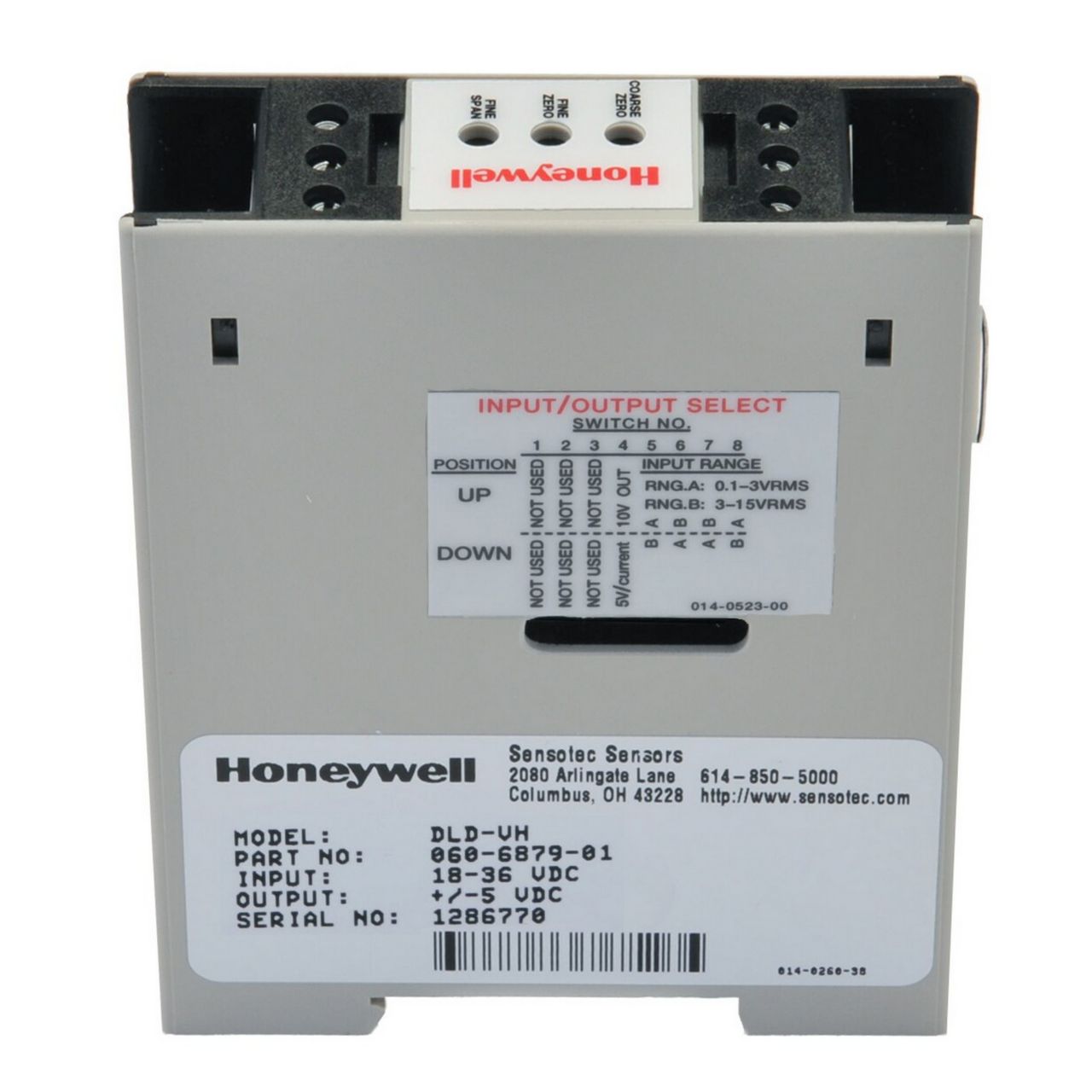

| DIN Rail Mount, LVDT,
Voltage Out |
DLD-VH |
|
Convenient DIN rail
mount; in-line amplifiers for strain gauge
transducers and AC LVDTS; RFI, ESD protected
【型錄下載】Download Data Sheet |
| DIN Rail Mount, LVDT,
4-20mA Out |
DLD-CH |
|
Convenient DIN rail
mount; in-line amplifiers for strain gauge
transducers and AC LVDTS; RFI, ESD protected
【型錄下載】Download Data Sheet |

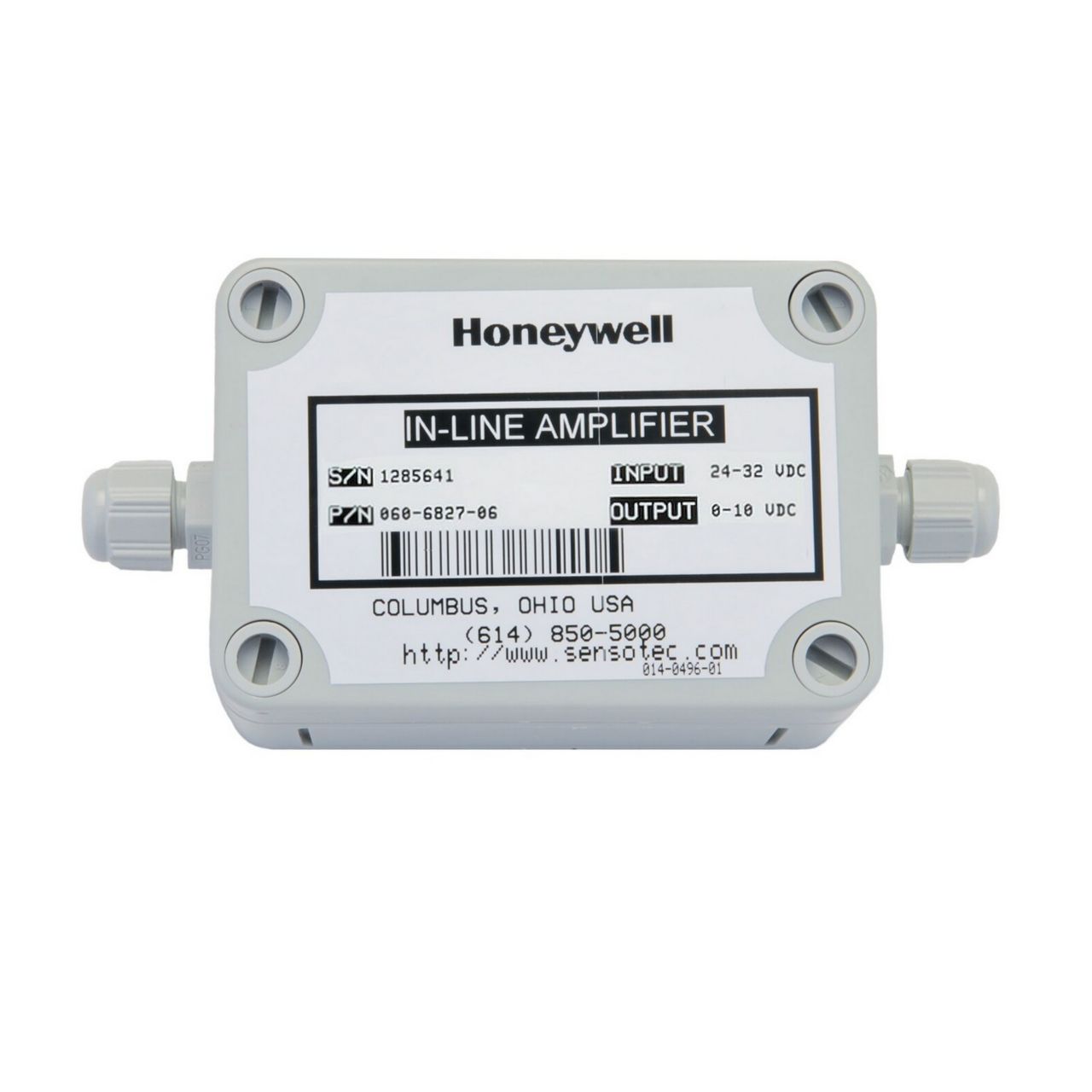

| Universal Bi-Polar
(±5VDC) |
UBP |
 |
U3W, U2W In-line
amplifiers compatible with any strain gauge sensor;
User programmable; Selectable excitation voltages
【型錄下載】Download Data Sheet |

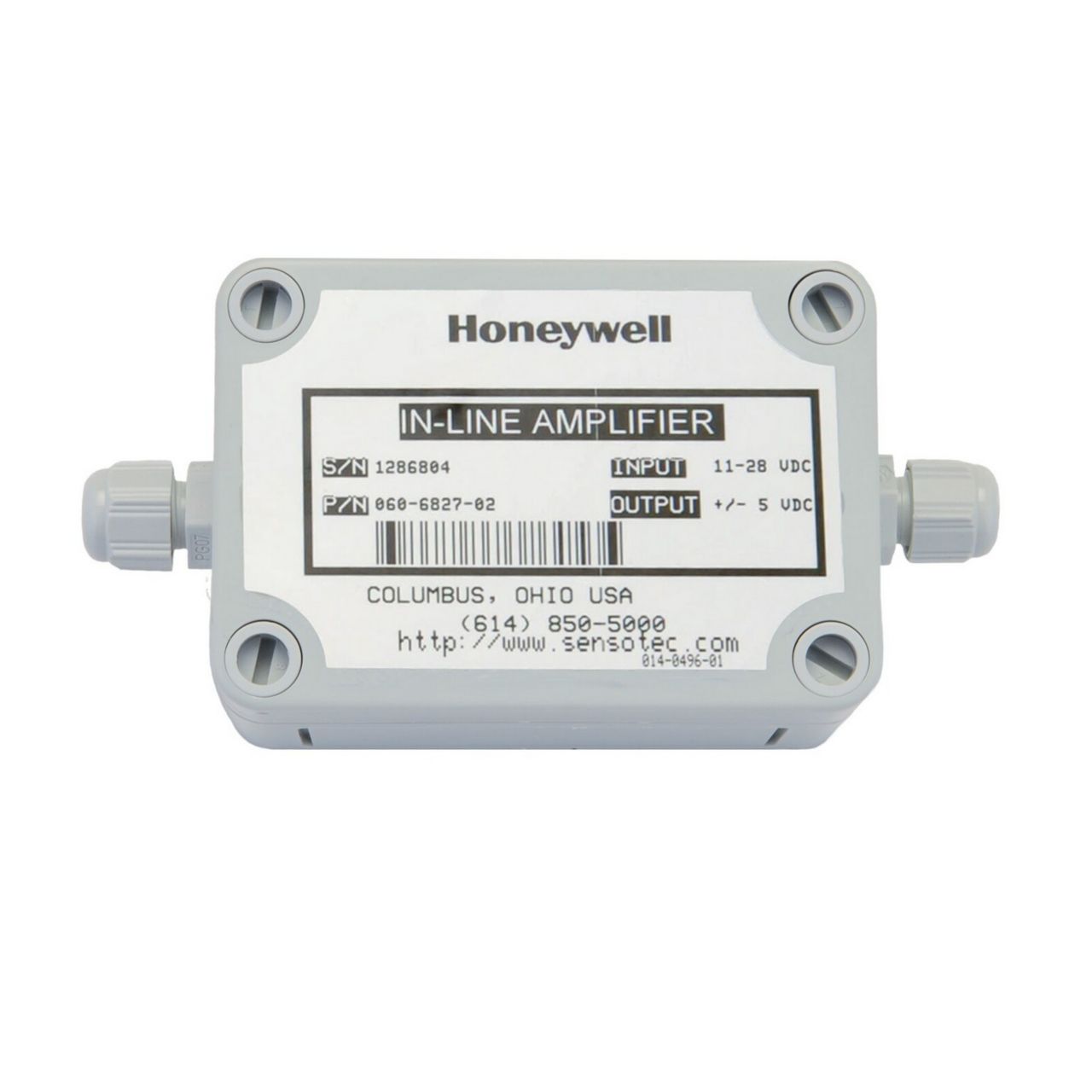

| Universal Vehicle
(±5VDC) |
UV |
|
U3W, U2W In-line
amplifiers compatible with any strain gauge sensor;
User programmable; Selectable excitation voltages
【型錄下載】Download Data Sheet |

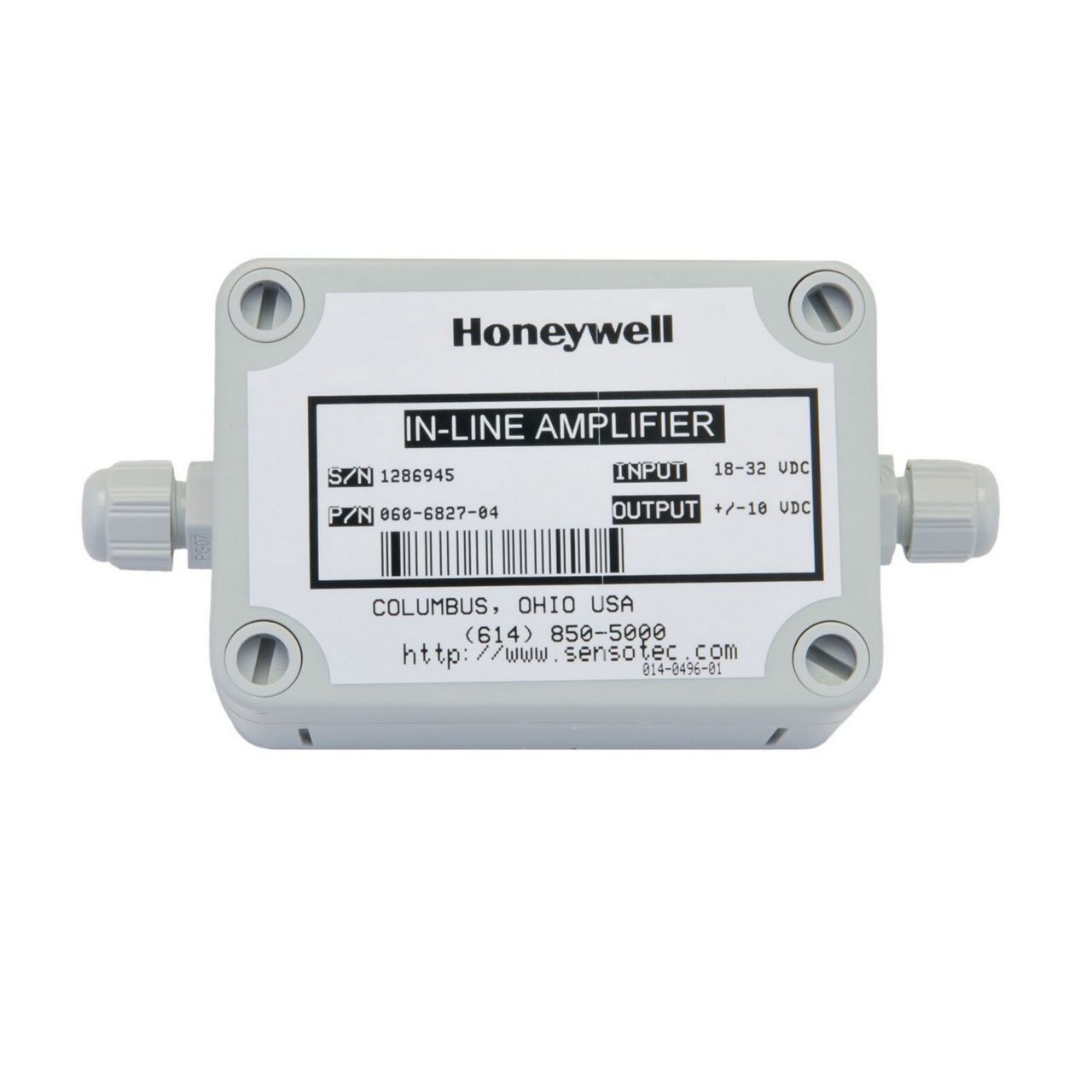

| Universal Vehicle
(0-10VDC) |
UV-10 |
|
U3W, U2W In-line
amplifiers compatible with any strain gauge sensor;
User programmable; Selectable excitation voltages
【型錄下載】Download Data Sheet |

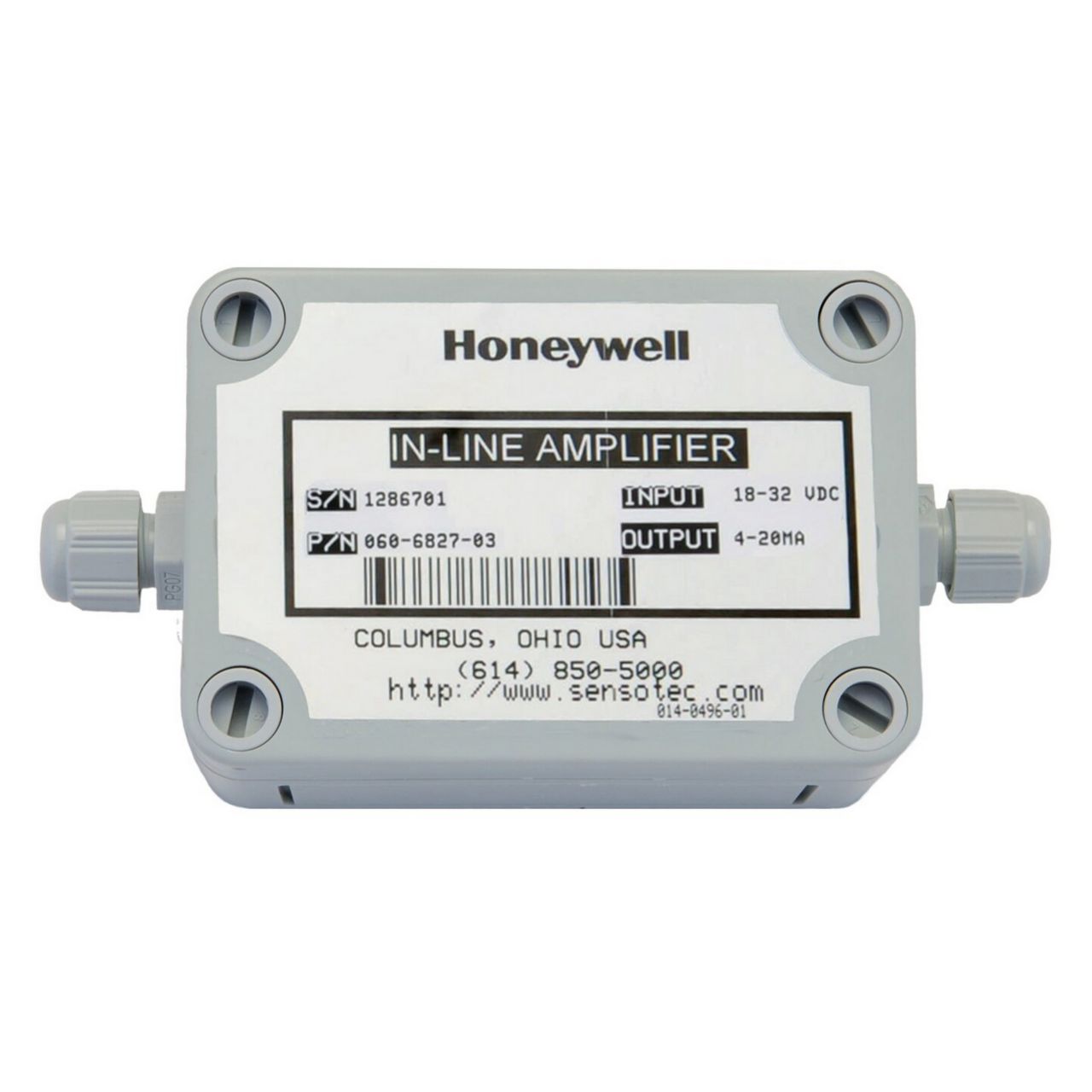

| Universal 3-wire |
U3W |
|
U3W, U2W In-line
amplifiers compatible with any strain gauge sensor;
User programmable; Selectable excitation voltages
【型錄下載】Download Data Sheet |
| Universal 2-wire |
U2W |
|
U3W, U2W In-line
amplifiers compatible with any strain gauge sensor;
User programmable; Selectable excitation voltages
【型錄下載】Download Data Sheet |
| Charge Amplifier |
CA2 |
|
Use with
piezoelectric transducers; 3 Hz to 30 Hz
【型錄下載】Download Data Sheet |
| Charge Amplifier |
CA3 |
|
Use with
piezoelectric transducers; ~DC to 30 Hz
【型錄下載】Download Data Sheet |
【電源供應器】
DC Power Supply
for Amplified Transducers
【直流電源供應器】
The DC power
supply provides regulated outputs ranging from 10 to 28 VDC
and output currents to 600 milli-amps. The terminal strip
connections eleminate soldering. The DC power supply
features short cirucit protection, encapsulated
construction, and a cautious design to assure long term
stability. The DC power supply may be used in series, no
derating or heat sinking required.
Constant
Current Power Supply
【定電流】
The constant
current power supply can be used for PEC series
accelerometers. The power supply uses 9 VDC batteries, has a
low battery indicator, and has an adjustable drive current.
|
種類 |
型號 |
圖片 |
描述 |
| Constant Current
Power Supply |
CC2 |
|
Regulated; miniature
size, terminal strip connection
【型錄下載】Download Data Sheet |
| DC Power Supply |
N/A |
 |
For PEC Series
accelerometers; Battery powered; Adjustable drive
current
【型錄下載】Download Data Sheet |
【多頻道】
|
種類 |
型號 |
圖片 |
描述 |
|

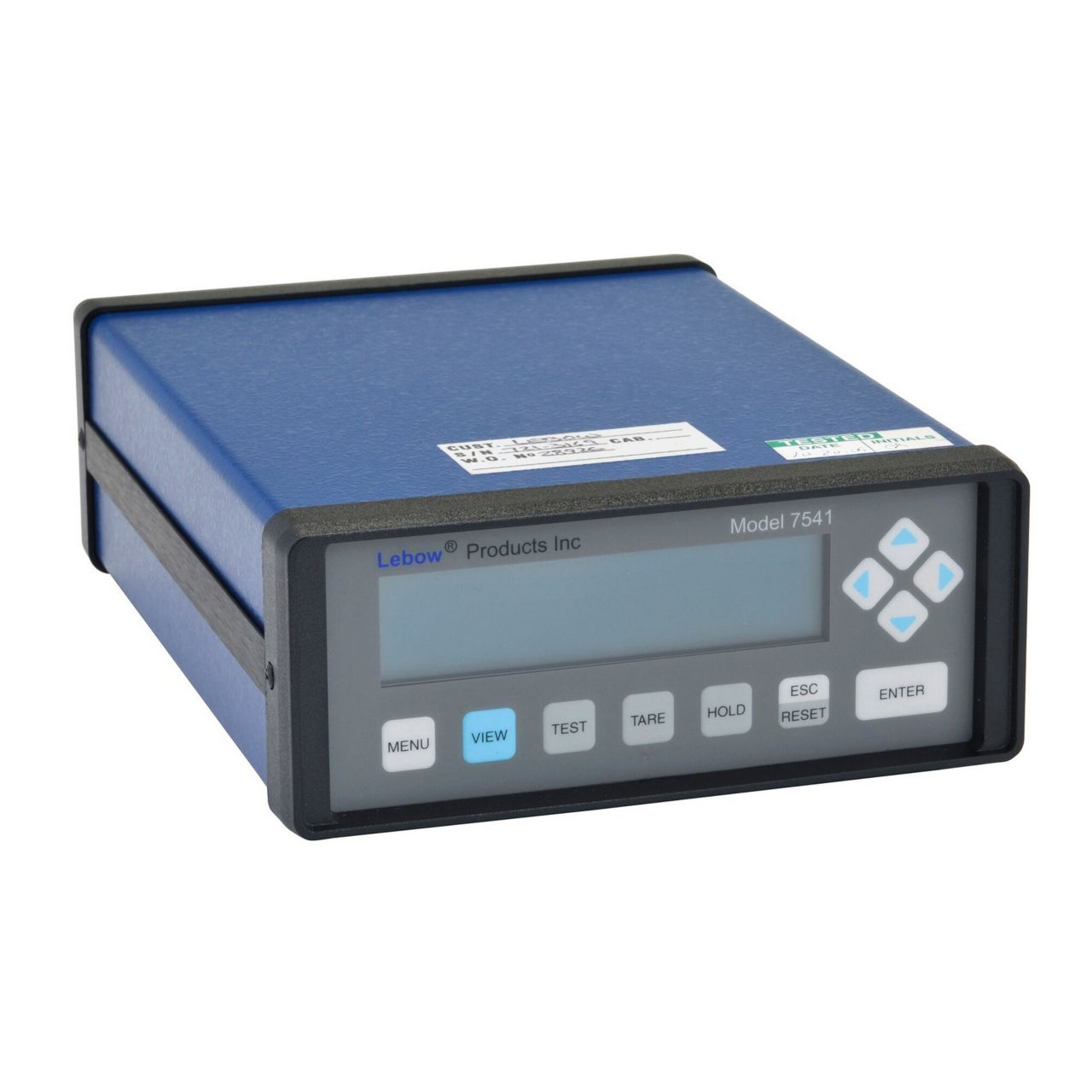

Unampliied |
7541-102 |
 |
2,000
samples/sec. for torque, head or drawbar force
input, - 1 millisecond response for speed
【型錄下載】Download Data Sheet |
|
Unampliied |
7541-105 |
|
Torque,
RPM & Horsepower display (DC)
【型錄下載】Download Data Sheet |
| Rotary
Transformer |
7541-112 |
|
Dual
Display (AC)
【型錄下載】Download Data Sheet |
| Rotary
Transformer |
7541-115 |
|
Torque,
RPM & Horsepower display (AC)
【型錄下載】Download Data Sheet |
|
Up to 14 Channels |
SC1000 |
 |
Automatic set-up,
calibration and scaling with sensor; 1 to 14
channels; 12 to 18 bit resolution; EMI and RFI
protected; SC1000, SC2000, SC2001 signal conditioner
indicators have dual-line display
【型錄下載】
SC1000:
Download Data Sheet
SC2000:
Download Data Sheet
SC2001:
Download Data Sheet
SC3004:
Download Data Sheet |
| SC2000 |
| SC2001 |
| SC3004 |
【單頻道】
|
種類 |
型號 |
圖片 |
描述 |
| Strain Gage
Transducer Indicator |
7558 |
 |
5 Digit LED Display,
Isolated Analog Output 1/8 DIN Size, Min & Max Peak
Detection, 16 Point Linearization
【型錄下載】Download Data Sheet |
| Signal Conditioner |
7541-101 |
|
2,000 samples/sec.
for torque, head or drawbar force input, 1
millisecond response for speed
【型錄下載】Download Data Sheet |
| Rotary Transformer,
AC LVDT |
7541-111 |
|
2,000 samples/sec.
for torque, head or drawbar force input, 1
millisecond response for speed
【型錄下載】Download Data Sheet |

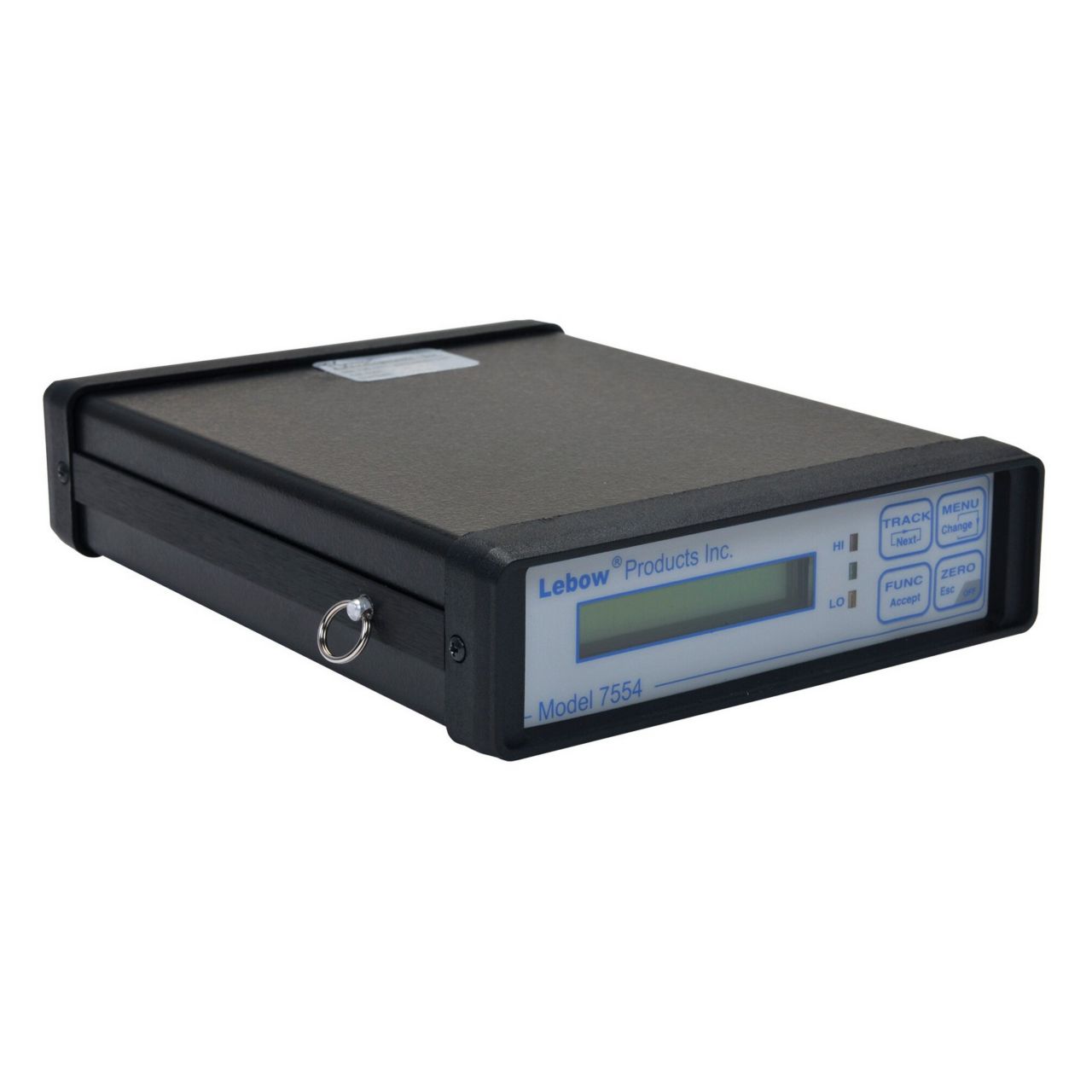

| Socket Wrench Torque
Sensor |
7554 |
 |
Torque to turn,
Force displacement, Auto ID capability, battery
powered
【型錄下載】Download Data Sheet |
|
Self-Calibrating |
SC1000 |
|
Automatic set-up, calibration and scaling with
sensor; 1 to 14 channels; 12 to 18 bit resolution;
EMI and RFI protected; SC1000, SC2000, SC2001 signal
conditioner indicators have dual-line display
【型錄下載】
SC1000:
Download Data Sheet
SC2000:
Download Data Sheet
SC2001:
Download Data Sheet
SC3004:
Download Data Sheet |
| SC2000 |
| SC2001 |
| SC3004 |

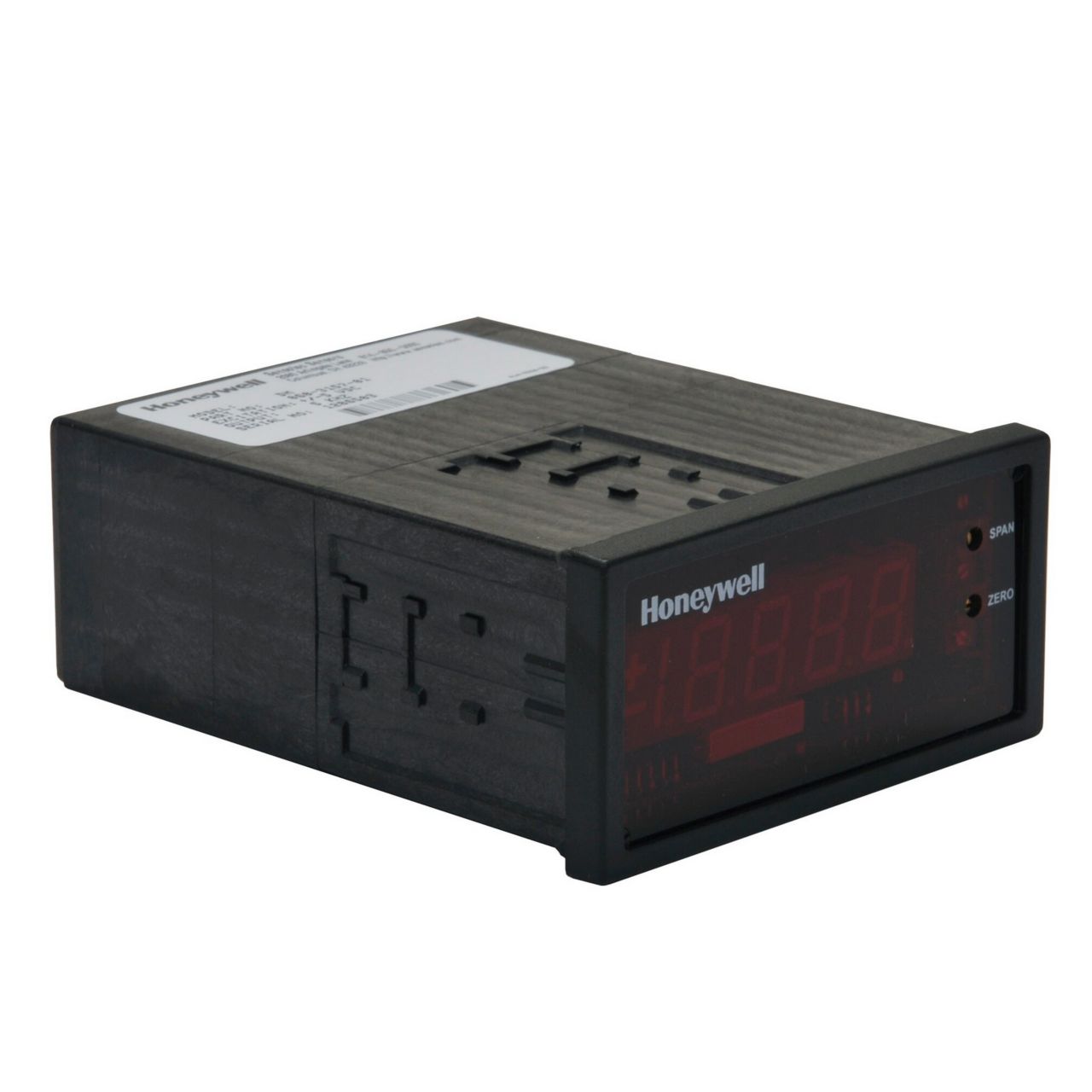

| LVDT, VRT |
DM |
 |
Single Channel
Demodulators used with LVDTS or VRTS
【型錄下載】Download Data Sheet |
| Amplified Sensor |
7559 |
|
High level DC input,
Programmable Display
【型錄下載】Download Data Sheet |

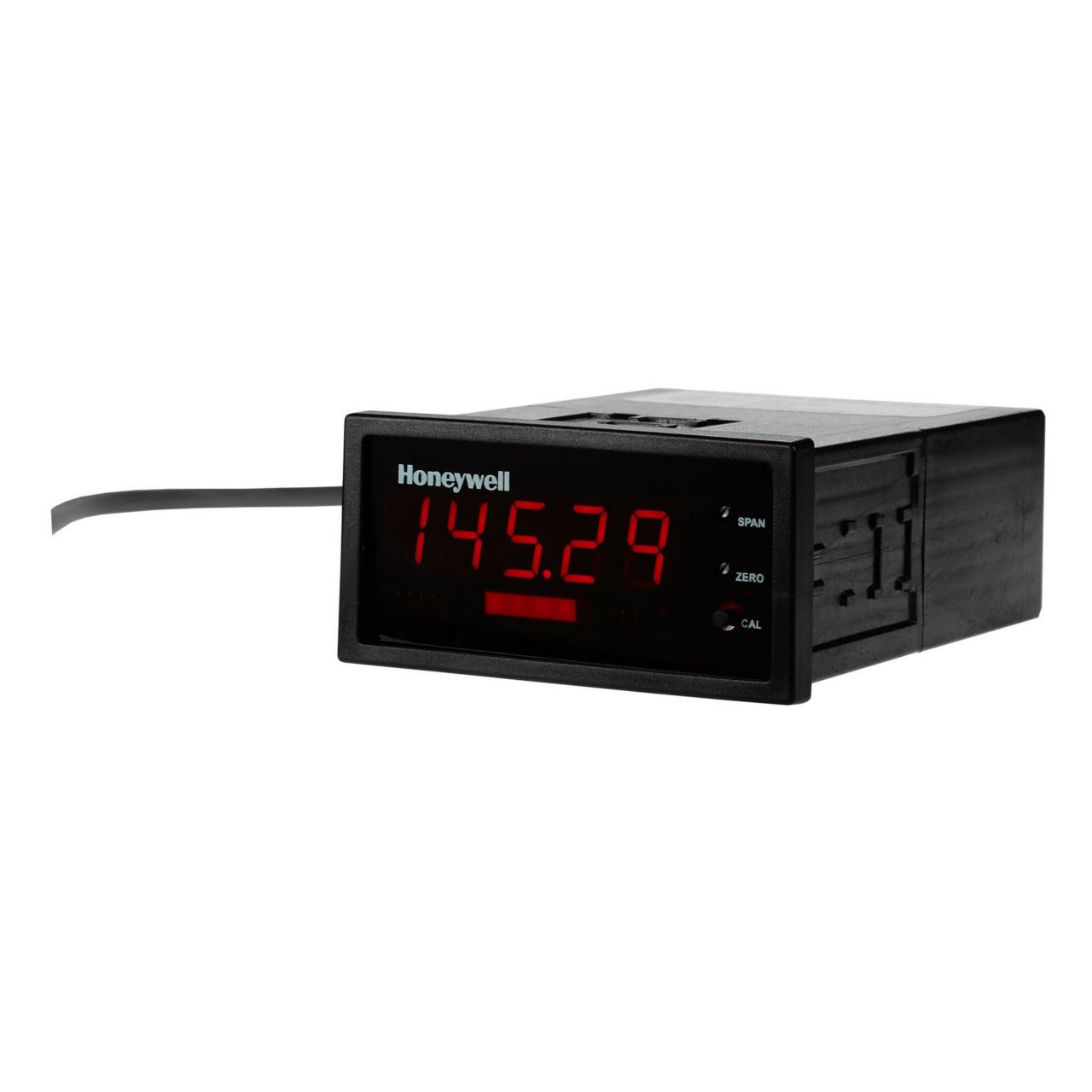

| Amplified Cell
Indicator |
GM-A |
 |
Single channel
signal conditioner indicators with large 0.56"
readout; 20000 count resolution; 4 1/2 digit LED
display; Short circuit protected
【型錄下載】Download Data Sheet |
| Full Signal
Conditioner |
GM |
|
Single channel
signal conditioner indicators with large 0.56"
readout; 20000 count resolution; 4 1/2 digit LED
display; Short circuit protected
【型錄下載】Download Data Sheet |
|
Microprocessor Deluxe |
SC1000 |
|
Automatic set-up, calibration and scaling with
sensor; 1 to 14 channels; 12 to 18 bit resolution;
EMI and RFI protected; SC1000, SC2000, SC2001 signal
conditioner indicators have dual-line display
【型錄下載】
SC1000:
Download Data Sheet
SC2000:
Download Data Sheet
SC2001:
Download Data Sheet
SC3004:
Download Data Sheet |
| SC2000 |
| SC2001 |
| SC3004 |
|
Multi-Function Conditioner |
SC1000 |
|
Automatic set-up, calibration and scaling with
sensor; 1 to 14 channels; 12 to 18 bit resolution;
EMI and RFI protected; SC1000, SC2000, SC2001 signal
conditioner indicators have dual-line display
【型錄下載】
SC1000:
Download Data Sheet
SC2000:
Download Data Sheet
SC2001:
Download Data Sheet
SC3004:
Download Data Sheet |
| SC2000 |
| SC2001 |
| SC3004 |

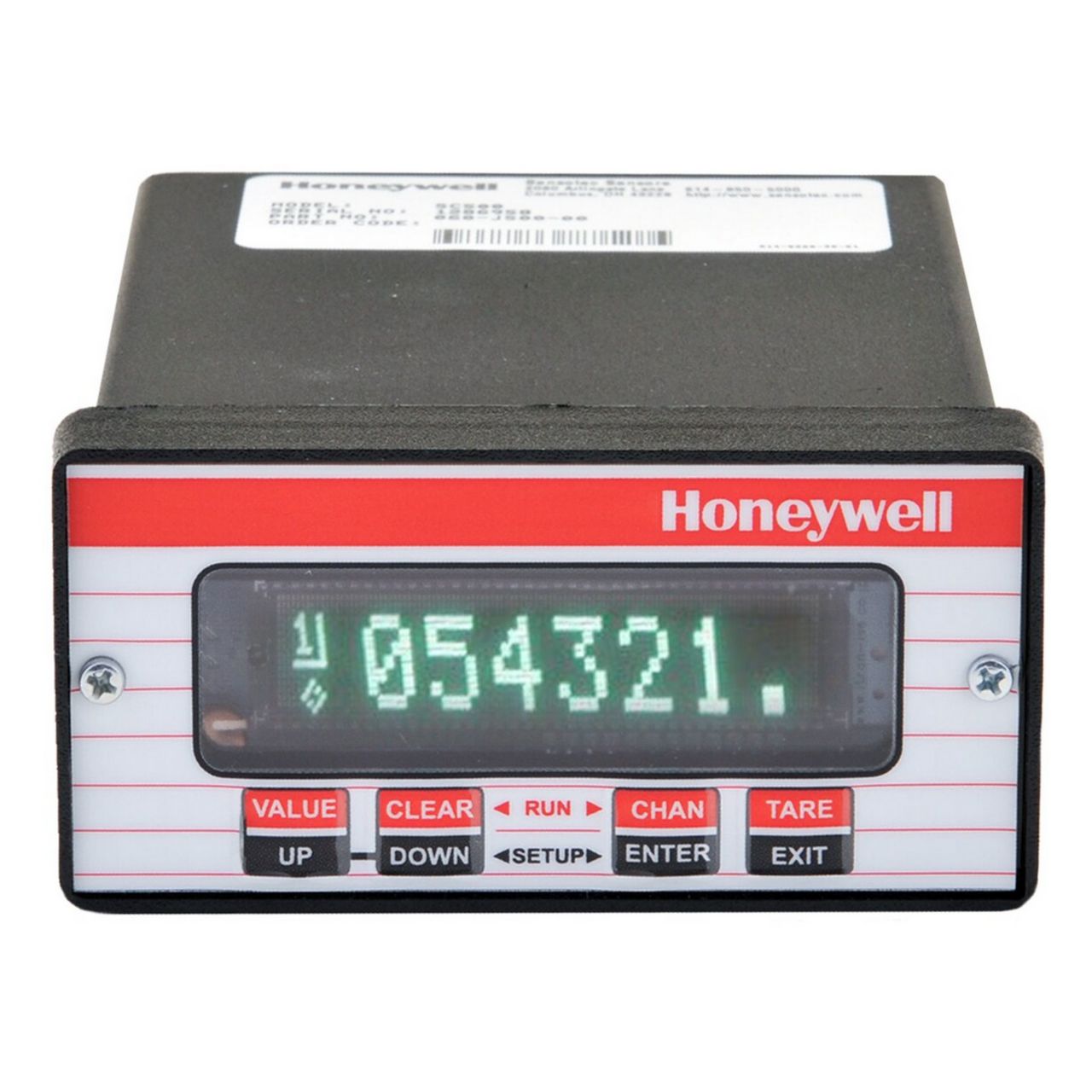

| Single Channel |
SC500 |
|
Automatic set-up,
calibration and scaling with sensor; single channel;
15 bit resolution; Field-selectable calibration;
compact 1/8 DIN case; AC or DC.
【型錄下載】Download Data Sheet |
| Unamplified Load
Cells |
3170, 3270 |
 |
high level ANALOG
OUTPUTS, selectable low-pass active filtering,
built-in regulated excitation with remote sensing
【型錄下載】Download Data Sheet |
【手持式儀器】
Models NK, HH,
and 7561-PSD are portable instruments designed to meet your
needs in the field. The model NK features a 4-1/2 digit
accuracy and the smaller model HH features a 3 1/2 digit
accuracy. Each instrument is designed for use in remote
field operations as portable calibration or readout devices.
Shunt calibration offers the operator quick field setup with
a minimum of warm up. The model NK is enclosed in a durable
weatherproof aluminum carrying case, and the model HH is a
smaller handheld device. A peak/hold feature is optional on
the model NK but standard on the Model HH. Both
instrumentation models are in stock for quick delivery.
|
種類 |
型號 |
圖片 |
描述 |

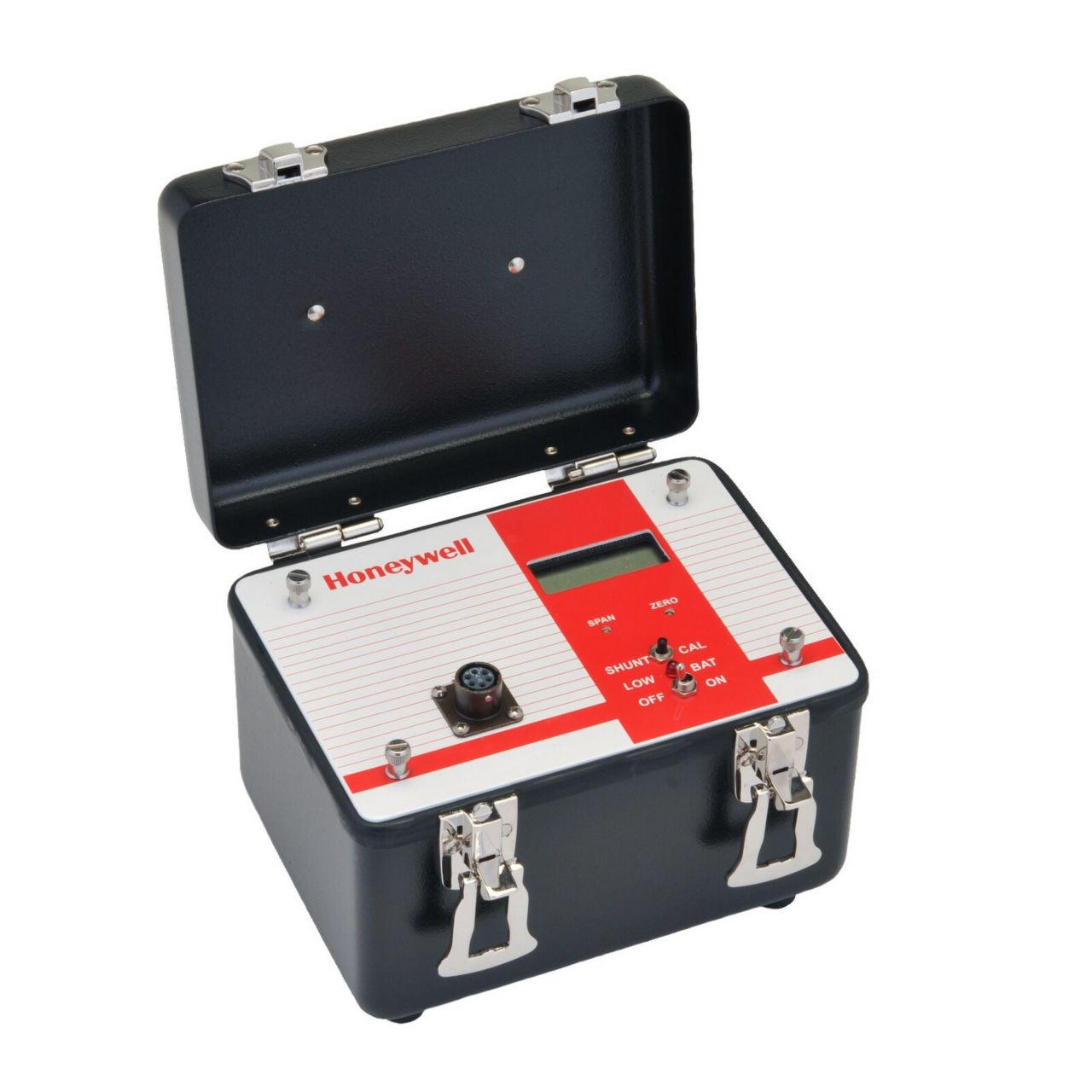

| Hand Held High
Accuracy |
NK |
 |
Portable instruments
with 4-1/2 digit accuracy; Battery operated
【型錄下載】Download Data Sheet |

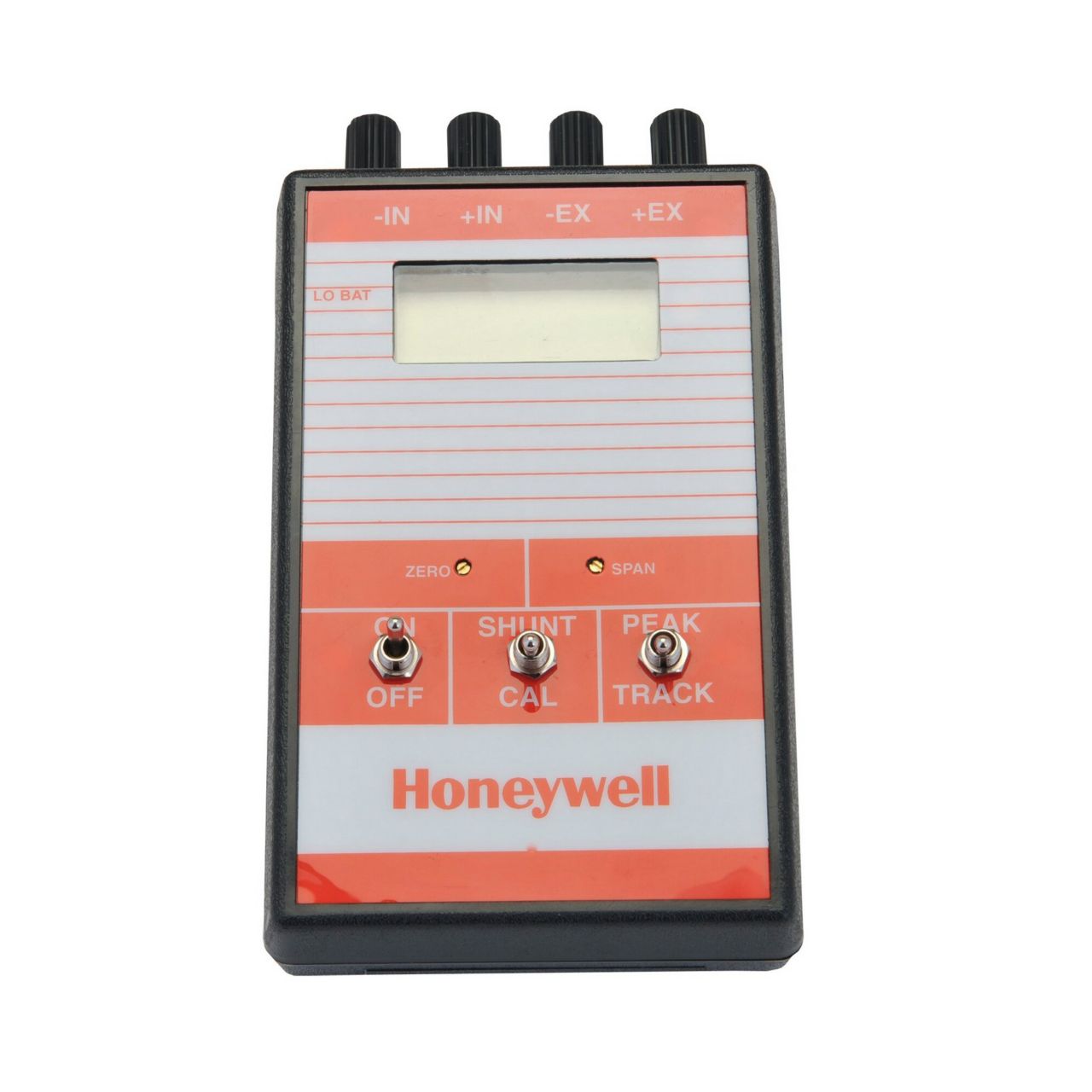

| Hand Held High
Accuracy |
HH |
 |
Portable hand held
instruments with 3-1/2 digit accuracy; Battery
operated
【型錄下載】Download Data Sheet |

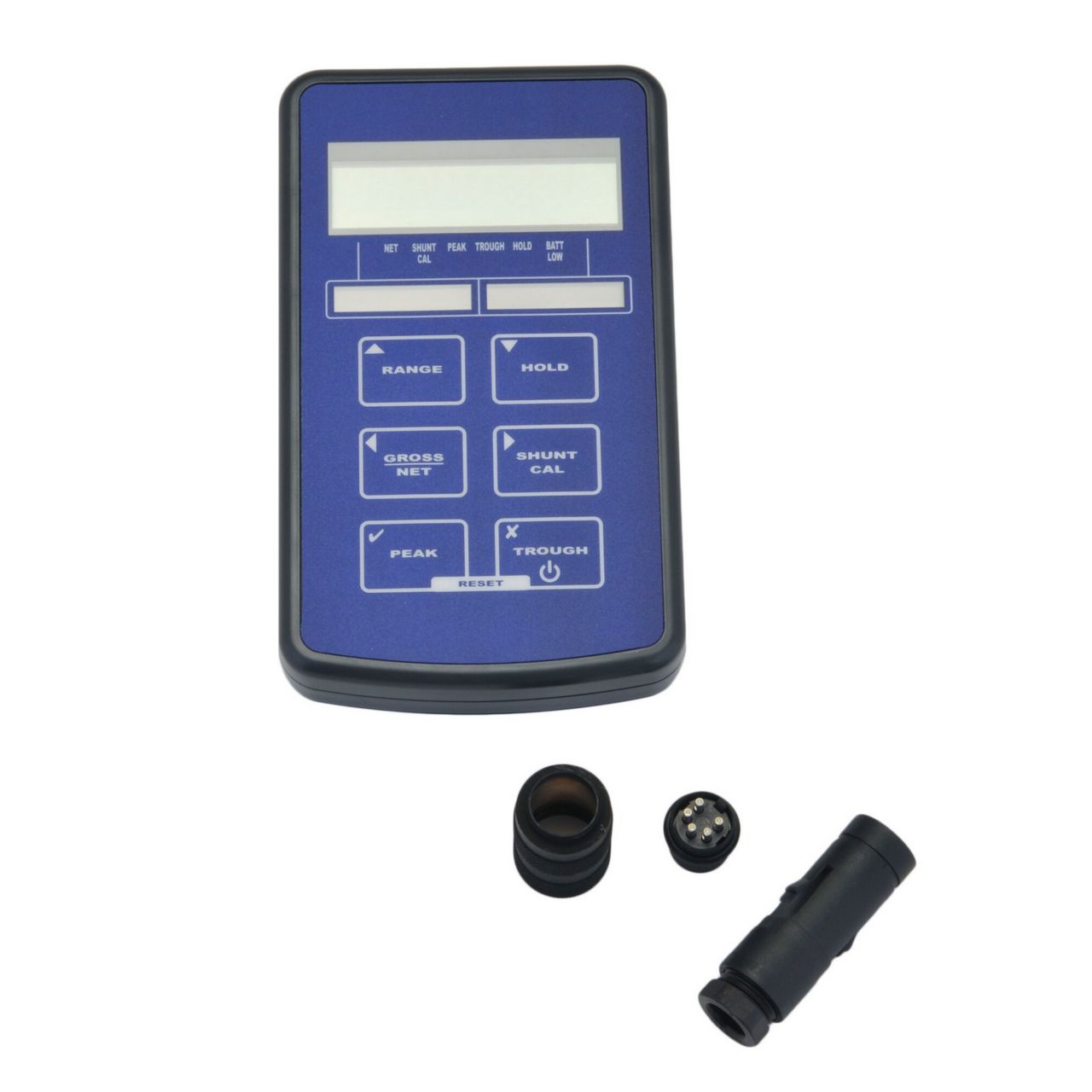

| Hand Held Strain
Gage Conditioner |
7561-PSD |
 |
Battery Powered, 7
1/2 Digit Display
【型錄下載】Download Data Sheet |
【傳感器模擬器-應變計式】

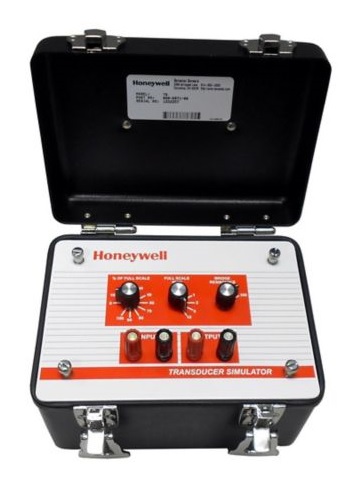

The Model TS is
a strain gage transducer simulator for use in calibrating or
testing pressure, force, torque, or weigh system indicators
and signal conditioning amplifiers. It greatly assists in
trouble shooting and testing of systems that use strain gage
transducers. The model TS simulates either a 350 Ohm or 5000
Ohm strain gage transducer wheatstone bridge with precise
adjustments for transducer sensitivities in five ranges from
0.5 to 10 millivolts per volt. The output adjustments are in
10% increments from 0% to 100%. There are no batteries to
replace because the excitatiion voltage is supplied by the
instrument to be calibrated.
|
種類 |
型號 |
圖片 |
描述 |
| Strain Gauge
Transducer Simulator |
TS |
 |
Easy to use;
simulates either 350 Ω or 5000 Ω transducer bridge;
rugged weatherproof case; precision wire-wound
resistors
【型錄下載】Download Data Sheet |
|
