Miniature and Subminiature Load Cells
|
In capacities from 50
grams to 10,000 pounds, our miniature and
subminiature load cells come in both tension and
compression models with accuracies to 0.1%. At sizes
down to 0.13 inch high by 0.5 inch diameter, they
can be incorporated into existing machines or any
space-restricted area. Rugged all-welded
construction ensures reliable operation in demanding
applications. Standard operating temperature range
is -65 to 250 degrees Fahrenheit. Temperature
compensation options are available. Standard mV/V or
amplified high-level outputs are available.
|
|
微小荷重元
|
|
Type |
Model # |
Image |
Description |
| Precision,
Tension/Compression |

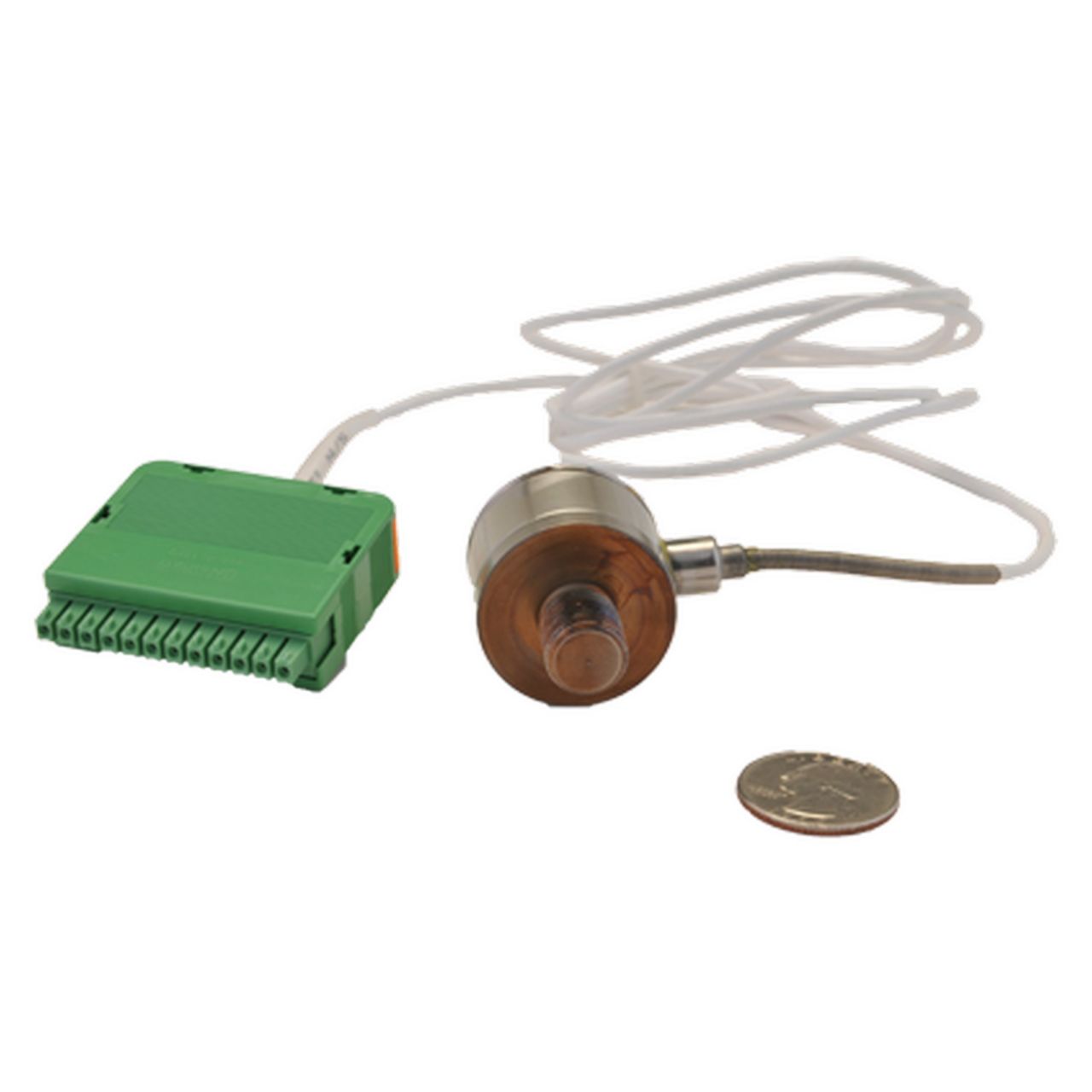

31 |
 |
Welded Stainless
Steel; Tension/Compression miniature load cell; 50
grams to 10,000 lbs.; Amplified Output
Option
【型錄下載】Download Data Sheet |
| Precision,
Tension/Compression |
34 |
 |
Welded
Stainless Steel; Tension/Compression miniature load
cell; 50 grams to 10,000 lbs.;
Amplified Output Option
【型錄下載】Download Data Sheet
【型錄下載】Low Range Modification Data Sheet |
| Low Profile, Low
Cost, Compression |
53 |
 |
Low Cost load cell;
0.25% Non-Linearity; 5 to 50,000 lbs.
【型錄下載】Download Data Sheet |
|
迷你型荷重元
|
|
種類 |
型號 |
圖片 |
描述 |
| Compression Only |
13 |
 |
Compression load
cell; Ranges from 0-50 grams with 3/8" Diameter
【型錄下載】Download Data Sheet |
| Tension/Compression |
11 |
 |
Tension/Compression
load cell; Ranges from 0-50 grams with 1/2" Diameter
【型錄下載】Download Data Sheet |
| High Range,
Compression Only |
LFH-71 |
 |
Compression load
cell; Ranges from 250 lbs. with 1/2" Diameter
【型錄下載】Download Data Sheet |
| Compression Only |
3630 |
 |
Compression load
cell; Capacity range: 1,000 through 10,000 lbs.
【型錄下載】Download Data Sheet |
| Bolt Force Sensors |
3711 |
 |
* Replaced by Model 3719
* |
| Bolt Force Sensors |
3719 |
 |
|
|
