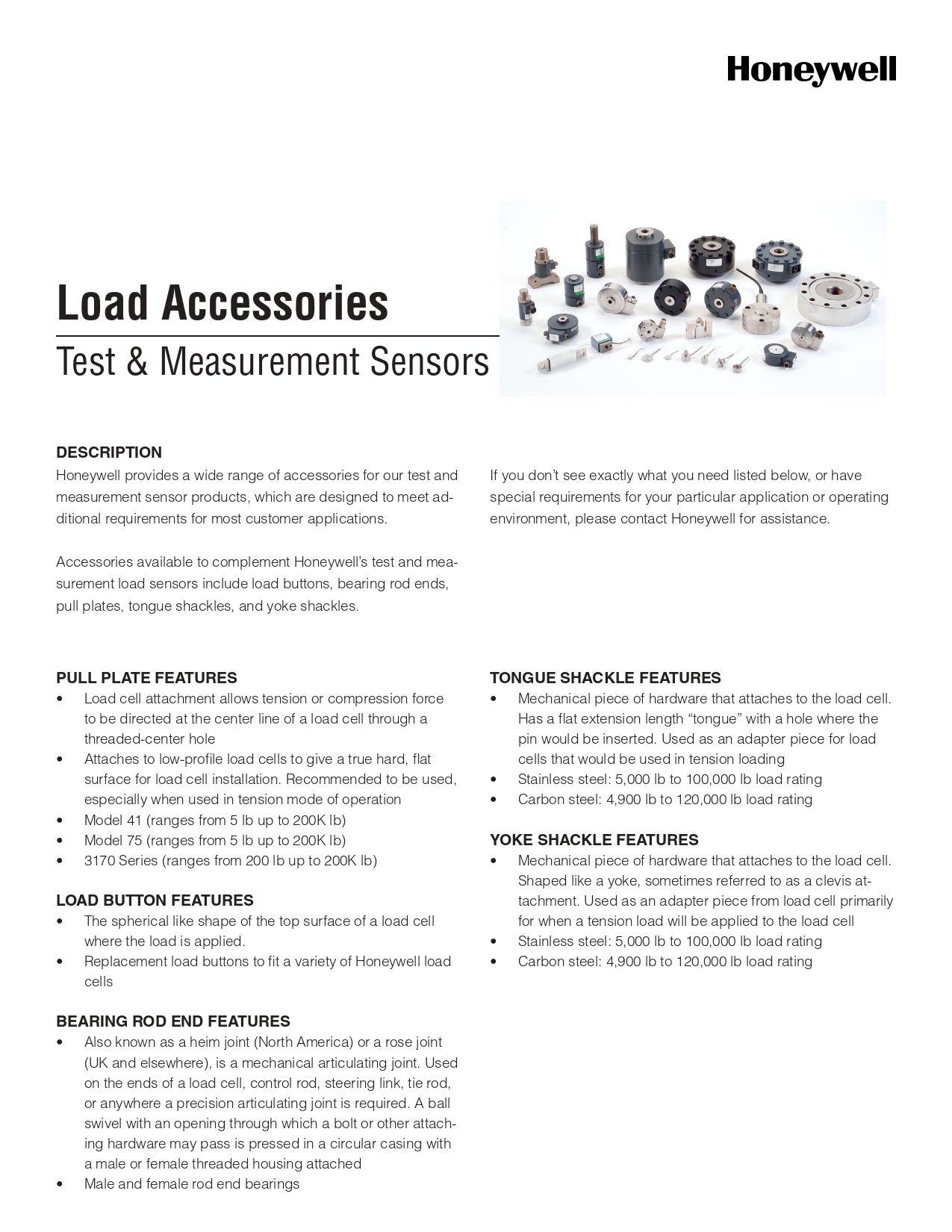

荷重元 ●
Honeywell Sensotec - Load
Cell ●
|
|
|
|
Accessories
| Mating Connectors
and Cable Assemblies
Mating Connector
Selection Chart
|
| Your
Transducer Electrical Termination |
Mating
Connector Only |
Unamplified Output |
Voltage
Output |
3-wire Current Output |
| 6 Cond* |
4 Cond* |
| |
Order Code
|
Order Code
|
Order Code
|
Order Code
|
Order Code
|
| PT1H-10-6P |
AA111 |
AA112 |
AA113 |
AA114 |
AA115 |
| MS3102E-14S-6P |
AA121 |
AA122 |
AA123 |
AA124 |
AA125 |
| DR-4S-4H |
AA141 |
N/A |
AA143 |
N/A |
N/A |
| PT1H-10-6P(250-400 F) |
AA151 |
AA152 |
AA153 |
N/A |
N/A |
| * Where a distance of 35 ft or
more separates the readout device and the
transducer, remote voltage sensing is recommended
(Model NK or SC) Use 6 conductor cable in this case.
Mating Connector Description Table
|
|
Order Code
|
Model
|
Description
|
| AA111 |
PTO6A-10-6S |
mating connector |
| AA112 |
PTO6A-10-6S |
mating connector with 50 ft of 6
conductor cable |
| AA113 |
PTO6A-10-6S |
mating connector with 15 ft of 4
conductor cable |
| AA114 |
PTO6A-10-6S |
mating connector with 15 ft of 6
conductor cable |
| AA115 |
PTO6A-10-6S |
mating connector with 15 ft of 5
conductor cable |
| AA116 |
PTO6A-10-6S |
mating connector with 15 ft of 3
conductor cable |
| AA118 |
PTO6A-10-6S |
mating connector, environmental
type |
| AA119 |
PTO6A-10-6P(SR) |
mating connector for Model NK |
| AA121 |
MS3106A-14S-6S |
mating connector |
| AA122 |
MS3106A-14S-6S |
mating connector with 50 ft of 6
conductor cable |
| AA123 |
MS3106A-14S-6S |
mating connector with 15 ft of 4
conductor cable |
| AA124 |
MS3106A-14S-6S |
mating connector with 15 ft of 6
conductor cable |
| AA125 |
MS3106A-14S-6S |
mating connector with 15 ft of 5
conductor cable |
| AA128 |
Turck |
mating connector molded to 15 ft
cable for in-line amplifiers |
| AA131 |
WK-6-21C-3/8 |
mating connector |
| AA132 |
WK-6-21C-3/8 |
mating connector with 50 ft of 6
conductor cable |
| AA133 |
WK-6-21C-3/8 |
mating connector with 15 ft of 4
conductor cable |
| AA134 |
WK-6-21C-3/8 |
mating connector with 15 ft of 6
conductor cable |
| AA135 |
WK-6-21C-3/8 |
mating connector with 15 ft of 5
conductor cable |
| AA141 |
DP-4S-2 |
mating connector |
| AA143 |
DP-4S-2 |
mating connector with 15 ft of 4
conductor cable |
| AA152 |
MS3476L10-6S |
mating connector with 50 ft of 6
conductor cable * |
| AA153 |
MS3476L10-6S |
mating connector with 15 ft of 4
conductor cable * |
| AA155 |
DIN43650 |
"L" plug connector, 2/2 NPTF
(conduit fitting) |
| AA156 |
DIN43650 |
"L" plug connector, PG9 socket
for 4.5 - 7mm cable |
| AA157 |
DIN43650 |
"L" plug connector, PG11 socket
for 6 - 10mm cable |
| AA158 |
064-0435 |
mating connector (BP-50-2) with 5
ft of low noise cable miniature coaxial cable |
| AA159 |
DIN43650 |
"L" plug connector, (AA156) with
15 ft of 4 conductor cable |
| AA160 |
064-0567 |
mating connector (BP-50-2) with 5
ft of miniature coaxial cable (no noise treatment) |
| AA161 |
DIN40050 |
"L" plug connector, PG7 socket
for 3.5 - 6mm cable |
| AA162 |
PCO6A-10-6S |
mating connector |
| AA163 |
PCO6A-10-6S |
mating connector with 15 ft of 6
conductor cable |
| AA165 |
PCO6A-10-6S |
mating connector with 15 ft of
shielded teflon cable (Model PA) |
| AA174 |
MS3106F-10SL-3S |
mating connector |
| AA175 |
MS3106F-10SL-3S |
mating connector with 15 ft of 2
conductor twisted cable (low noise) |
*Designed for high temperature
applications (250-400 F)
Note: Available cable lengths are 15, 25, 50, 75 or
100 ft
Shunt
Calibration Resistors |
|
Order Code
|
Calibration Resistance
|
| AA211 |
59,000 ohm for 2.6 to 3 mV/V
output |
| AA212 |
90,000 ohm for 2 to 2.5 mV/V
output |
| AA213 |
200,000 ohm for less than 2 mV/V
output |

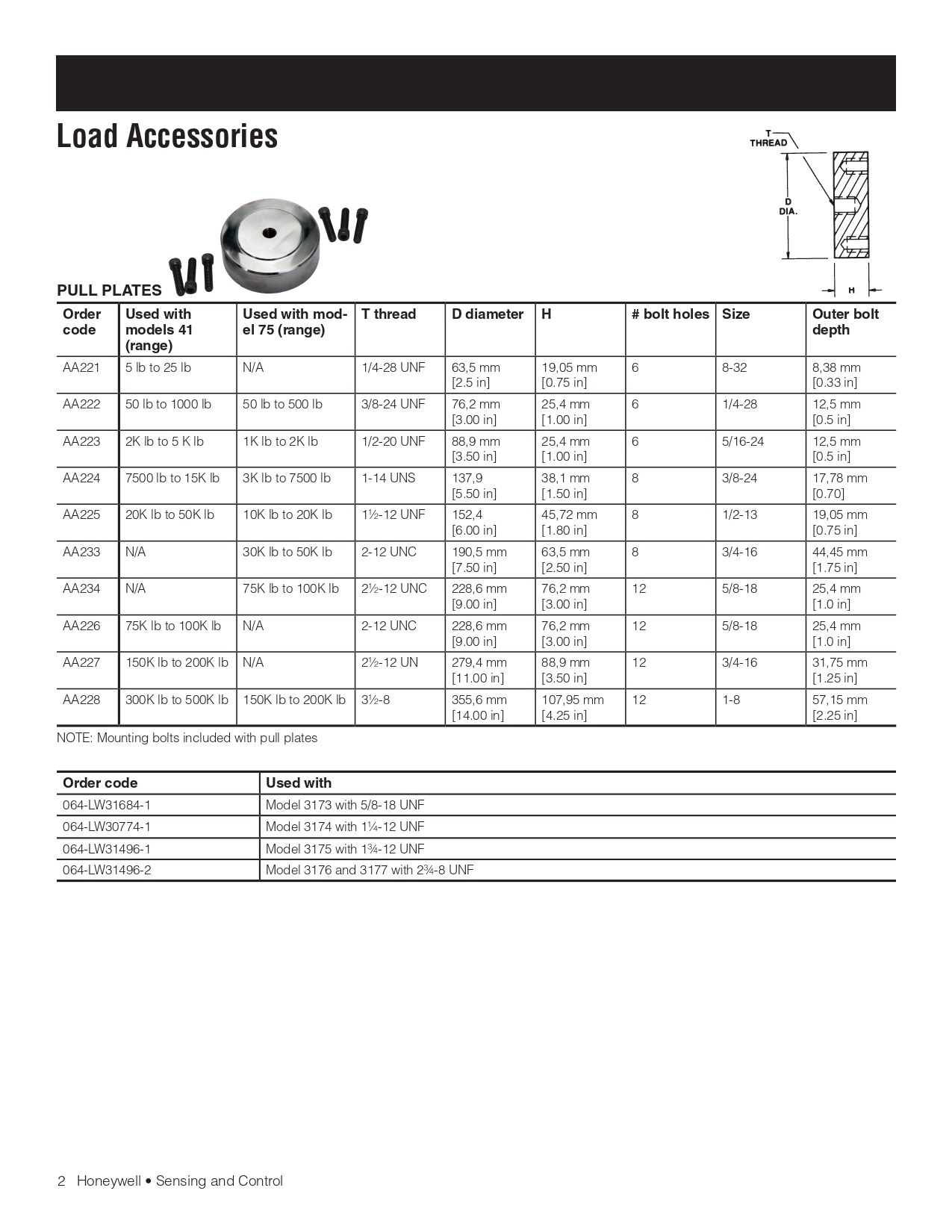

| Pull
Plates |
|
| Order Code |
Used w/Models
41 and 42
(Range in lbs) |
Used w/Model 75
(Range in lbs) |
Thread |
Diameter |
Height |
# Bolt Holes |
Size |
Depth |
| AA221 |
5 to 25 |
N/A |
1/4-28 UNF-2B |
2.50 |
0.75 |
6 |
8-32 |
0.50 |
| AA222 |
50 to 1000 |
50 to 500 |
3/8-24 UNF-2B |
3.00 |
2.00 |
6 |
2/4-28 |
0.50 |
| AA223 |
2K to 5K |
1K to 2K |
1/2-20 UNF |
3.50 |
2.00 |
6 |
5/16-24 |
0.50 |
| AA224 |
7500 to 15K |
3K to 7500 |
1-14 UNS |
5.50 |
2.50 |
8 |
3/8-24 |
0.75 |
| AA225 |
20K to 50K |
10K to 20K |
2 2/2-12 UNF |
6.00 |
2.80 |
8 |
2/2-13 |
2.00 |
| AA233 |
N/A |
30K to 50K |
2-12 UNC |
7.50 |
2.50 |
8 |
3/4-16 |
2.75 |
| AA234 |
N/A |
75K to 100K |
2 1/2-12 UNC |
9.00 |
3.00 |
12 |
5/8-18 |
2.00 |
| AA226 |
75K to 100K |
N/A |
2-12 UNC |
9.00 |
3.00 |
12 |
5/8-18 |
2.00 |
| AA227 |
150K TO 200K |
N/A |
2 1/2-12 UN |
11.00 |
3.50 |
12 |
3/4-16 |
2.00 |
| AA228 |
300K TO 500K |
150K to 200K |
3 1/2-8 |
14.00 |
4.25 |
12 |
2-8 |
2.25 |
Note: Mounting bolts included with pull
plates

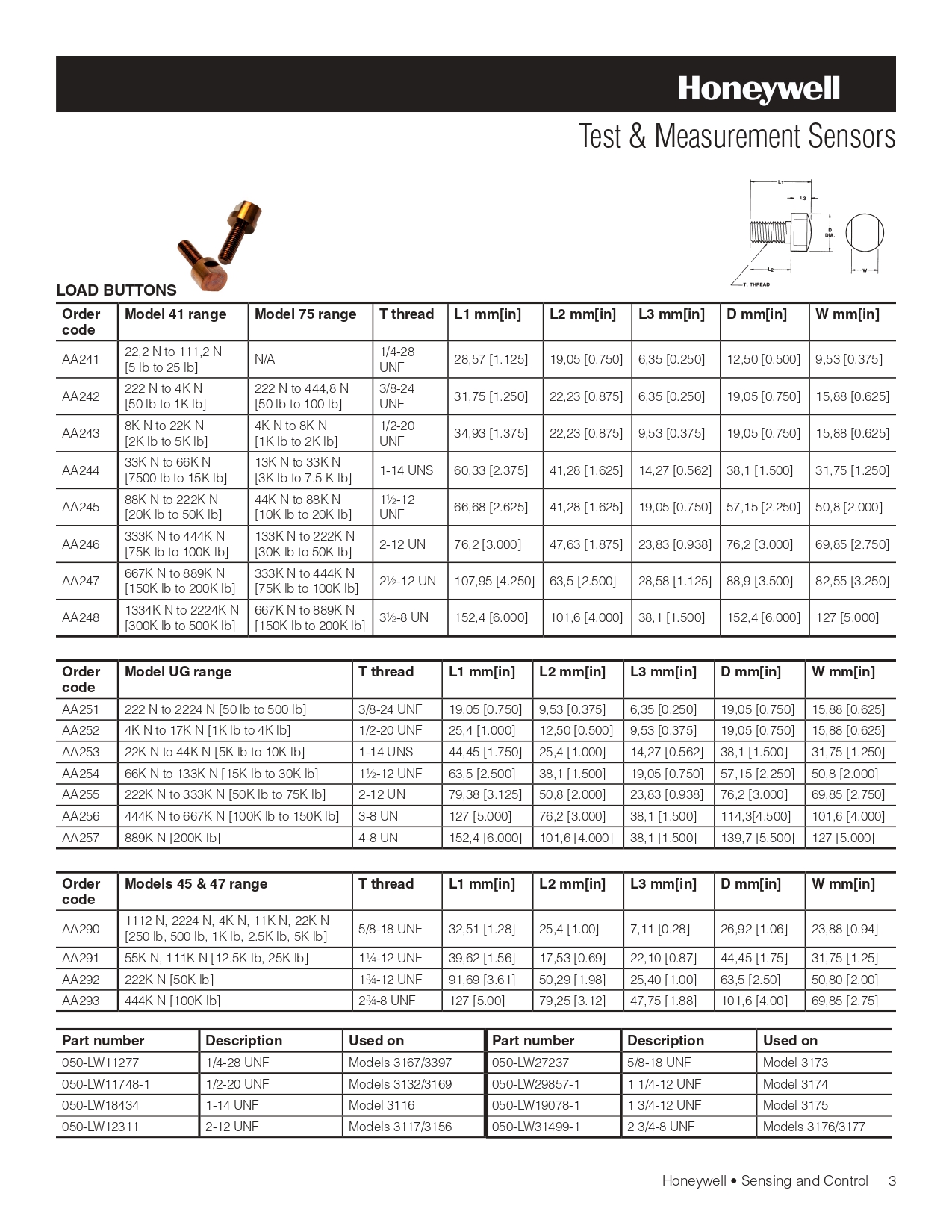

| Load
Buttons |
|
| Order Code |
Model 41 and 42
Range in lbs |
Model 75
Range in lbs |
T |
L1 |
L2 |
L3 |
D |
W |
| AA241 |
5 to 25 |
N/A |
1/4-28 UNF-2B |
2.125 |
0.750 |
0.250 |
0.500 |
0.375 |
| AA242 |
50 to 1K |
50 to 100 |
3/8-24 UNF-2B |
2.250 |
0.875 |
0.250 |
0.750 |
0.625 |
| AA243 |
2K to 5K |
1K to 2K |
1/2-20 UNF |
2.375 |
0.875 |
0.375 |
0.750 |
0.625 |
| AA244 |
7500 to 15K |
3K to 7500 |
1-14 UNS |
2.375 |
2.625 |
0.562 |
2.5 |
2.25 |
| AA245 |
20K to 50K |
10K to 20K |
1 1/2-12 UNF |
2.625 |
2.625 |
0.75 |
2.25 |
2.00 |
| AA246 |
75K TO 100K |
30K TO 50K |
2-12 UN |
3.00 |
2.875 |
0.938 |
3.00 |
2.75 |
| AA247 |
150K TO 200K |
75K TO 100K |
2 1/2-12 UN |
4.25 |
2.5 |
2.125 |
3.5 |
3.25 |
| AA248 |
300K TO 500K |
150K TO 200K |
3 1/2-8 UN |
6.00 |
4.00 |
2.50 |
6.00 |
5.00 |
| Order Code |
Model UG
Range in lbs |
T |
L1" |
L2" |
L3" |
D" |
W" |
| AA251 |
50 TO 100 |
3/8-24 UNF-2B |
0.750 |
0.375 |
0.250 |
0.750 |
0.625 |
| AA252 |
1K TO 4K |
2/2-20 UNF |
2.00 |
0.50 |
0.375 |
0.750 |
0.625 |
| AA253 |
5K TO 10K |
2-14 UNS |
2.75 |
2.00 |
0.562 |
2.50 |
2.25 |
| AA254 |
15K TO 30K |
2 2/2-12 UNF |
2.50 |
2.50 |
0.75 |
2.25 |
2.00 |
| AA255 |
50K TO 75K |
2-12 UN |
3.125 |
2.00 |
0.938 |
3.00 |
2.75 |
| AA256 |
100K TO 150K |
3-8 UN |
5.00 |
3.00 |
2.50 |
4.50 |
4.00 |
| AA257 |
200K |
4-8 UN |
6.00 |
4.00 |
2.50 |
5.50 |
5.00 |
| Order Code |
Models 45 and 47
Range in lbs |
T |
L1 |
L2 |
L3 |
D |
W |
| AA290 |
250; 500; 1K; 2.5K; 5K |
5/8-18 UNF-3A |
2.28 |
2.00 |
0.28 |
2.06 |
0.94 |
| AA291 |
12.5K; 25K |
1-1/4-12 UNF-3A |
2.56 |
0.69 |
2.49 |
2.75 |
2.25 |
| AA292 |
50K |
1-3/4-12 UNF-3A |
3.75 |
2.12 |
2.63 |
2.50 |
2.75 |
| AA293 |
100K |
2-3/4-8 UNF-3A |
5.00 |
3.12 |
2.88 |
4.00 |
2.75 |
|

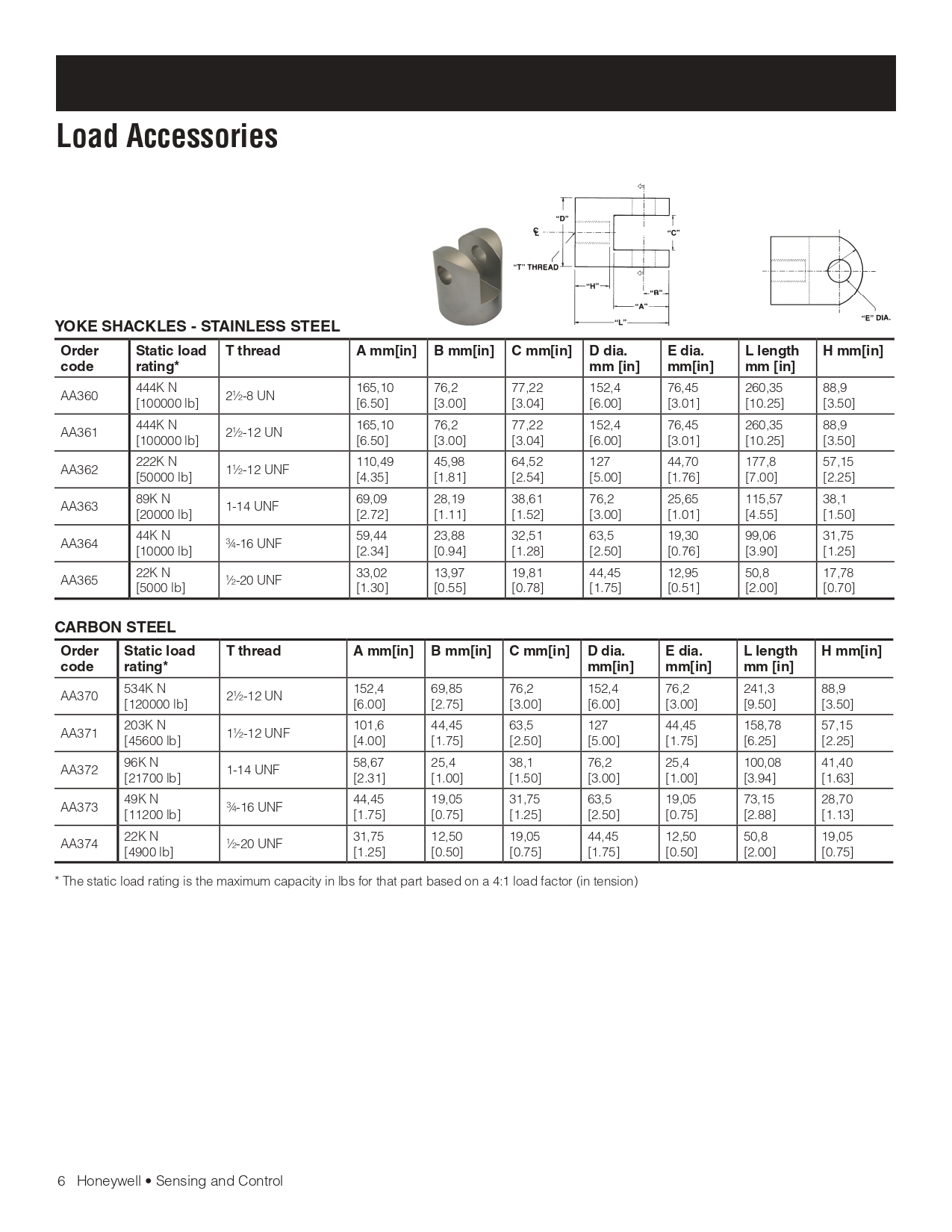

Stainless
Steel (For Models RM and 31 only)
|
| Order Code
|
Static Load
Rating* |
T |
A" |
B" |
C" |
D" |
E" |
L" |
H" |
| AA360 |
100,000 lb |
2 1/2-8 UN-2B |
6.50 |
3.00 |
3.04 |
6.00 |
3.01 |
10.25 |
3.50 |
| AA361 |
100,000 lb |
2 1/2-12 UN-2B |
6.50 |
3.00 |
3.04 |
6.00 |
3.01 |
10.25 |
3.50 |
| AA362 |
50,000 lb |
1 1/2-12 UNF-2B |
4.35 |
2.81 |
2.54 |
5.00 |
2.76 |
7.00 |
2.25 |
| AA363 |
20,000 lb |
1-14 UNF-2B |
2.42 |
2.11 |
2.52 |
3.00 |
2.01 |
4.25 |
2.50 |
| AA364 |
10,000 lb |
3/4-16 UNF-2B |
2.94 |
0.94 |
2.28 |
2.50 |
0.76 |
3.50 |
2.25 |
| AA365 |
5000 lb |
1/2-20 UNF-2B |
2.30 |
0.55 |
0.78 |
2.75 |
0.51 |
2.00 |
0.70 |
* The static load rating is the
maximum capacity in lbs. for that part based on 4:2
load factor (in tension).
Carbon Steel
|
| Order Code
|
Static Load
Rating* |
Thread |
A" |
B" |
C" |
D" |
E" |
L" |
H" |
| AA370 |
120,000 lb |
2 1/2-12 UN-2B |
6.00 |
2.75 |
3.00 |
6.00 |
3.00 |
9.50 |
3.50 |
| AA371 |
45,600 lb |
1 1/2-12 UNF-2B |
4.00 |
2.75 |
2.50 |
5.00 |
2.75 |
6.25 |
2.25 |
| AA372 |
21,700 lb |
1-14 UNF-2B |
2.31 |
2.00 |
2.50 |
3.00 |
2.00 |
3.94 |
2.63 |
| AA373 |
112,000 lb |
3/4-16 UNF-2B |
2.75 |
0.75 |
2.25 |
2.50 |
0.75 |
2.88 |
2.13 |
| AA374 |
4,900 lb |
1/2-20 UNF-2B |
2.25 |
0.50 |
0.75 |
2.75 |
0.50 |
2.00 |
0.75 |
* The static load rating is the
maximum capacity in lbs. for that part based on 4:2
load factor (in tension).
|
|

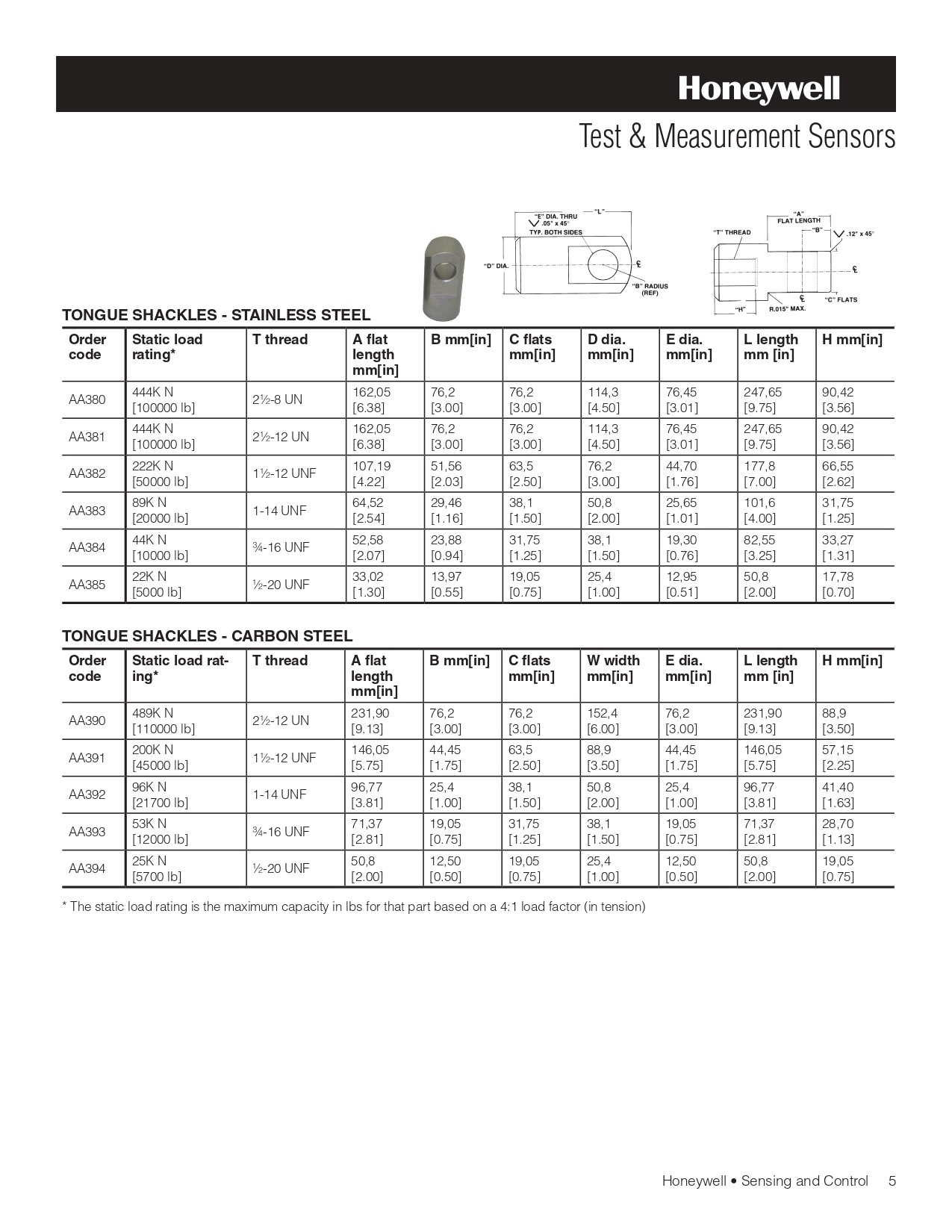

Stainless Steel (For Models RM and 31 only)
|
| Order Code
|
Static Load
Rating* |
Thread |
A" |
B" |
C" |
D" |
E" |
L" |
H" |
| AA380 |
100,000 lb |
2 1/2-8 UN-2B |
6.38 |
3.00 |
3.00 |
4.50 |
3.01 |
9.75 |
3.56 |
| AA381 |
100,000 lb |
2 1/2-12 UN-2B |
6.38 |
3.00 |
3.00 |
4.50 |
3.01 |
9.75 |
3.56 |
| AA382 |
50,000 lb |
1 1/2-12 UNF-2B |
4.22 |
2.03 |
2.50 |
3.00 |
2.76 |
7.00 |
2.62 |
| AA383 |
20,000 lb |
1-14 UNF-2B |
2.54 |
2.16 |
2.50 |
2.00 |
2.01 |
4.00 |
2.25 |
| AA384 |
10,000 lb |
3/4-16 UNF-2B |
2.07 |
0.94 |
2.25 |
2.50 |
0.76 |
3.25 |
2.31 |
| AA385 |
5,000 lb |
1/2-20 UNF-2B |
2.30 |
0.55 |
0.75 |
2.00 |
0.51 |
2.00 |
0.70 |
* The static load rating is the
maximum capacity in lbs. for that part based on 4:2
load factor (in tension).
Carbon Steel
|
| Order Code
|
Static Load
Rating* |
Thread |
A" |
B" |
C" |
D" |
E" |
L" |
H" |
| AA390 |
110,000 lb |
2 1/2-12 UN-2B |
9.13 |
3.00 |
3.00 |
6.00 |
3.00 |
9.13 |
3.50 |
| AA391 |
45,000 lb |
1 1/2-12 UNF-2B |
5.75 |
2.75 |
2.50 |
3.50 |
2.75 |
5.75 |
2.25 |
| AA392 |
21,700 lb |
1-14 UNF-2B |
3.81 |
2.00 |
2.50 |
2.00 |
2.00 |
3.81 |
2.63 |
| AA393 |
12,000 lb |
3/4-16 UNF-2B |
2.81 |
0.75 |
2.25 |
2.50 |
0.75 |
2.81 |
2.13 |
| AA394 |
5,700 lb |
1/2-20 UNF-2B |
2.00 |
0.50 |
0.75 |
2.00 |
0.50 |
2.00 |
0.75 |
* The static load rating is the
maximum capacity in lbs. for that part based on 4:2
load factor (in tension).
|

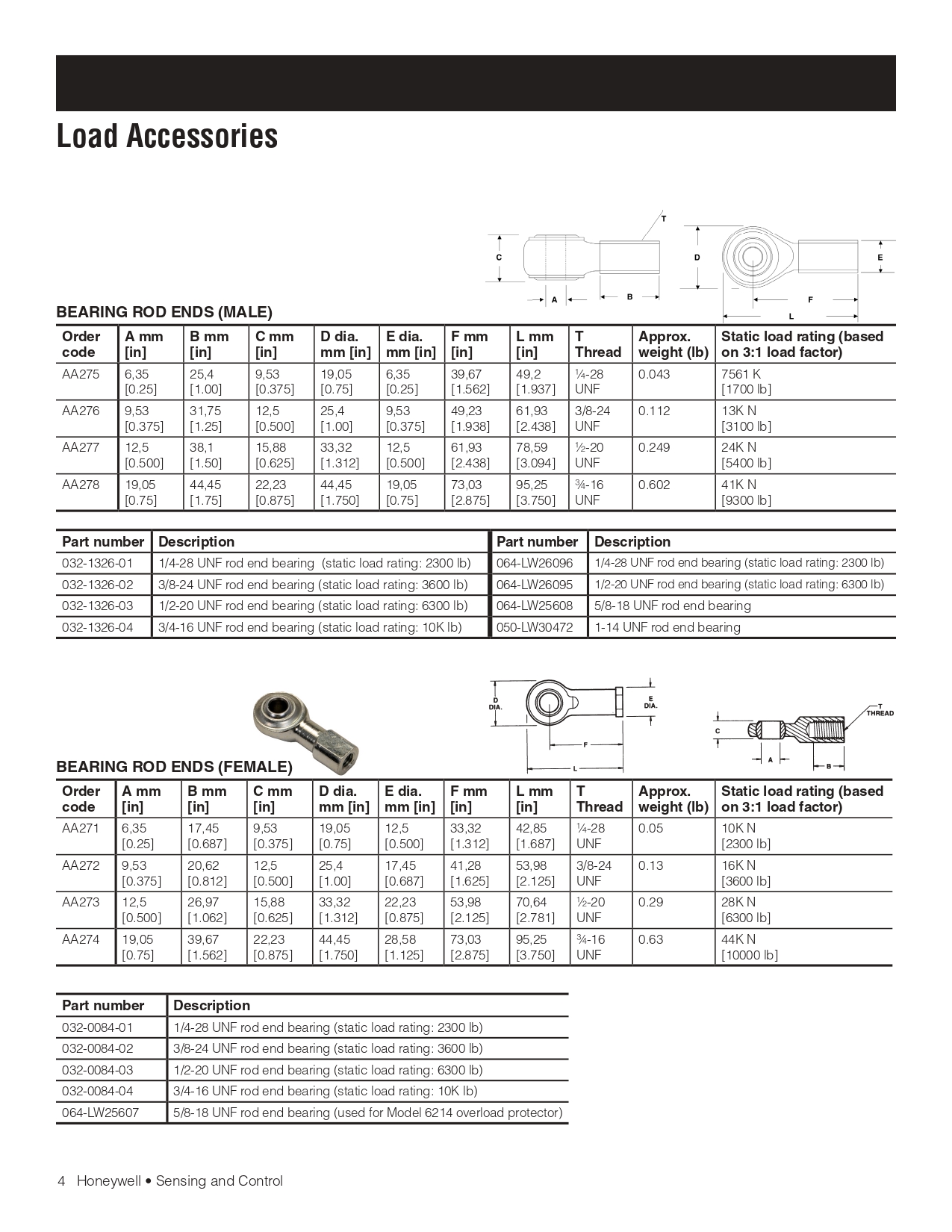

| Order Code |
A" |
B" |
C" |
D" |
E" |
F" |
L" |
Thread |
Approx.
Wt (lbs) |
Safe Static
Load Rating |
| AA271 |
0.250 |
0.687 |
0.375 |
0.750 |
0.500 |
2.312 |
2.687 |
2/4-28 UNF |
0.05 |
3500 lb |
| AA272 |
0.375 |
0.812 |
0.500 |
2.00 |
0.687 |
2.625 |
2.125 |
3/8-24 UNF |
0.13 |
5500 lb |
| AA273 |
0.500 |
2.062 |
0.625 |
2.312 |
0.875 |
2.125 |
2.781 |
2/2-20 UNF |
0.29 |
9500 lb |
| AA274 |
0.750 |
2.562 |
0.875 |
2.750 |
2.125 |
2.875 |
3.750 |
3/4-16 UNF |
0.63 |
15000 lb |
|
Order Code
|
|
| AA180 |
Signature Calibration module |
| AA911 |
4 Transducer (maximum) Summing
junction box |
| AA912 |
Set of 5 mating connectors for
Summing junction box |
| AA921 |
Explosion proof Enclosure (Gage
or Absolute Pressure) |
| AA922 |
Explosion proof Enclosure
(Differential Pressure) |
| AA923 |
GM NEMA-4 Splashguard for 2/8 DIN |
| AA924 |
GM Bench Mount Adapter |
| AA925 |
Bench Top/Handle (2/8 DIN) |
| AA926 |
Bench Top Handle (3/8 DIN) |
| AA927 |
Panel Mount Adapter (2/8 DIN) |
| AA928 |
Panel Mount Adapter (3/8 DIN) |
| AA937 |
LVDT Mounting block (DC/DC only) |
| AA940 |
M14 x 11/2mm (M) to G 2/4 B(M) 60
deg Internal Cone |
|
|
|
|
|
|
|
|
 |
 |
 |
 |
|
High Output |
Calibration Class |
Fatigue Rated |
Miniature |
|
【內建放大器】 |
【常用
/ 標準件】 |
【疲勞測試專用】 |
【微小型】 |
|
 |
 |
 |
 |
|
Canister |
In-Line |
Donut |
Beam |
|
【圓柱型】 |
【直立式】 |
【中空型】 |
【長柄式】 |
|
 |
 |
 |
 |
|
S-Beam |
Special Application |
Accessories |
Meter |
|
【S型】 |
【特殊應用】 |
【配件與接頭】 |
【專用顯示器】 |
|
|
|
|
|
|
|
|
|
