RC Model Reflectance
Compensated
|
Standard RC
Models |
Reflectance Compensated |

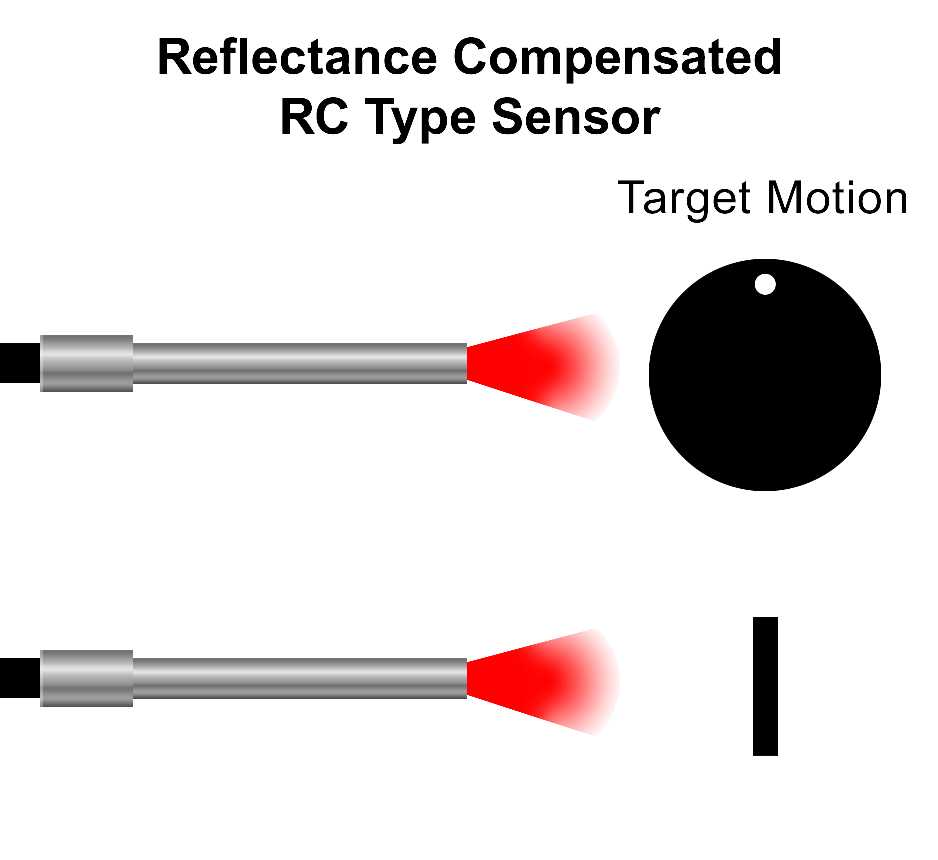

RC sensors have a positive
rising slope with increasing displacement. Unlike the D
models, they are single valued without the near side/far
side/optical peak regions. These sensors are suitable for
measurement applications involving static, moving or
rotating targets, or, for in-process parts gaging.
TIP
DETAILS
| |
|
<
|
<
|
<
|
< |
<
|
MODELS
|
>
|
>
|
>
|
>
|
>
|
| |
UNITS
|
RC12
|
RC25
|
RC20
|
RC60
|
RC62
|
RC63
|
RC100
|
RC140
|
RC90
|
RC171
|
RC190
|
|
A
|
m
|
.91
|
.91
|
.91
|
.91
|
.91
|
.91
|
.91
|
.91
|
.91
|
.91
|
.91
|
|
B
|
mm
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
15.9
|
15.9
|
|
B Ø
|
mm
|
6.35
|
6.35
|
6.35
|
7.14
|
7.14
|
7.14
|
6.35
|
7.93
|
7.93
|
7.93
|
7.93
|
|
C
|
mm
|
14
|
25.4
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
38.1
|
25.4
|
|
D
|
mm
|
3.18
|
7.14
|
0.81
|
2.1
|
7.14
|
7.14
|
3.18
|
7.93
|
7.93
|
4.77
|
7.93
|
|
Fiber Bundle
|
mm
|
0.305
x
1.57
|
0.64
x
3.175
|
Ø0.51
|
Ø1.52
|
1.57
x
3.18
|
1.57
x
3.18
|
Ø2.54
|
3.73
x
4.75
|
2.29
x
4.75
|
Ø4.34
|
4.83
x
4.75
|
NOMINAL
OUTPUT SPECIFICATIONS
|
FEATURES |
UNITS
|
RC12
|
RC25
|
RC20
|
RC60
|
RC62
|
RC63
|
RC100
|
RC140
|
RC90
|
RC171
|
RC190
|
|
Range
|
mm
|
0.5
|
0.76
|
1.3
|
3.2
|
2
|
4
|
5
|
10
|
9
|
12.7
|
21
|
|
Standoff |
mm
|
0.3
|
0.3
|
0.5
|
1.5
|
1
|
1.4
|
2.2
|
7.5
|
3.8
|
5.6
|
12.4
|
Linear
Range±1% |
mm
|
0.09
|
0.2
|
0.4
|
1
|
0.64
|
1.6
|
1.8
|
1.7
|
2.3
|
4.0
|
3.3
|
|
Sensitivity |
mv/µm
|
21
|
10
|
6
|
2.2
|
3
|
1.6
|
1.3
|
1.2
|
0.8
|
0.6
|
0.55
|
|
Resolution DC - 100Hz
|
micron
|
.08
|
.08
|
.25
|
.60
|
.25
|
.50
|
.75
|
.90
|
1
|
2.5
|
2.5
|
|
Resolution DC -20KHz (Std)
|
micron
|
0.3
|
0.3
|
1
|
1.8
|
1
|
2
|
3
|
3.6
|
4
|
7.5
|
7.5
|
|
Resolution DC-200KHz
|
micron
|
1
|
1
|
2
|
3.6
|
2
|
4
|
6
|
7.1
|
8
|
15
|
15
|
Operating Range
extends from 0 to the gap at which the
output is at full scale, 5 Volts.
Standoff equals the distance from the
target to the center of the linear operating range.
Resolution (microns) = Sensor
Noise(millivolts) / Sensitivity (mv/micron) x .
The standard sensor bandwidth is DC - 20KHz.
Standard RC sensor tips are
unthreaded.
Threaded tips can be provided with the minimum
thread sizes given here.
MINIMUM THREAD SIZES FOR
SENSOR TIPS
|
MODEL
|
UNIFIED THREAD
SIZES |
METRIC THREAD SIZES
|
| RC12
|
10-32 UNF
|
M5 x 0.8
|
| RC20
|
10-32 UNF
|
M5 x 0.8
|
|
RC21
|
10-32 UNF
|
M5 x 0.8
|
| RC25
|
1/4 - 28 UNF
|
M6 x 1
|
|
RC60
|
1/4 - 28 UNF
|
M6 x 1
|
| RC62
|
5/16 - 24
UNF |
M8 x 1.25
|
| RC63
|
5/16 - 24
UNF |
M8 x 1.25
|
| RC90
|
3/8 - 24 UNF
|
M10 x 1.5
|
| RC100
|
8 - 32 UNC
|
M5 x 0.8
|
| RC140
|
7/16 - 32 UN
|
M12 x 1.5
|
| RC171
|
5/16 - 24
UNF |
M8 x 1
|
| RC190
|
7/16 - 32 UN
|
M12 x 1.5
|
【型錄下載】
...... 12 x 62 mil fiber bundle, 0.51 mm range (0.020 inch)
【型錄下載】
...... 25 x 125 mil fiber bundle, 0.76 mm range (0.030 inch)
【型錄下載】
...... 20 mil diameter fiber bundle, 1.3 mm range (0.050
inch)
【型錄下載】
...... 60
mil diameter fiber bundle, 3.2 mm range (0.125 inch)
【型錄下載】
...... 62 x 125 mil fiber bundle, 2 mm range (0.080 inch)
【型錄下載】
...... 63 x 125 mil fiber bundle, 4 mm range (0.16 inch)
【型錄下載】
.... 100 mil diameter fiber bundle, 5.1 mm range (0.20 inch)
【型錄下載】
.... 140 x 187 mil fiber bundle, 10 mm range (0.40 inch)
【型錄下載】
...... 90 x 187 mil fiber bundle, 9 mm range (0.35 inch)
【型錄下載】
.... 171 mil dia. fiber bundle, 12.7 mm range (0.50 inch)
【型錄下載】
.... 190 x 187 mil fiber bundle, 21 mm range (0.825 inch)
|
