D Model Reflectance
Dependent
|
Standard D
Models |
Reflectance Dependent |

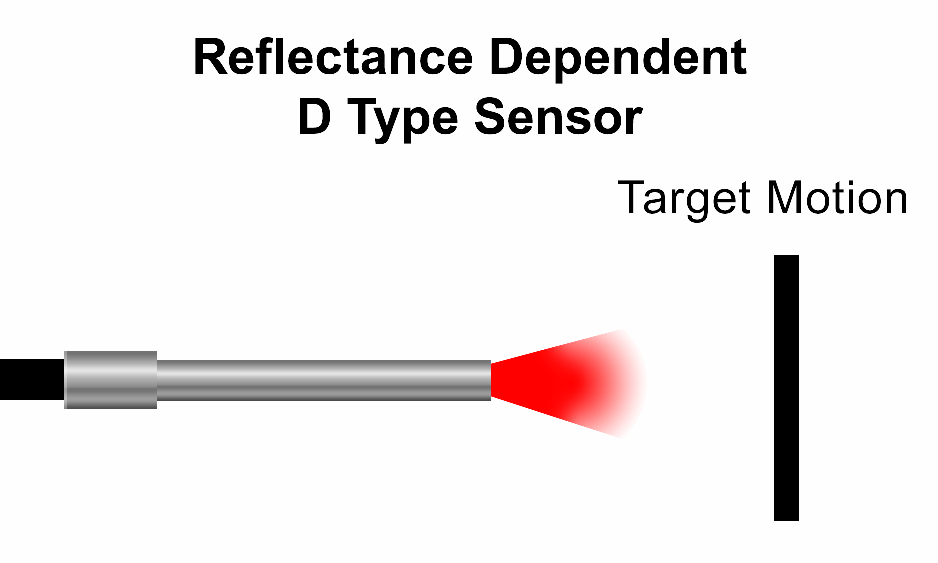

The output
voltage function for D model sensors includes a near side
region where the voltage rises with increasing distance, an
optical peak region, and a far side region where the voltage
output decreases with increasing distance. Operation in the
near side region gives high sensitivity with limited
operating range. Operation in the far side region gives
moderate sensitivity with greater operating range.
TIP
DETAILS
|
<
|
<
|
<
|
<
|
<
|
<
|
<
|
MODELS
|
>
|
>
|
>
|
>
|
>
|
|
FEATURES |
UNITS
|
D6
|
D12
|
D20
|
D21
|
D63
|
D64
|
D100
|
D125
|
D169
|
D170
|
D171
|
|
A
|
meters
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
0.91
|
|
A Dia.
|
mm
|
5.1
|
5.1
|
5.1
|
5.1
|
5.1
|
5.1
|
5.1
|
5.8
|
6.6
|
6.6
|
6.6
|
|
B
|
mm
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
12.7
|
15.2
|
15.2
|
15.2
|
|
B Dia.
|
mm
|
6.35
|
6.35
|
6.35
|
6.35
|
6.35
|
6.35
|
6.35
|
6.35
|
7.87
|
7.87
|
7.87
|
|
C
|
mm
|
38.1
|
38.1
|
38.1
|
38.1
|
76.2
|
76.2
|
76.2
|
76.2
|
76.2
|
76.2
|
76.2
|
|
D
|
mm
|
0.81
|
0.81
|
0.81
|
0.81
|
3.18
|
3.18
|
3.18
|
3.96
|
4.76
|
4.76
|
4.76
|
|
E
|
mm
|
0.16
|
0.51
|
0.51
|
.51
|
1.59
|
1.59
|
2.54
|
3.18
|
4.29
|
4.32
|
4.35
|
| ß
|
degrees
|
30
|
30
|
66
|
30
|
66
|
30
|
30
|
30
|
30
|
25
|
25
|
NOMINAL OUTPUT
SPECIFICATIONS
| |
UNITS
|
D6
|
D12
|
D20
|
D21
|
D63
|
D64
|
D100
|
D125
|
D169
|
D170
|
D171
|
|
RANGE
|
mm
|
1
|
2
|
1.3
|
2
|
3
|
6
|
10
|
15.2
|
20
|
30
|
50
|
|
OPTICAL PEAK
|
mm
|
0.23
|
0.23
|
0.13
|
0.28
|
0.15
|
0.3
|
0.43
|
0.48
|
0.56
|
1.0
|
9.6
|
| |
|
|
|
|
|
|
NEAR |
SIDE |
|
|
|
|
| |
|
D6
|
D12 |
D20
|
D21
|
D63
|
D64
|
D100
|
D125
|
D169
|
D170
|
D171
|
|
Standoff
|
mm
|
0.05
|
0.08 |
0.03
|
0.08
|
0.03
|
0.08
|
0.08
|
0.08
|
0.08
|
0.1
|
2.0
|
|
LinearRange ±1%
|
mm
|
0.04
|
0.05 |
0.02
|
0.03
|
0.02
|
0.04
|
0.04
|
0.05
|
0.06
|
0.06
|
1.9
|
|
Sensitivity
|
mv/micron
|
47
|
40
|
80
|
40
|
90
|
50
|
43
|
40
|
40
|
25
|
0.9
|
|
Resolution
DC - 100 Hz
|
nm
|
60
|
5
|
7
|
12
|
4
|
13
|
5
|
6
|
8
|
15
|
600
|
|
Standard Resolution
DC-20 KHz
|
nm
|
330
|
50
|
25
|
50
|
8
|
50
|
32
|
20
|
38
|
40
|
900
|
|
Resolution DC-200 KHz |
micron
|
1.2
|
0.1
|
0.05
|
0.1
|
0.015
|
0.1
|
0.15
|
0.04
|
0.1
|
0.1
|
2.5
|
| |
|
|
|
|
|
|
FAR |
SIDE |
|
|
|
|
| |
|
D6
|
D12 |
D20
|
D21
|
D63
|
D64
|
D100
|
D125
|
D169
|
D170
|
D171
|
|
Standoff
|
mm
|
0.43
|
0.53
|
0.3
|
0.7
|
0.66
|
1.1
|
2.0
|
2.1
|
2.5
|
4.8
|
15
|
|
Linear
Range
±1%
|
mm
|
0.23
|
0.48
|
0.25
|
0.4
|
0.76
|
1.4
|
2.5
|
2.9
|
3.5
|
6.4
|
6.1
|
|
Sensitivity
|
mv/micron
|
5
|
3
|
8
|
3
|
2.8
|
1.6
|
0.8
|
0.6
|
0.5
|
0.3
|
0.3
|
|
Resolution
DC - 100 Hz
|
micron
|
0.1
|
0.04
|
0.06
|
0.15
|
0.12
|
0.5
|
0.75
|
0.25
|
0.43
|
1.2
|
1.7
|
|
Standard Resolution
DC - 20 KHz
|
micron
|
1.3
|
0.4
|
0.25
|
0.6
|
0.3
|
1.0
|
1.5
|
1.1
|
1.5
|
2.5
|
3
|
|
Resolution
DC-200 KHz
|
micron
|
4
|
1.2
|
.5
|
1.3
|
0.55
|
2.0
|
3.0
|
1.5
|
3.8
|
6.4
|
10
|
Range
extends from 0 to the gap at which the
far side output voltage is down to 10% of full scale.
Standoff
equals the distance from the target to the center of the
linear operating range.
Resolution
(microns) = Sensor
Noise(millivolts) / Sensitivity (micron/mv).
The standard
sensor bandwidth is DC - 20KHz.
MINIMUM THREAD SIZES FOR
SENSOR TIPS
|
MODEL
|
UNIFIED THREAD
SIZES |
METRIC THREAD SIZES
|
| D6
|
6-32 UNC
|
M3 x 0.5
|
| D20
|
6-32 UNC
|
M3 x 0.5
|
|
D21
|
6-32 UNC
|
M3 x 0.5
|
| D63
|
8 - 32 UNC
|
M3 x 0.5
|
|
D64
|
8 - 32 UNC
|
M3 x 0.5
|
| D100
|
10 - 32 UNC
|
M5 x 0.8
|
| D125
|
1/4 - 28 UNF
|
M6 x 1
|
| D169
|
5/16 - 24
UNF |
M8 x 1.25
|
| D170
|
5/16 - 24
UNF |
M8 x 1.25
|
| D171
|
5/16 - 24
UNF |
M8 x 1.25
|
【型錄下載】 .........
6 mil fiber bundle, 40 mil (1 mm) range
【型錄下載】
.........
12 mil fiber bundle, 80 mil (2 mm) range
【型錄下載】
....... 20 mil fiber bundle, 50 mil (1.3 mm) range
【型錄下載】
........
20 mil fiber bundle, 80 mil (2.0 mm) range
【型錄下載】
....... 63 mil fiber bundle, 12 mil (3 mm) range
【型錄下載】
....... 64 mil fiber bundle, 240 mil (6 mm) range
【型錄下載】
..... 100 mil fiber bundle, 400 mil (10 mm) range
【型錄下載】
..... 125 mil fiber bundle, 600 mil (15.2 mm) range
【型錄下載】
..... 169 mil fiber bundle, 750 mil (20 mm) range
【型錄下載】
..... 170 mil fiber bundle, 1200 mil (30 mm) range
【型錄下載】
..... 171 mil fiber bundle, 2000 mil (50 mm) range
|
