壓力校正儀器

Combining heavy-duty construction and precision performance, the UPC5000 offers flexibility for a variety of pressure calibrating applications.

The compact 5000 includes a self-contained nitrogen cylinder and rechargeable battery, as well as all controls, hoses and connections required for rapid on-site calibration. A weight of less than 30 pounds makes this instrument truly portable. Whether your destination is a mountainside wellhead transmitter or your own standards lab, this system provides industry-leading convenience for calibrating transmitters, transducers, gages, and other pressure sensitive devices.

Each 5000 series model is equipped with an exclusive precision vernier that provides infinite control to secure the most accurate readings possible. Three independent selectable ranges provide accuracy within 0.05% up to 2000 psi. Readings appear on a large digital LED display, eliminating parallax, interpolation and operator error. Increased protection is provided by a self-relieving regulator that eliminates costly repairs due to inadvertent pressure overshoot.

Whether working in aircraft manufacturing, electric power supply, or general industry, the UPC5000 performs beyond the standard for accurate, on-site calibration.

【型錄下載】Download Catalog/Specs PDF files

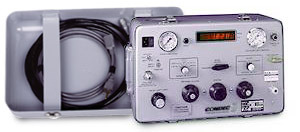

Designed for quick, convenient and accurate performance, the UPC5100 pressure calibration standard takes portability to a new level.

By incorporating self-contained pressure and vacuum sources, the 5100 eliminates the hassle of hauling around extra hoses and pumps. Everything required for immediate operation is right at your fingertips. Weighing less than 30 pounds, the 5100 is easily transported for on-the-go operation.

Each 5100 is equipped with five switch-selectable measurement ranges for vacuum and low-pressure applications from 27 inches Hg vacuum to 100 psi. The patented precision vernier control allows the operator to rapidly secure the most accurate pressure value possible. Increased protection is provided by a self-relieving regulator that eliminates costly repairs due to inadvertent pressure overshoot.

From aerospace, to health care, to general industry, the portable UPC5100 provides everything you need for fast, accurate calibration regardless where the job takes you.

【型錄下載】Download Catalog/Specs PDF files

Providing sophisticated performance in high-pressure applications, the durable UPC5200 is the most effective pressure calibration standard in its class.

The 5200 excels in applications presenting pressure levels up to 10,000 psi. Featuring automatic push-button calibration, this unit guarantees 0.05% accuracy in three switch-selectable ranges. The exclusive precision pressure vernier provides infinite control to obtain exact pressure readings, while a reliable overpressure regulator protects units under test from permanent damage.

The fully-pneumatic 5200 is powered by nitrogen and eliminates the mess and oil thermal equilibrium problems common to hand pump hydraulic systems. Clean operation design makes this calibrator ideal for use in aerospace, food and beverage, and general industry.

For special high-pressure applications, the UPC5200 provides the ultimate in dependable, high-precision performance.

【型錄下載】Download Catalog/Specs PDF files

The lightweight, yet durable hand-held Condec 3000 pressure calibrator is easy to carry and operates for more than 20 hours on a set of batteries. This unit is compatible with most liquids and gases, and is perfect for use with the Source 3000 portable pressure source.

Ensuring reliable, long-lasting performance, the Condec 3000 features a carrying case, sealed membrane keypad, and stainless steel internal pressure sensors. Multiple dual range high and low pressure models are available for applications up to 3000 psi. All ranges measure 0.05% of reading plus 0.002 psi for low pressure port and 0.02 psi for high pressure port, with 0.025% mA calibration.

【型錄下載】Download Catalog/Specs PDF files

The Condec 3000+ Pressure Calibrator is a versatile calibration instrument that combines advanced sensor technology with the latest developments in pressure instrumentation. It allows calibration and accurate testing procedures of pressure process instrumentation such as: pressure transducers and transmitters, switches, relief valves, analogue pressure gauges. Combined with Condec Source 3000, and related fittings, it becomes a complete calibration system to be used in the field. Between several functions, the Condec 3000+ allows you to use the calibrator as a TRX, using the scalable output option.

Condec DPDG Digital Pressure Dial Gauge

 Condec DPDG combines the accuracy of digital technology with the simplicity of an analog gauge, and achieves performance, ease-of-use, and a feature set unmatched in the pressure measurement world. Setup of the Condec Digital Pressure Dial Gauge is fast and straightforward. A menu-driven display with minimal text and intuitive functions, allows for simple operation anywhere in the world, without the need for multilingual displays.The availability of optional sanitary seals that meet 3A standards per specifi cations: 37-01, allows the gauge to be used in virtually any application. Combined with the Condec Source 3000, it becomes a simplified pressure calibrator.

【型錄下載】Download Catalog/Specs PDF files
