秤重顯示器
Condec digital
weight indicators
provide dependable solutions for a variety
of applications, from straight weighing to advanced
applications like automated batching, setpoint control and
draft weighing. Whether they're partnered with platform
scales or truck scales, Condec digital weight indicators
provide genuine quality and proven performance.

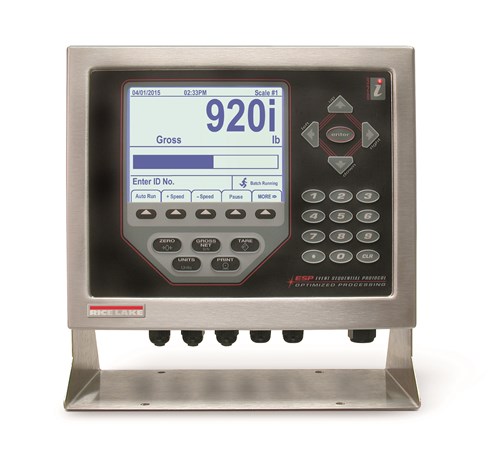

920i Series Programmable Weight Indicator and Controller
The 920i® weight indicator and process controller blends
revolutionary user interfaces, total flexibility and
processing performance with the simplicity of a basic weight
indicator. A crisp, highly customizable LCD graphical
display, programmable softkeys and industry recognized
electronics are surrounded by a virtually indestructible
enclosure to create one of the industry’s most trusted
weight indicators and process controllers.
Adding an entirely new dimension in flexibility for solution
providers and users alike, the 920i indicator/controller
brings simplified customization at a fraction of the cost of
traditional process instrumentation. From tailored basic
weighing to complex process automation, the 920i gives you
features, programmability and power for your process.
-
Customizable
backlit LCD graphical user interface
-
22 softkeys with 10 user-defined
keys
-
Tactile keypad for scale
operations, numeric entry and navigation
-
On-screen keyboard available
during entry mode (or external keyboard)
-
Supports 28 scales within five
different scale types:
-
Two to 14 option slots for
additional scale channels, serial ports, digital
inputs and outputs, analog outputs and protocol
interfaces
-
iRite™ Programming Software
-
Four serial ports supporting
RS-232, RS-485, 20mA
-
USB Type A and B replaces Serial
on Port 2 (USB model)
-
Alibi memory captures serial
port transmissions
-
Configurable data stream format
-
100 setpoints, 27 configurable
setpoint types
-
Six digital I/O for control
-
Four different enclosure types:
universal, deep universal, wall mount, panel
moun
【型錄下載】Download Catalog/Specs PDF files
|
