   壓力標準件  ●  DH - Budenberg - Pressure Test and Calibration

氣體/油壓式活塞壓力計

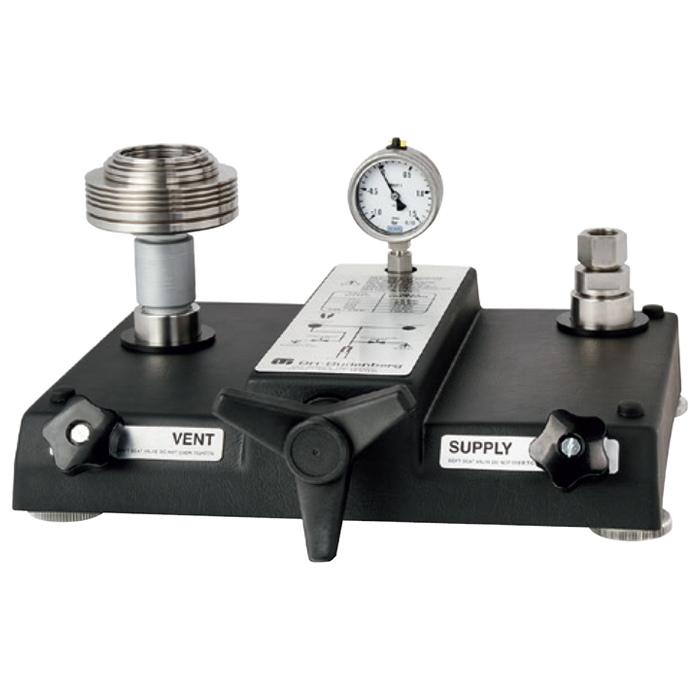

Model CPB3500重錘式氣壓計-真空&壓力

Pneumatic Dead Weight Testers

  • Total measurement uncertainty starting from 0.015 ... 0.006 % of reading

  • Five different piston-cylinder systems available for ranges ±1 bar, 0.1 ... 7 bar, 0.2 ... 25 bar, 1 ... 70 bar and 1 ... 120 bar, or also for ranges in psi and kPa

  • Stable aluminium base with a strong impact-resistant ABS cover for heavy industrial use combined with compact dimensions and light weight

  • Interchangeable pistons and mass sets for each model, mass sets manufactured from stainless steel

  • Factory calibration includes traceability to national standards, as standard; with UKAS calibration possible as an option

型錄下載Download Data Sheet

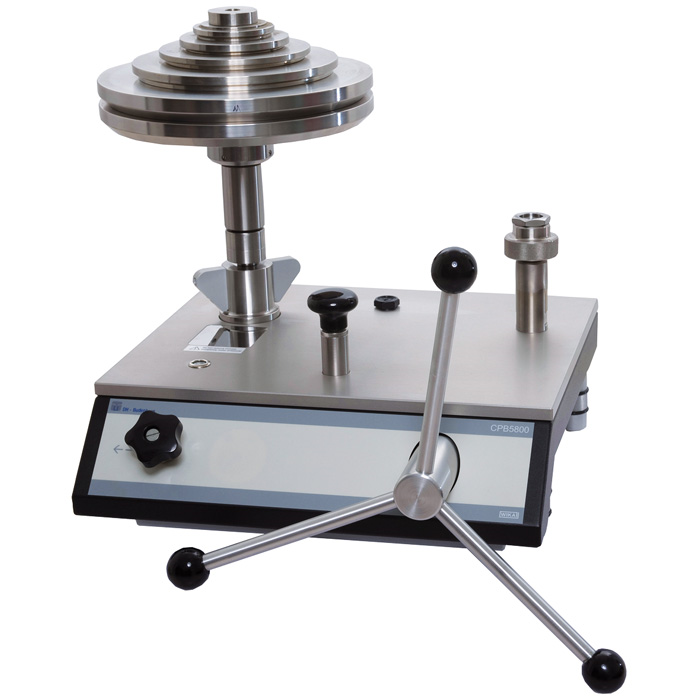

Model CPB5800重錘式液壓測試台

Hydraulic pressure balance

  • Total measurement uncertainty to 0.006 % of reading

  • Extremely flexible instrument with a wide range of single and dual-range piston-cylinder systems

  • Dual-range piston-cylinder systems with fully automated changing between ranges

  • Factory calibration includes traceability to national standards, as standard, with UKAS calibration possible as an option

  • Fast and safe replacement of the piston-cylinder system via patented ConTect quick-release system as an option

型錄下載Download Data Sheet

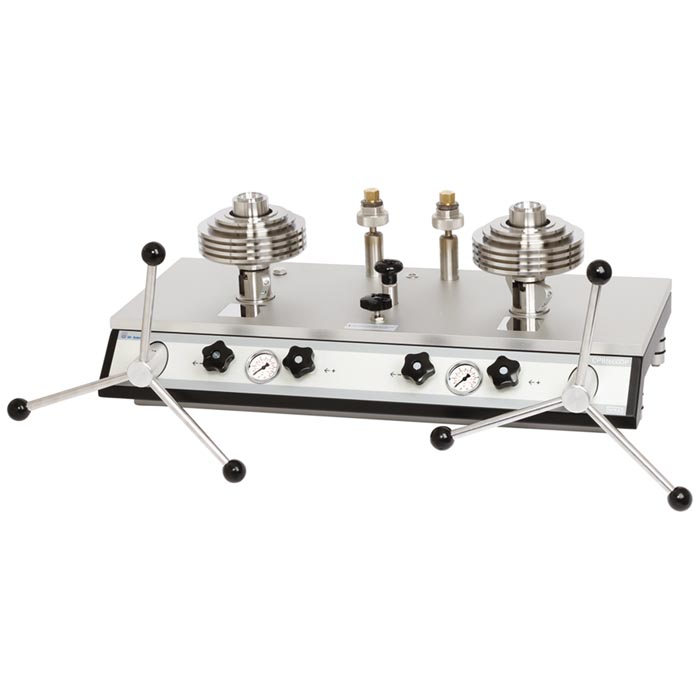

Model CPB5600DP

Differential pressure version

  • Measuring ranges (= static pressure + differential pressure) up to 400 bar (5,000 psi) pneumatic, up to 1,600 bar (23,200 psi) hydraulic

  • Total measurement uncertainty to 0.008 % of differential pressure plus 0.0001 % (1 ppm) of static pressure

  • Factory calibration included as standard, traceable to national standards; with DKD/DAkkS calibration possible as an option

  • High long-term stability with recommended recalibration interval every five years

  • Masses manufactured from stainless steel and aluminium, can be adjusted to local gravity

型錄下載Download Data Sheet

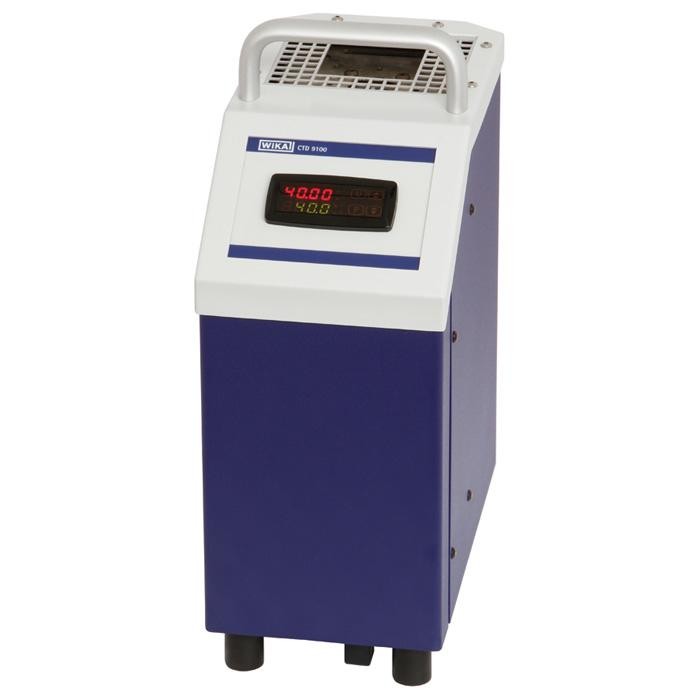

Models CTD9100-165 /-650

  • Different temperature ranges

  • CTD9100-165: -35°C...165°C

  • CTD9100-650: 40°C...650°C

  • Uncertainty 0,15 K up to 0,8 K

  • Compact design

  • User friendly

Applications

  • Simple on-site calibration

  • Power generation

  • Measurement and control laboratories

  • Machine building

型錄下載Download Data Sheet


Portable Pressure Calibrators Piston Gauges & Deadweight Testers
可攜式壓力校正儀 活塞式壓力計
