Micro-Measurements also
offers a variety of products designed to meet
special needs and perform special functions in
experimental stress analysis. These include:
Bondable Temperature
Sensors
With nickel-foil grids, these sensors are
used for general-purpose temperature
measurements over the range of -320 to +500°
F (-195 to +260° C).
Crack Detection Gages(裂縫偵測)
Convenient, economical method of detecting
cracks or crack growth.
Crack Propagation Gages
Multiple conducting grids on a single
backing accurately indicate the rate of
crack propagation.
Weldable Gages
Strain gages and temperature sensors bonded
to a metal carrier for spot welding to a
test structure when adhesive cannot be used
or minimum installation time is required.
Residual Stress(殘留應力)
Rosettes for the practical, widely used
hole-drilling method(盲孔法)
of residual stress determination.
Shear Modulus Gages
Special gages for accurately determining the
shear modulus of composite materials with
standard Iosipescu and Compact test
specimens.

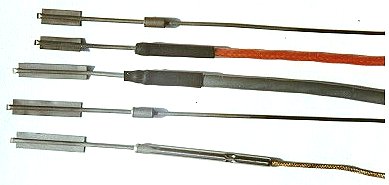

Embedment Strain Gages
Special strain sensors for embedding in
concrete.
|
|
All
Harsh Environment
Strain Gages feature either a
Platinum-Tungsten (PtW) or a Nickel-Chrome (NiCr)
filament sensing element encapsulated in a
321 Stainless Steel shell. The one process
fabrication of the shell makes the gage less
sensitive to the apparent strain due to the
non-homogenitiy of the different materials
forming the various parts. A unique filament
insulating process which enchances the
insulation resistance to ground (IR) has
been implemented in the manufacturing of the
gage. The gages contain no organic material.
Extensive testing, calibration, and
compensation of all gages are done in the
plant by highly trained technicians using
state of the art equiptment. Each gage is
supplied with a data sheet that supports the
installation and use of the gage. |
 |
|
|
|
Specification
【應變計規格】 |
|
|
|
|
SL100P-H120 |
SL100N-Q120 |
SL100N-H120 |
SL100N-Q350 |
SL100N-H350 |
SF100M Series |
|
|
SL050P-H120 |
SL050N-Q120 |
SL050N-H120 |
SL050N-Q350 |
SL050N-H350 |
|
|
Resistance |
120
Ω |
120 Ω |
120 Ω |
350 Ω |
350 Ω |
120 /
350 Ω |
|
Gage Factor |
4.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
|
Rated Strain
Level |
6000 με |
20000 με |
20000 με |
20000 με |
20000 με |
10000 με |
|
Operating
Temperature |
-452 ℉~1200℉ |
-452 ℉~600℉ |
-452 ℉~600℉ |
-452 ℉~600℉ |
-452 ℉~600℉ |
-0 ℉~180℉ |
|
|
|
Cable Selection
【線材的選擇】 |
|
|
 We
use several different types of cables
including:
- Mgo
Insulated, Stainless Steel sheath
- Mgo
Insulated, Inconel 600 sheath
-
Fiberglass insulated, no sheath.
- Teflon
insulated, foil shielded, teflon
sheath
- Vinyl
insulated, ribbon cable
-
Fiberglass insulated, stainless steel
-
Fiberglass insulated, Inconel 600
- Vinyl
insulated, foil shielded, vinyl sheath
- Teflon
insulated, ribbon cable
|
|
