種類 |
型號 |
圖片 |
描述 |

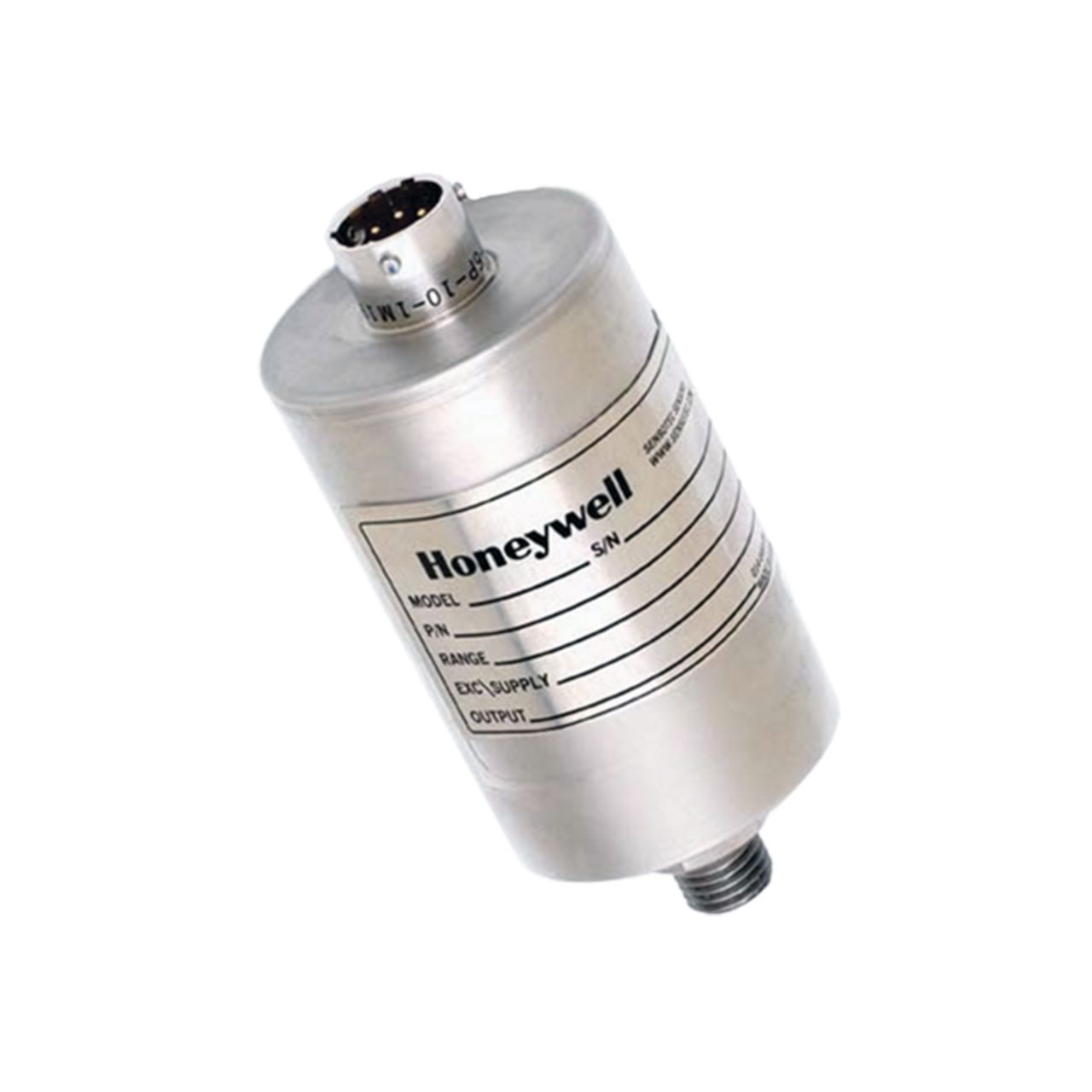

| Internally Amplified
Ultra High Precision |
SUPER
TJE |
 |
Precision pressure
transmitter; 0.05% Accuracy; 0-10 to 0-7,500 psi;
Exceptional Temperature Specs
【型錄下載】Download Data Sheet |

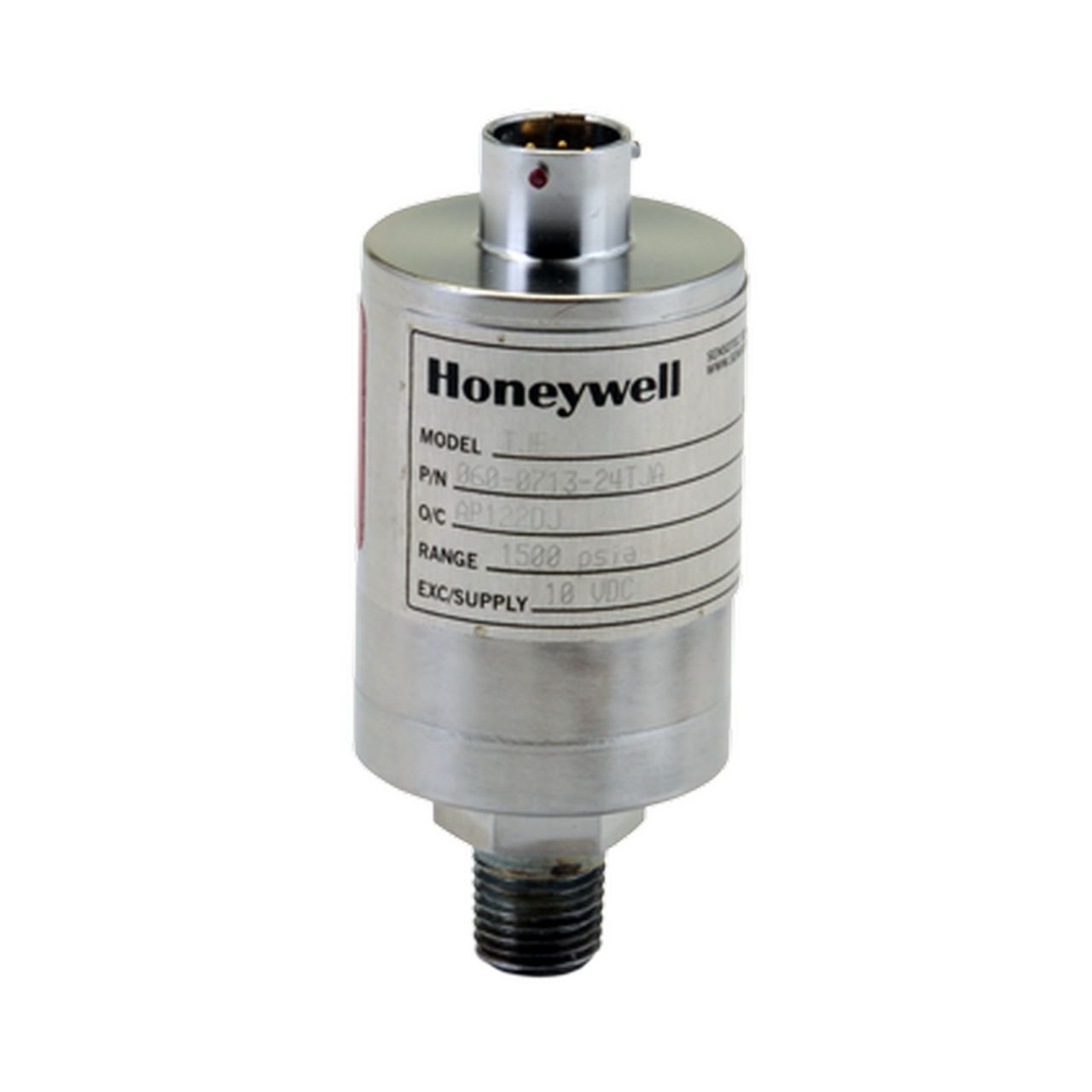

| Internally Amplified
High Precision |
TJE |
|
Precision pressure
transmitter; 0.10% Accuracy; 0-1 to 0-60,000 psi;
Rugged; Long Term Stability
【型錄下載】Download Data Sheet |

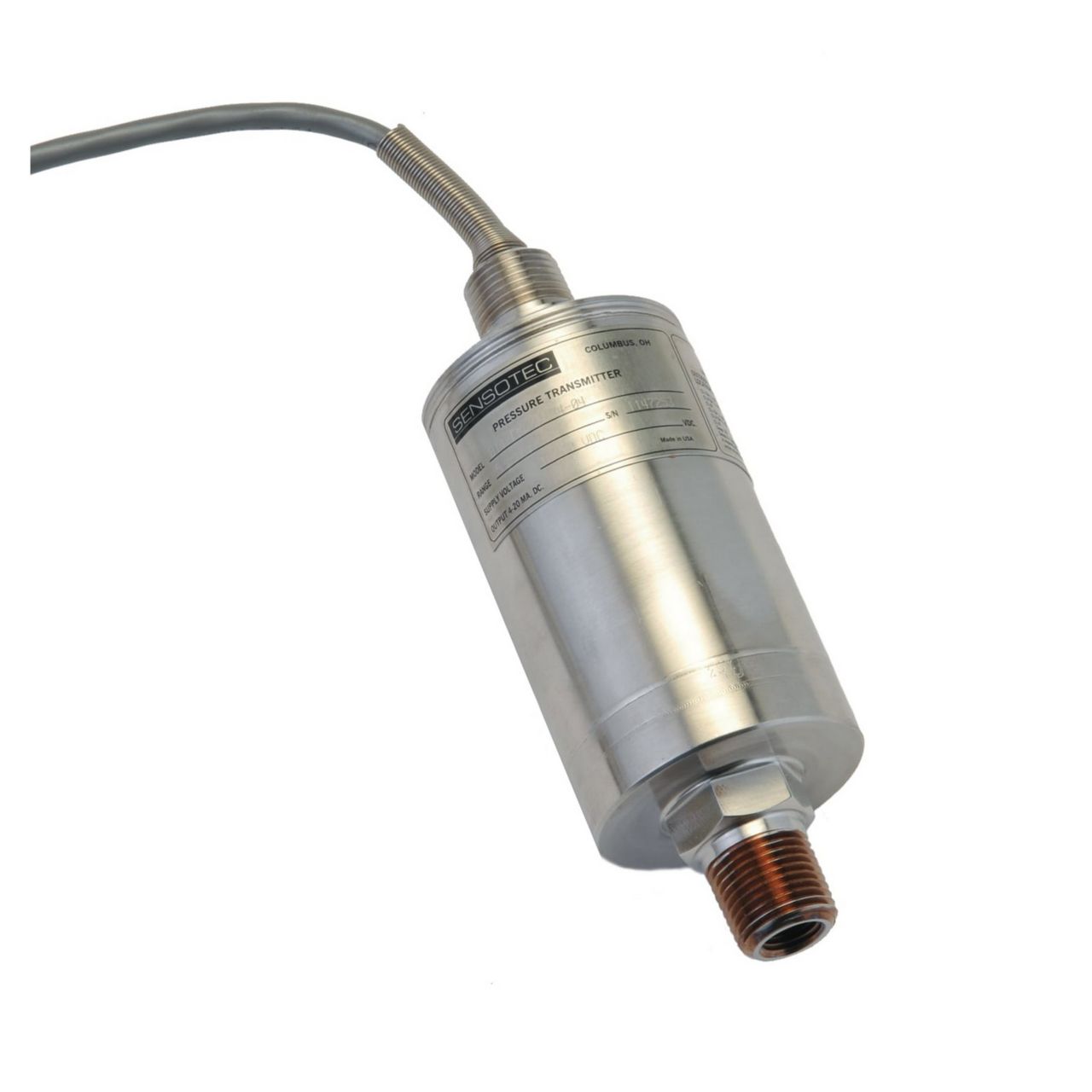

| Internally Amplified
Hazardous Locations |
811 |
 |
Hazardous location
pressure transmitter; Absolute & gauge Pressure;
0.25% Accuracy
【型錄下載】Download Data Sheet |
| Internally Amplified
Subminiature Flush
Diaphragm |
355 |
 |
General purpose
pressure sensor; 0.5% Accuracy; 0.5 to 30,000 psi
【型錄下載】Download Data Sheet |

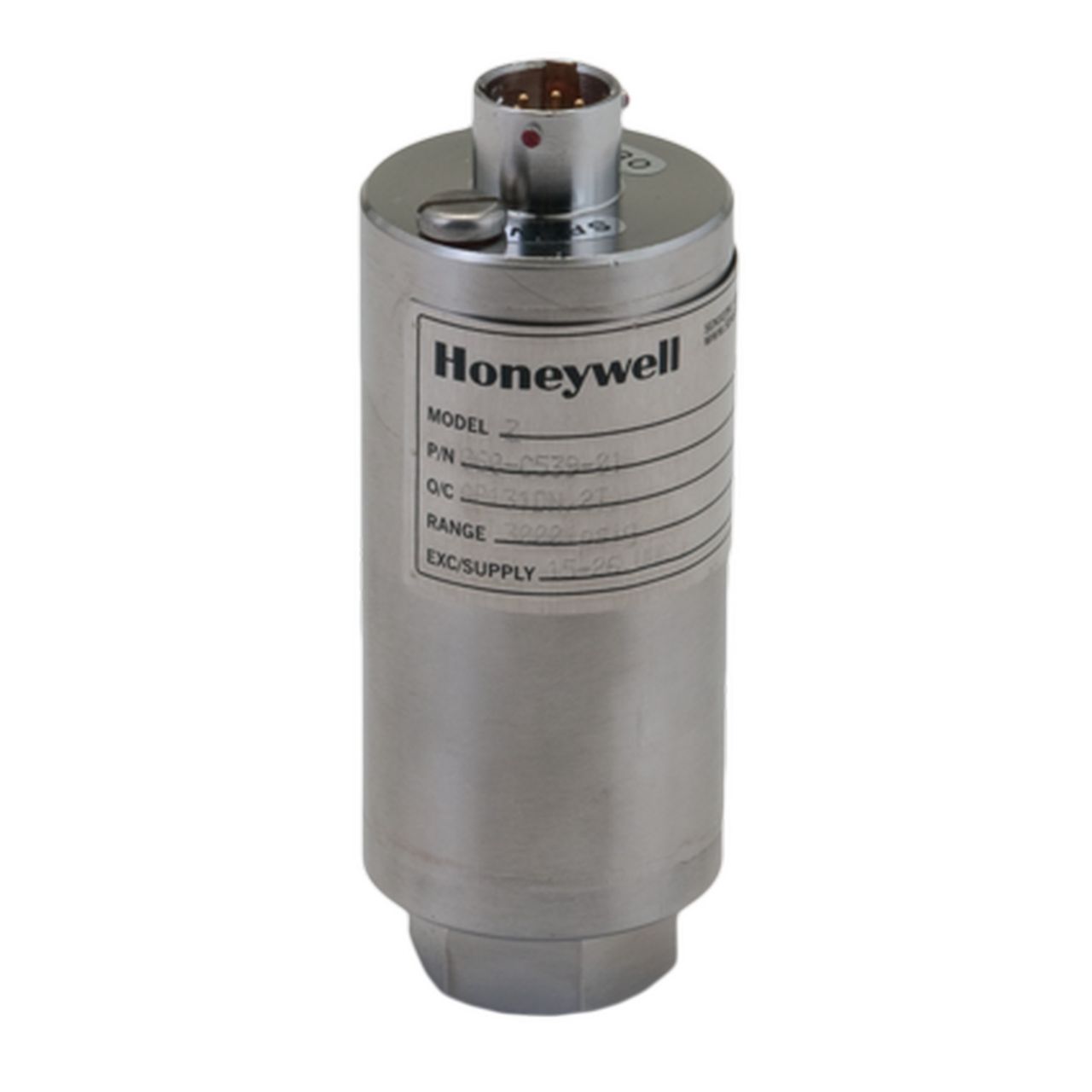

| Internally Amplified
General Purpose |
Z |
|
General purpose
pressure transmitter; 0.10% Accuracy including
temperature; 1200 Hz Analog Response; 380
Reading/Second Digital Output
【型錄下載】Download Data Sheet |
| Internally Amplified
General Purpose |
A-5 |
 |
General purpose
pressure transmitter; 0.5 to 30,000 psi
【型錄下載】Download Data Sheet |
| Internally Amplified
Oil Field/Wing Union |
424 |
 |
Wing union pressure
transmitter; 0.20% Accuracy; Intrinsically Safe;
Available in 1502 & 2202 2 inch wing union sizes
【型錄下載】Download Data Sheet |
| Internally Amplified
Oil Field/Wing Union |
425 |
|
Wing union pressure
transmitter; 0.20% Accuracy; Intrinsically Safe;
Available in 1502 & 2202 2 inch wing union sizes
【型錄下載】Download Data Sheet |
| Internally Amplified
Vacuum |
FP2000 |
 |
Quick delivery
pressure transmitter; 2 accuracies: 0.1% or 0.25%; 4
outputs: mV/V,5V,10V, or 4-20mA; 39 standard
pressure ranges; 6 different pressure ports; 3
electrical output terminations
【型錄下載】Download Data Sheet |
| Internally Amplified
Miniature Flush
Diaphragm |
A105a |
 |
Subminiature
pressure transmitter; High Level Output; 1-5V; 0.5%
Accuracy; Metric Thread
【型錄下載】Download Data Sheet |

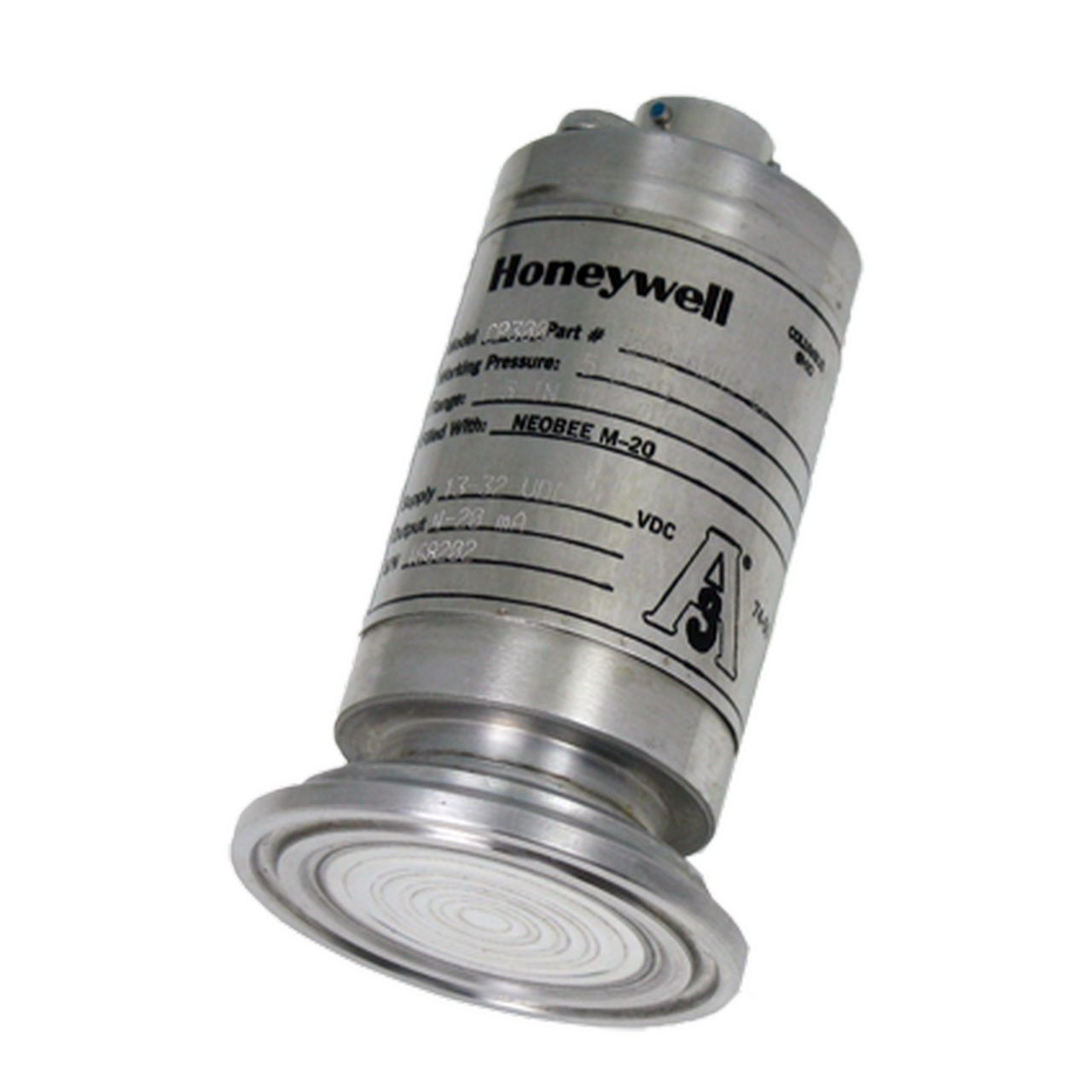

| Internally Amplified
Clean In Place |
CIP Ultra |
 |
Sanitary Process
pressure Transmitter; 0.1% Accuracy
【型錄下載】Download Data Sheet |
| Internally
Amplified, 2 Wire
Process Control |
415 |
 |
Pressure
transmitter;0.1% or 0.25% Accuracy; Ranges to 20,000
psi
【型錄下載】Download Data Sheet |
| Internally
Amplified, 2 Wire
Process Control |
440 |
|
Pressure
transmitter;0.1% or 0.25% Accuracy; Ranges to 20,000
psi
【型錄下載】Download Data Sheet |
| Internally
Amplified, 2 Wire
Process Control |
FP2000 |
|
Quick delivery
pressure transmitter; 2 accuracies: 0.1% or 0.25%; 4
outputs: mV/V,5V,10V, or 4-20mA; 39 standard
pressure ranges; 6 different pressure ports; 3
electrical output terminations
【型錄下載】Download Data Sheet |
Pressure Sensor Applications
