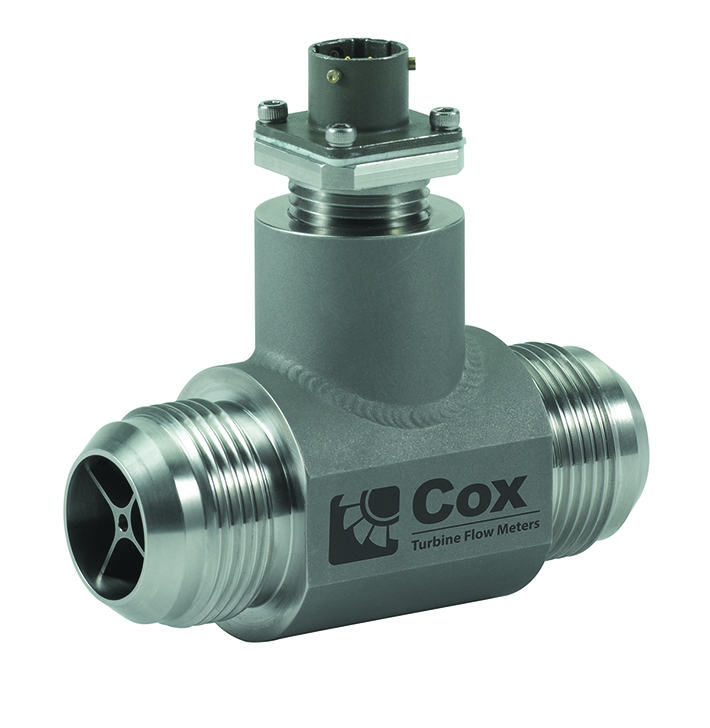

Dual rotors

Helical Rotor Design

High-performance ceramic ball bearings

Extended UVC range

High shock design

NVLAP* (Lab Code 200668-0) accredited facility with NIST traceable standards

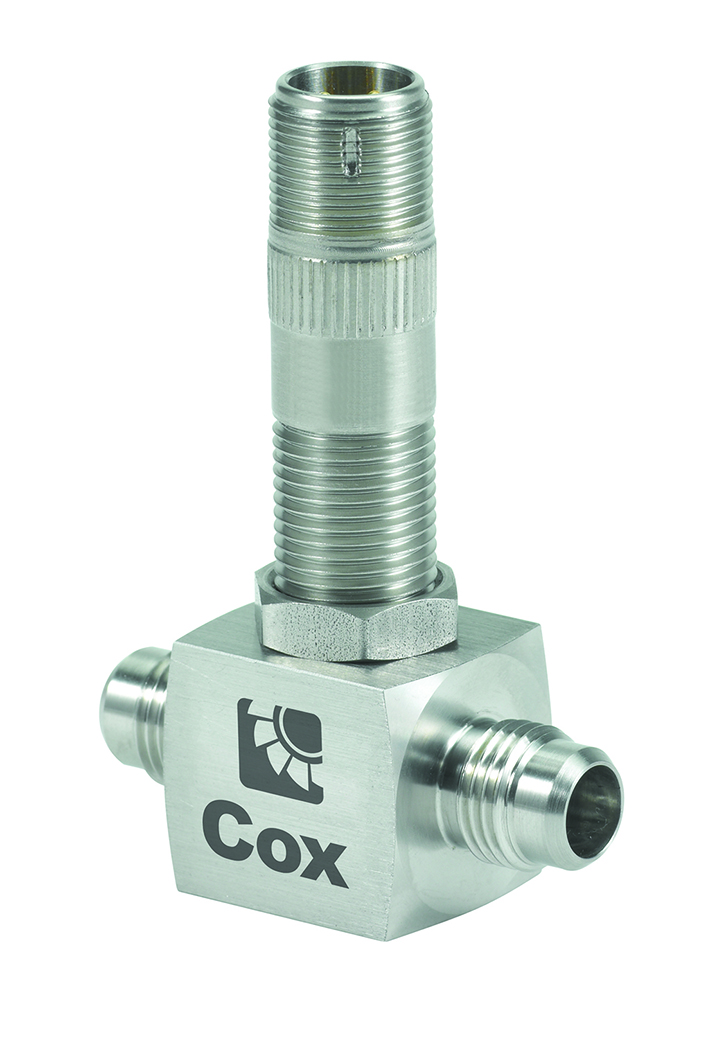

Expanded mechanical linearity

Comprehensive pickoff selection

High-performance ceramic ball bearings

6-bladed rotor supports

A variety of end fittings

NVLAP* (Lab Code 200668-0) accredited facility with NIST traceable standards

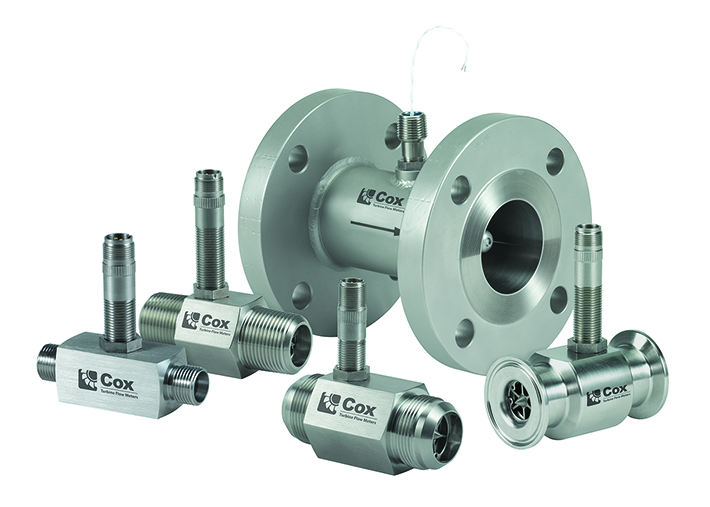

High performance ceramic ball bearings

Helical rotor design

NVLAP* (Lab Code 200668-0) accredited facility with NIST traceable standards

Comprehensive pickoff selection

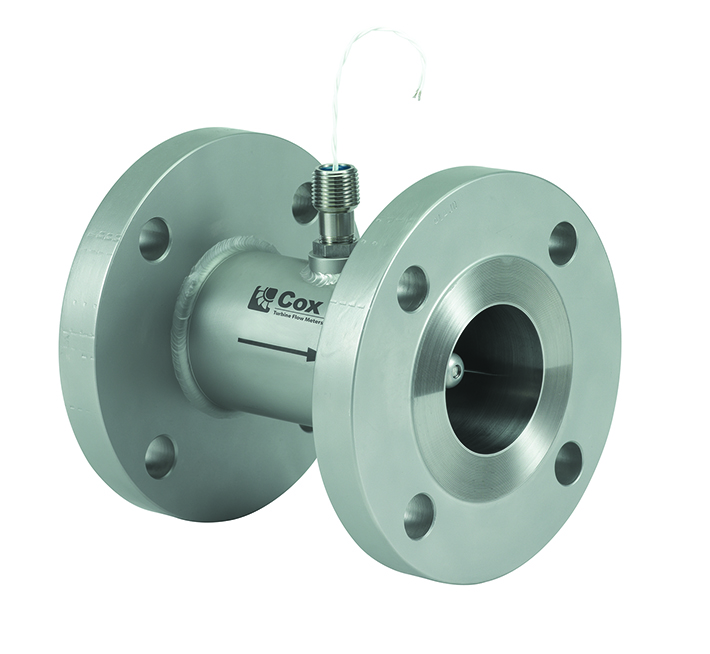

High-performance ceramic ball bearings

Three rotor designs

NVLAP* (Lab Code 200668-0) accredited facility with NIST traceable standards

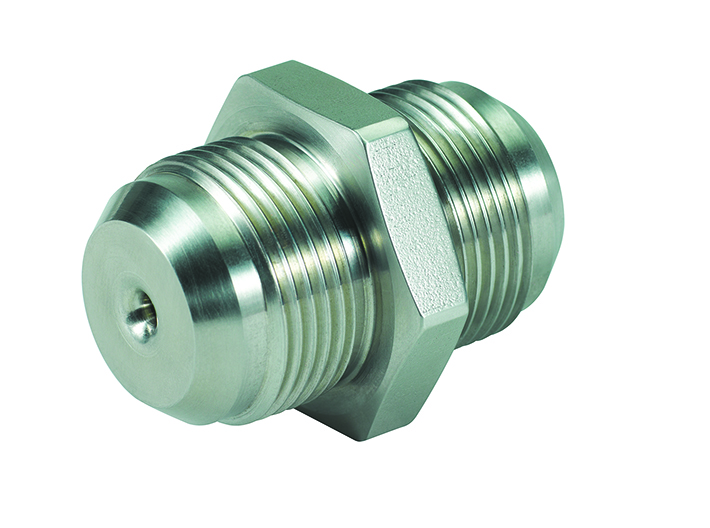

Secondary Gas Flow Standards

Calibration of Gas Flow Meters

Gas Flow Metering

Calibration of Turbine Engine Component Gas Passages

Calibration of Automotive Component Air Passages

Measurement of Automotive Induction Air

Valve CV Tests

EIA-232/485 Serial Communication

Multiple Isolated Outputs

10 Selectable Fluid Tables

Precision Temperature Compensation Methods

Service/Test Mode

Batching

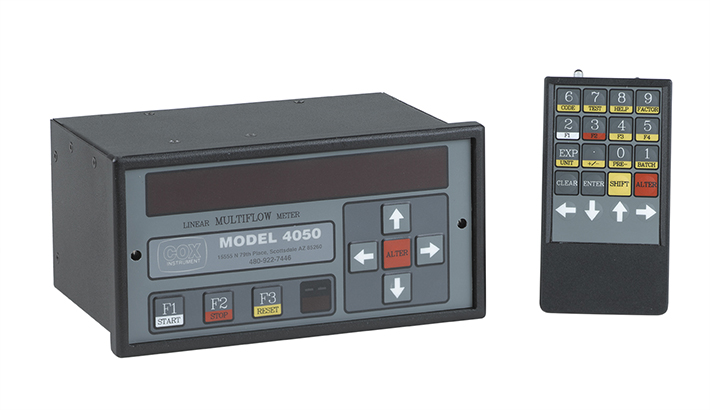

Monitor up to three independent flow sensorsMultiple Isolated Outputs

Provide automatic switching for manifold applications

Select mass or flow rate display via unique hand-held remote or front panel key pad

Provides temperature compensation with RTD Input

Offers RS485 communications port for PC interface

User friendly data entry and setup

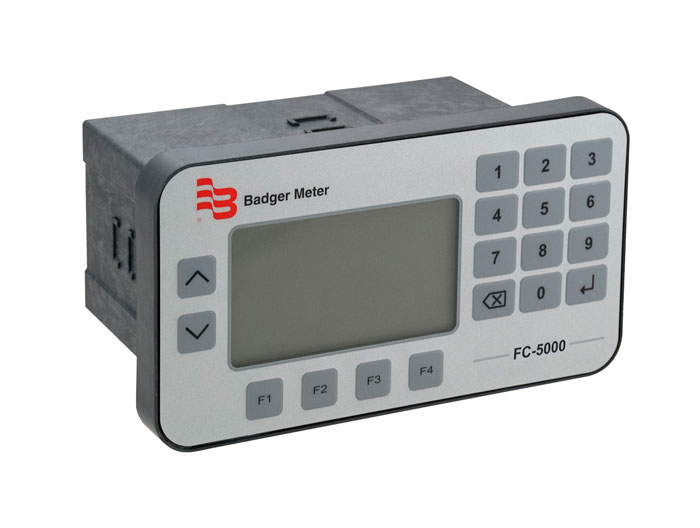

Large, Backlit Graphical Display

Integrated Softkeys and Full Numerical Keypad

100 Point Linearization

Sensor Data Display

Plug-and-Play Terminals

User Programmable Relay Configuration

User Programmable Scaled Outputs

Robust Enclosure, Keypad and Mechanical Relays

Replaces Cox 4010/4020 Flow Computers

Conformance to SAE ARP 4990 calculations

Less than 1 mS response

Blade averaging to enhance low flow resolution

Integral temperature and pressure amplifier

Multiple outputs (freq, analog, RS485)

Roshko and Strouhal correlation, using 16-bit resolution

Configurable interface software allows fluid selection configuration of outputs and data logging
　

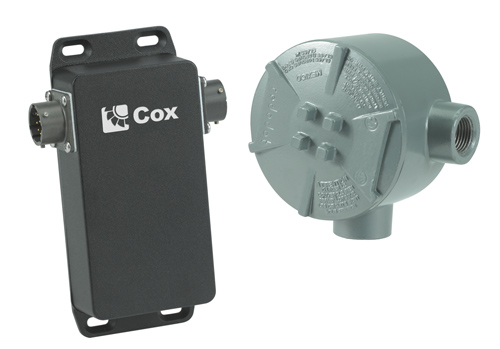

Rotor blade pulse averaging

Strouhal-Roshko computation, using 16-bit resolution

Dual outputs provide both frequency and analog signals

Recallable and stored calibration data

Internal amplifier and signal conditioners

Assignable outputs
