渦輪式流量計 ●
Cox - Flow Meter ●
|
|
|
|
|
|
|
|
 |
-

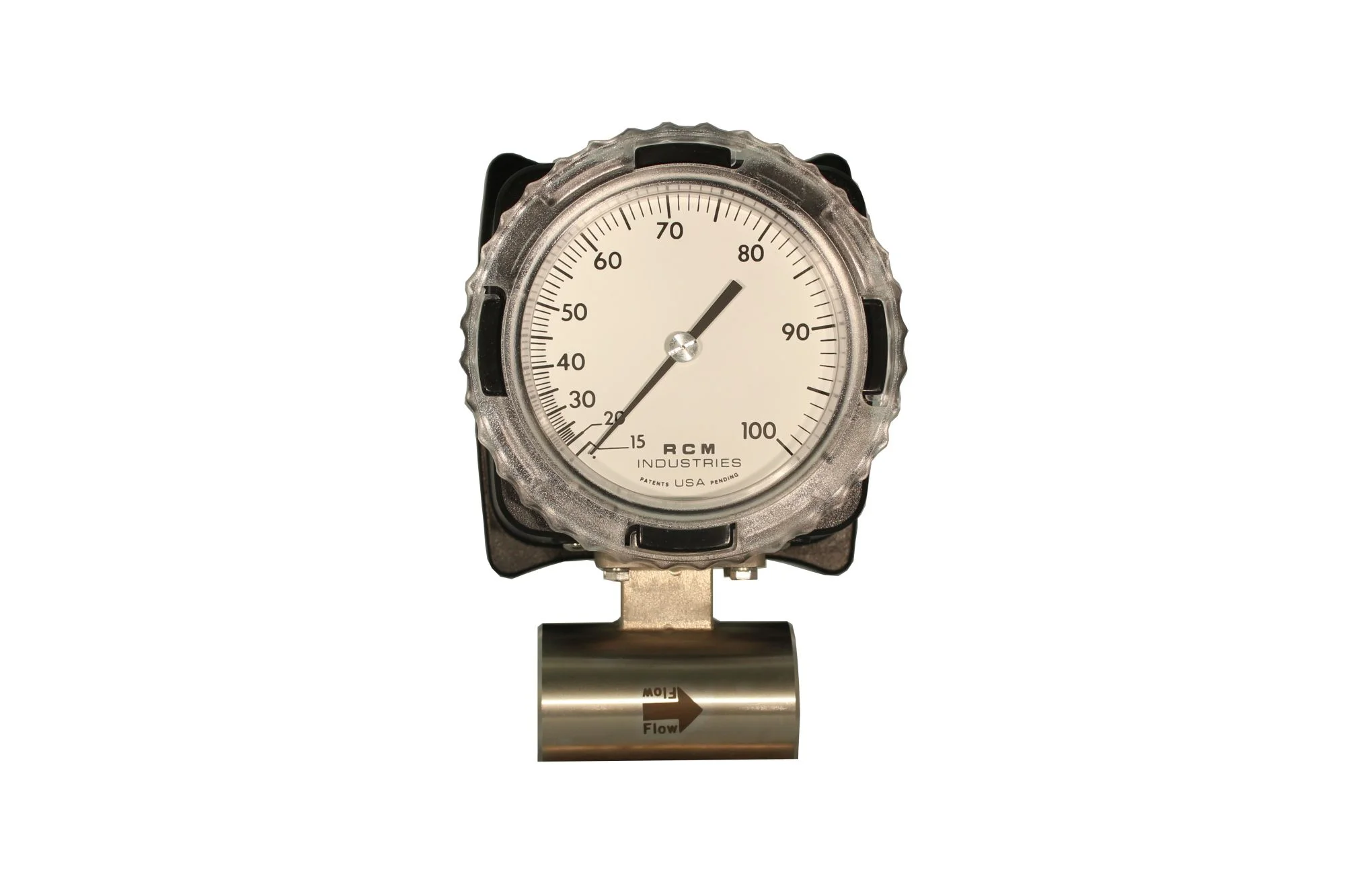

3.5” (90mm) 270°
analog dial for reading at a glance
-
Measures 6:1 range with ±
3% F.S. accuracy
-
Dial and case factory
configured for quick installation – but easily field
re-configured if needed
-
Gas flow ranges from 40
SCFH (1 Nm³/h) in 1/2” flow meter to 20,000 SCFM (600
Nm³/m) in 8” flow meter.
|
|
|
 |
-
Displays instantaneous
flow rate, total and accumulated total
-
Large LCD 17mm (0.67”) and
8mm (0.31”) for flow rate and total
-
Scaled pulse output
according to accumulated total
-
Gas flow ranges from 40
SCFH (1 Nm³/h) in 1/2" flow meter to 20,000 SCFM
(600Nm³/m) in 8” flow meter.
|
|
|
 |

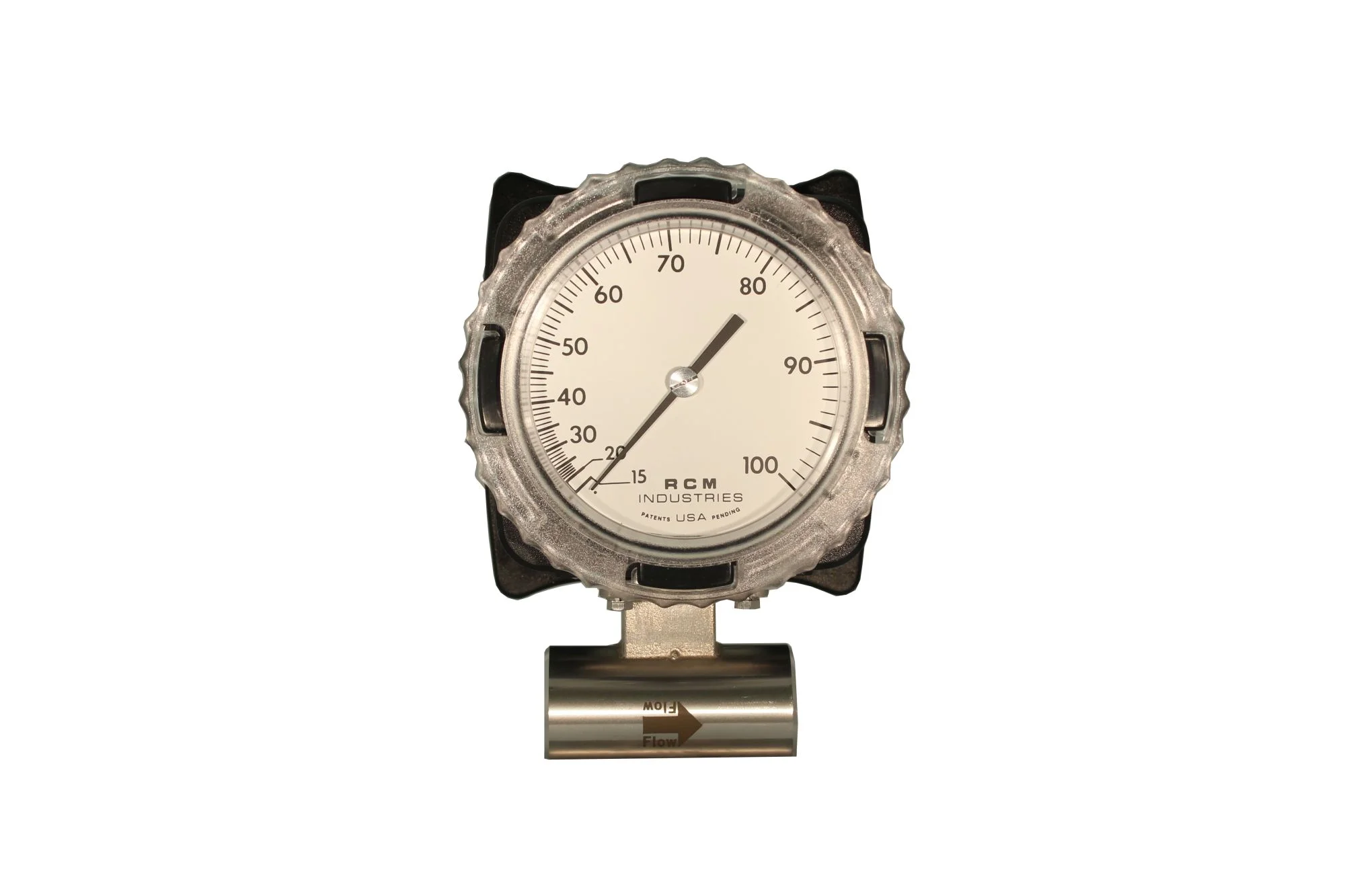

Ammonia gas flow
meters are used in distillation plants and as a
cooling agent all stainless steel construction
to withstand the harsh environment. EPR seals
and gasketed case are standard features for
additional protection. The flow meter has been
developed for industrial applications where
durability and reliability are important
considerations in the monitoring of flow.
|
|
|
 |
-
Suitable for use with
opaque and clear fluids.
-
Liquid flow ranges from 4
GPH (15 l/h) in 1/2” flow meter to 3000 GPM (12000 l/m)
in 8” flow meter.
-
Gas flow ranges from 40
SCFH (1 Nm³/h) in 1/2" flow meter to 20,000 SCFM
(600Nm³/m) in 8” flow meter.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
